How I Got Started

Snow gun 01 is more like a modern snow gun that is used today at many resorts. The design is that of an air/water gun. The design uses a simple T. The water enters from the base of the T and the air enters from one end of the top of the T. Then the mix of air and water goes out through the nozzle mounted on the other end of the T.

This gun uses:
1 - 1/4 inch ball valve
1 - 1/2 inch gate valve
1 - 90 deg. elbow
1 - 1/2 inch T
2 - 1/2 X 2 inch pipes
1 - 1/2 X 3 inch pipes
1 - 1/4 X 4 inch pipe
1 - 1/4 to 3/8 inch adp.
1 - 3/8 to 1/2 inch adp.
1 - female hose to 1/2 inch male adapter
1 - 1/2 inch pipe to male hose adapter
1 - garden sprayer

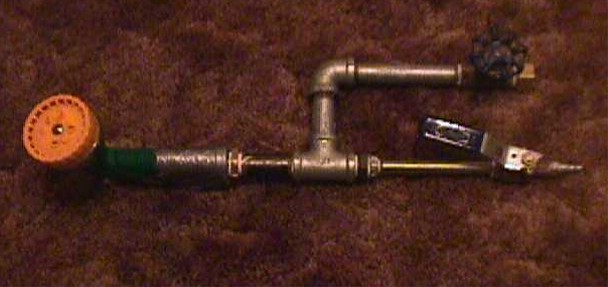

Click on the image for a larger view.
