The reason there is a differentiation between a manual and automatic transmission is whether or not the shifting hand is going to hit the bottom of the Streamer Cradle.

Parts Used:

  Part Number Description
1 75103-599 BMW 323i - 4dr Sedan 99-00
2 768 Extension Bracket, 4"
3 685-PM AMPS Tipper
4 675-BT Multi Media Mount Base and Top.

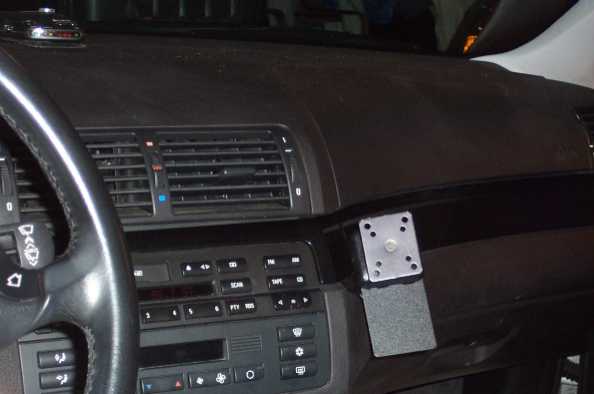

Installation of the Indash Bracket is very easy.

  1. Simply pry off the shiny molding.
  2. Using a 10 mm socket, take the nut off that is closest to the radio head unit.
  3. Place the Indash bracket over the hole and tighten the nut.
  4. Put the molding back on.

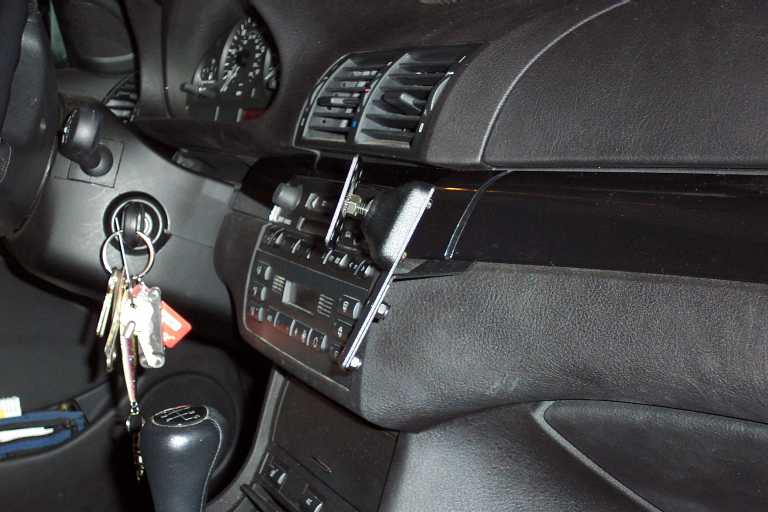

Frontal View Next Top

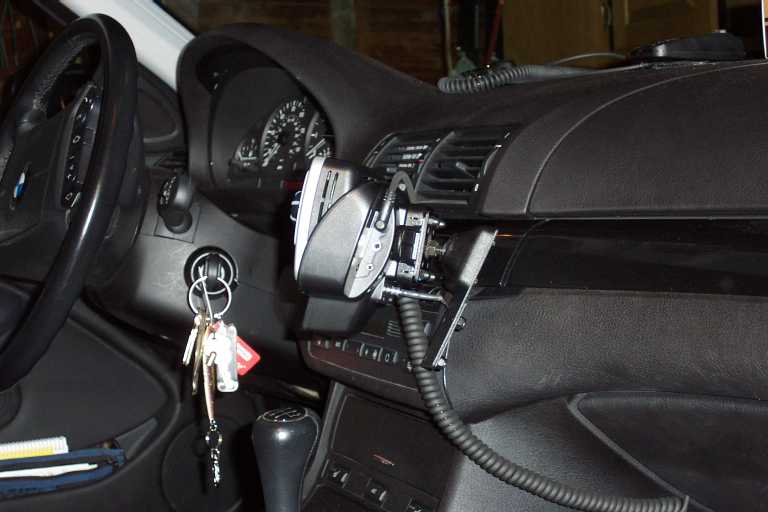

Side view Back Next Top

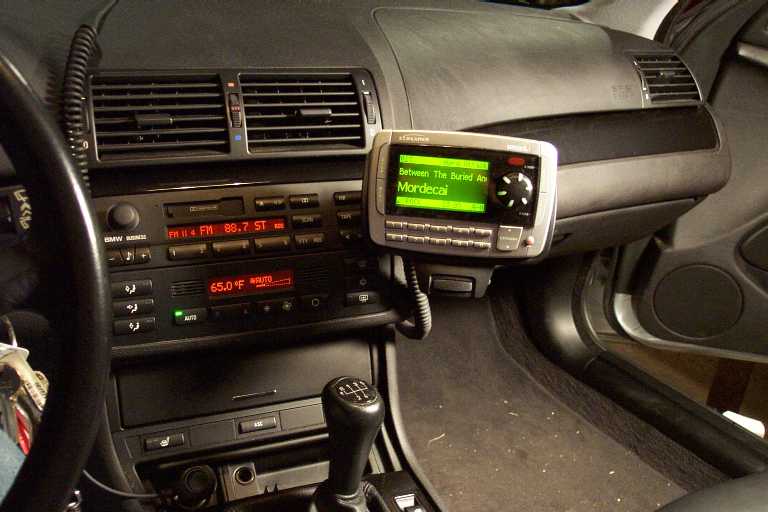

Streamer Cradle installed on AMPS with the MMM Base and Top. Pevious Next Top

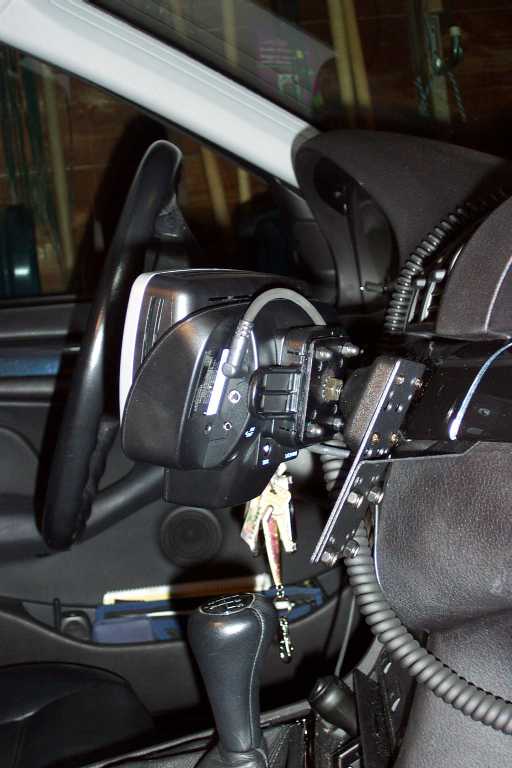

Close-up - the only visible wire is the power cord. Previous Next Top

Antenna cable is easily hidden by pushing between side molding on the console.

 Previous Next Top

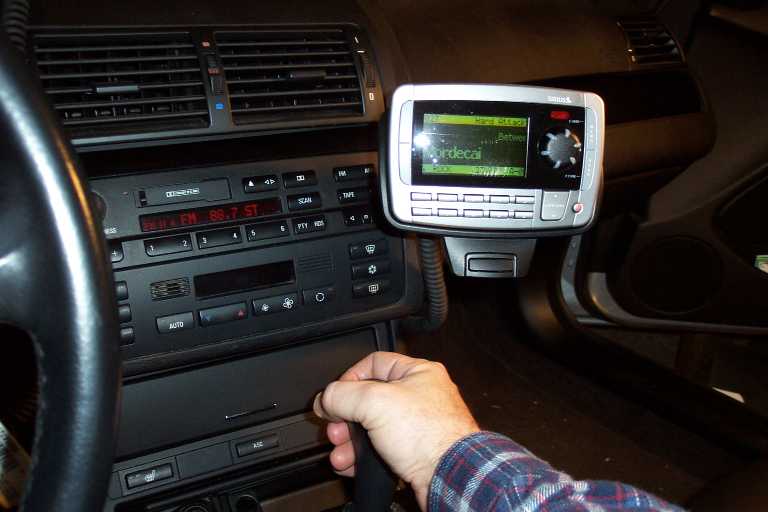

My hand has plenty of clearance under the cradle to shift into 5th gear.

 Previous Top
