Lost Foam Casting: Attempt #1
(9/18/2004)

When I first started pouring Aluminum with my homemade foundry, it was all greensand stuff.  This was primarily due to a coworker donating two 5-gallon buckets full of greensand he'd picked up somewhere.  However, my laziness and lack of patience got the better of me.  Making intricate wood patterns to pour a one-off casting was just too tedious.

A couple weeks back, I was doing some research on homemade CNC machines and ran accross this site:
www.buildyouridea.com.  This guy was pouring lost-foam castings using drywall mud to forma shell over the foam patterns.  This was a breakthrough for me.  I knew that big lost-foam operations used some sort of dip so they could use plain sand and keep it out of the aluminum.  I just hadn't figured out what would work as a homebrew dip!

On saturday, Bob and I farted around pouring some lost-foam castings to try out different things.  The drywall mud dip exceeded my expectations!  The surface finish was awesome!  This is exciting and you can expect to see more lost-foam castings from me in the near future!

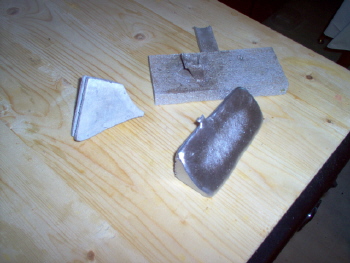

Castings from my first lost-foam pours.  The part ion the left was pink insulation foam with drywall mud dip.  The piece at the top was white styrofoam with no dip.  The piece in the foreground is an ingot cast in an angle-iron ingot mold.

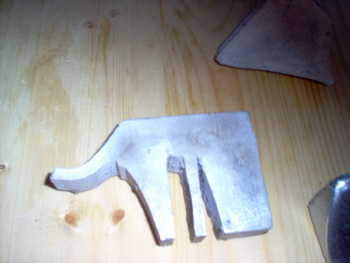

Another chunk done with pink foam and dip.  This was something we hacked out quickly to see how the process does with thin fingers.  The curved section is about 1/4" wide.  You can see the slight grooves from the pink foam on the part.
Links:
Foundry Home
Home
Contact Info:
Email:
[email protected]

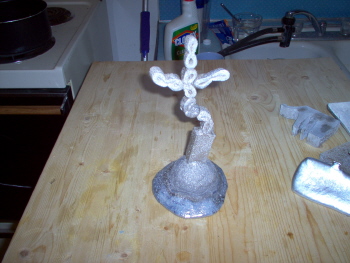

Is this art?  This was packing peanuts hotglued together in the shape of a cross. The sprue can be seen (square section).  The half-sphere was half of a styrofoam ball used to pour into.  The cross bent some in the sand before the pour.
