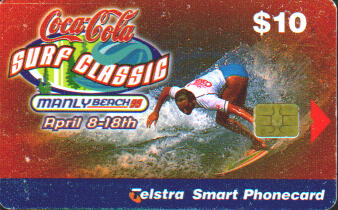

Ok thanks to a friendly site that is staying quiet at the moment the following link above was given to me on smartcards as I have no idea on what I am doing can some one help me ??

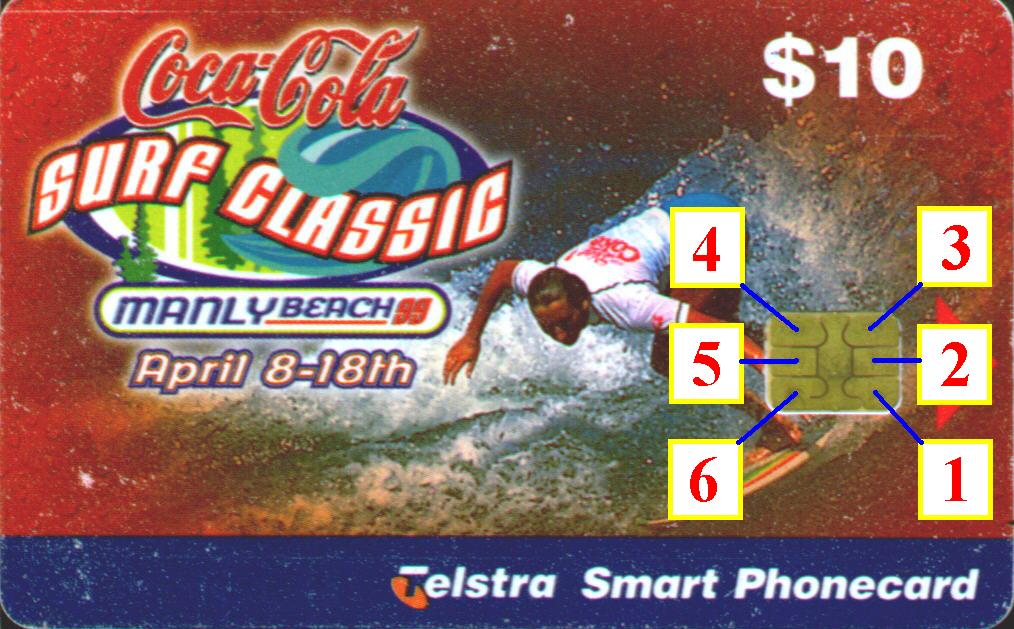

Ok as I can tell from the site the card is a ISO 7816 I think ?, and the pin's are as follow

PIN 1-BOTTOM RIGHT, PIN 2 - MIDDLE RIGHT, PIN 3 - TOP RIGHT

PIN 4 - TOP LEFT, PIN 5 - MIDDLE LEFT, PIN 6 - BOTTOM LEFT

PIN 1 - VCC, PIN 2 - R/W, PIN 3 - CLK, PIN 4 - I/O, PIN 5 - VPP, PIN 6 - GND

I have no idea if any of this info is right or not but it is a start

CLICK TO ENLARGE

This simple PC Smartcard reader was shown in Electronics Design magazine February 17, 1997 issue on page 172 in the ideas for design section. The circuit is designed by Jose Carlos Cossio and is based on simple smartcard reader design shown on the same magazine July 8, 1996. This circuit takes all smartcard operating power form PC parallel port. The basic circuit idea is quite similar to the simple smartcard reader shown in What you need to know about electronics telecards written by Stephane Bausson. There are some minor differences, which means that all the same software can't ne used

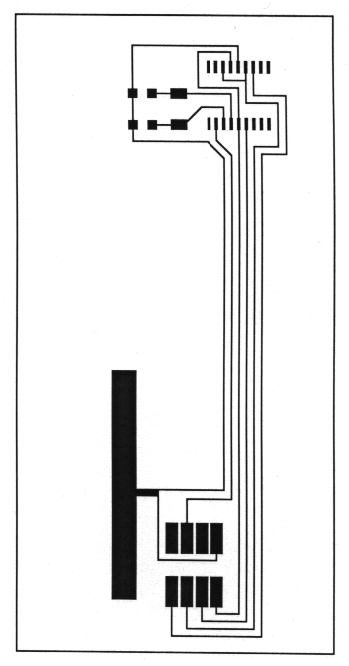

OK Here you go just found this from a link from the above site it mite help redid the pic my self as it was done in txt file. Click the pic to Enlarge.

Have no idea if it's work's

CLICK TO ENLARGE

Read this txt here to find out how - and download the files here

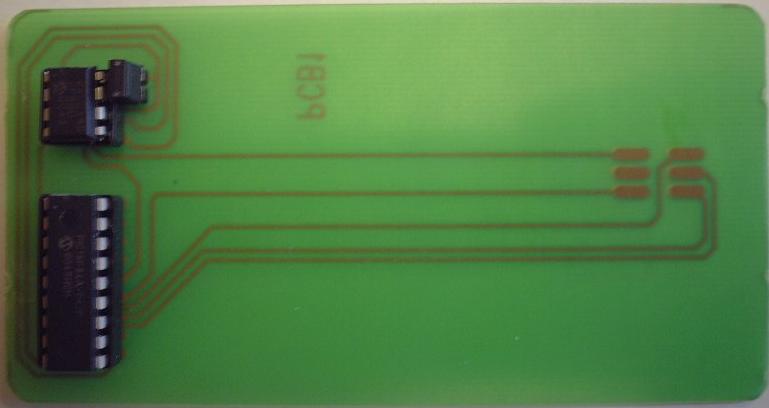

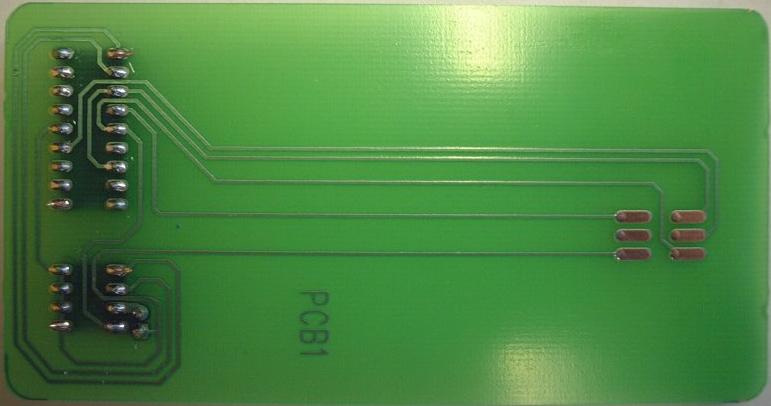

AGEN I HAVE NO IDEA IF THIS WILL WORK OR NOT GO LOOK AT Maxking Interfaces Limited AND MY SMARTCARD PAGE FOR MORE INFO.

WHEN I GET THE TIME AND THE MONEY I WILL TRY THIS PROJECT

CLICK TO ENLARGE

All so have a Telstra Smartcard MEMORY MAP and talk about it see the txt Hear
