Luke (ANH)

Thumbnail of Luke ANH sabre linked to full size blueprint

This is my first effort at creating a blueprint for building a replica Luke ANH Lightsaber.  I plan to revisit this plan sometime in the future as the overall length of the Lightsaber is inaccurate.  Please be aware that the overall length of the Lightsaber should be 10 5/8" not 12" as the plan indicates.

Luke (ROTJ)
Thumbnail of Luke ROTJ sabre linked to full size blueprint

Plans for a Luke ROTJ Lightsaber.

Vader (ANH)
Thumbnail of Vader ANH sabre linked to full size blueprint

Plans for Vader's Lightsaber from ANH.

Obi Wan (ANH)

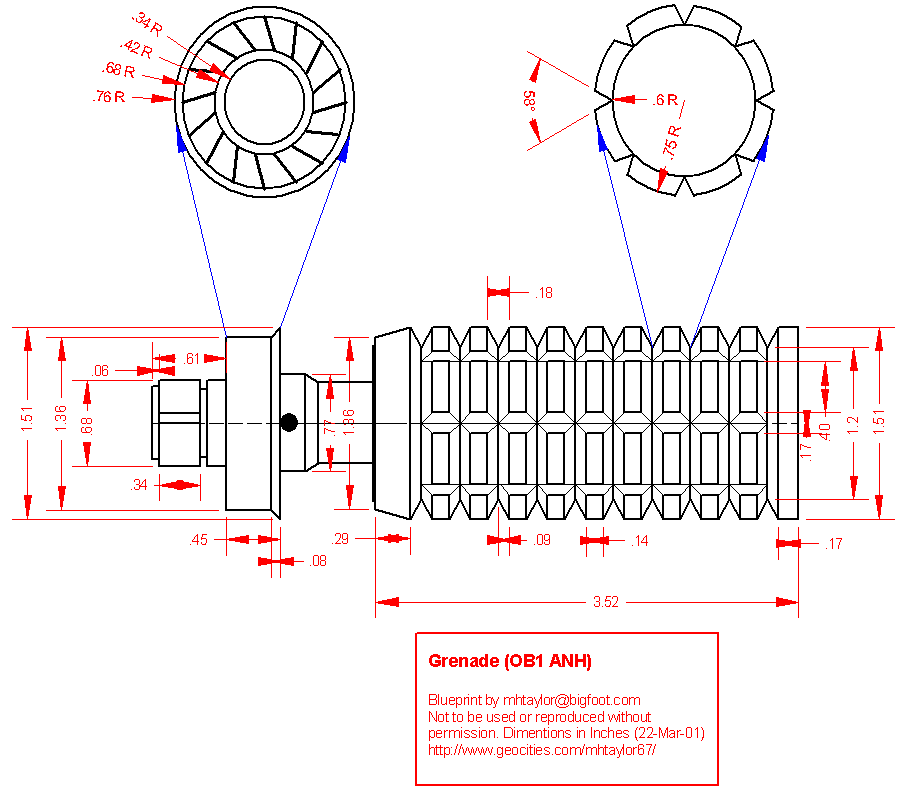

Blueprint for the grenade section of OB1's lightLightsaber.
