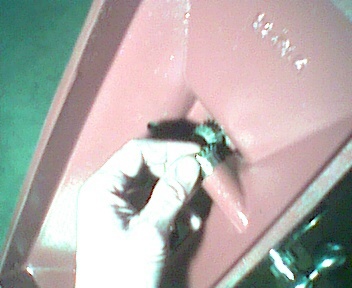

| The lift screw for the cross rail is installed I added a brass washer between the collar and base casting to act as a thrust bearing. |
|||||||||||||||||||||||
|
|||||||||||||||||||||||

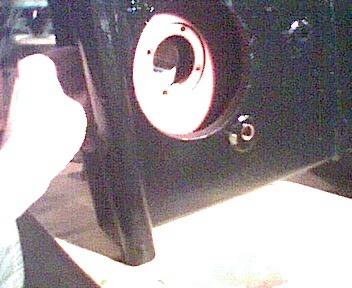

| Bolting to top and bottom castings together | |||||||||||||||||||||||
|
|||||||||||||||||||||||
| Assembling the bevel gears that raise and lower the cross rail and table | |||||||||||||||||||||||
|
|||||||||||||||||||||||

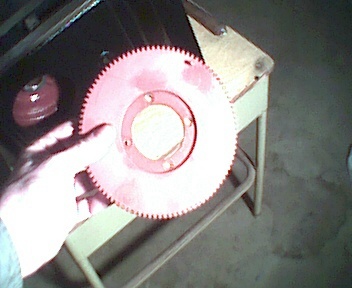

| This is the bull gear. I am really lucky this is in great shape. This gear is phenolic resin bonded fiber. This gear getting stripped marked the death of many of these shapers | |||||||||||||||||||||||
|
|||||||||||||||||||||||
| The bull gear goes in from the top. | |||||||||||||||||||||||
