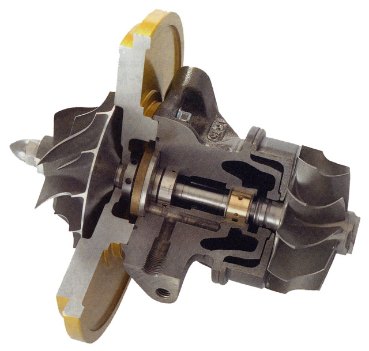

The 57-trim CT-26 has been retired and a new turbo will take its place. A Turbonetics T66 P-trim turbocharger will be used instead. In comparison, this T66 turbo dwarves the CT-26 and makes the CT-26 look like a pea shooter.
Turbonetics T66 Specifications:
> Ceramic Ball Bearing Cartridge
> 66mm P-trim Compressor Wheel
> Polished Compressor Housing
> 4" Compresor Inlet and 2.5" Compressor Outlet
> 0.69 A/R T04 Turbine Housing

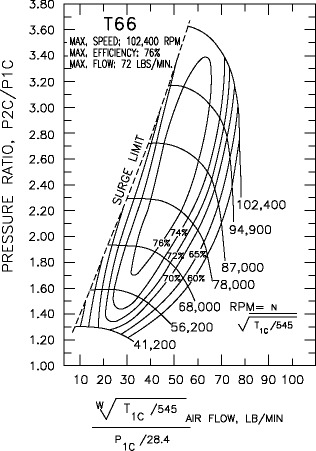

> 72 lb/min Flow capability at 26.5psi at 60%
The T66 Turbo no longer uses an internal wastegate like the old CT-26 turbo -- A Turbosmart 45mm external wastegate will be venting the exhaust to regulate boost pressures.
Turbosmart ProGate Specifications:
> High Lift Valve for High Exhaust Flow Capability
> 17-7 PH Spring and Silicon Nomex Diaphragm
> V-band Connections
> Supports 1200HP
