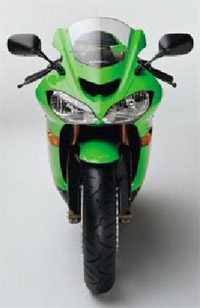

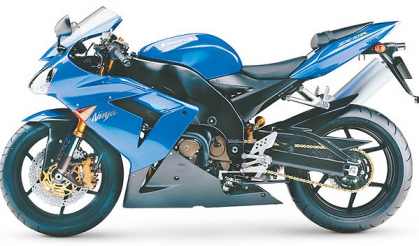

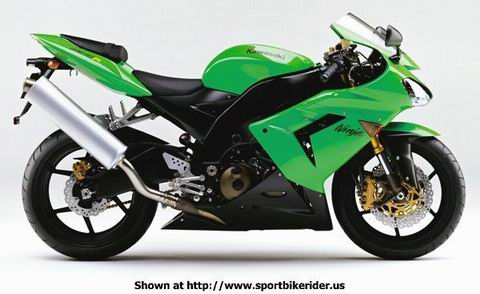

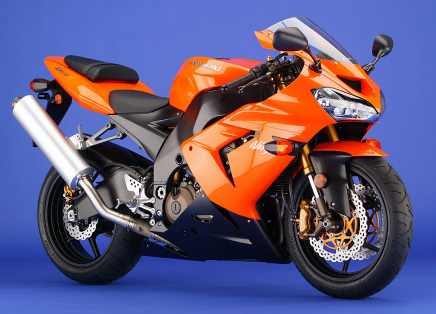

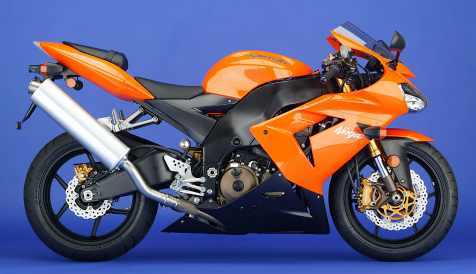

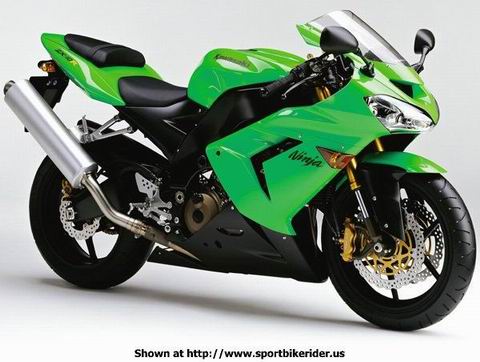

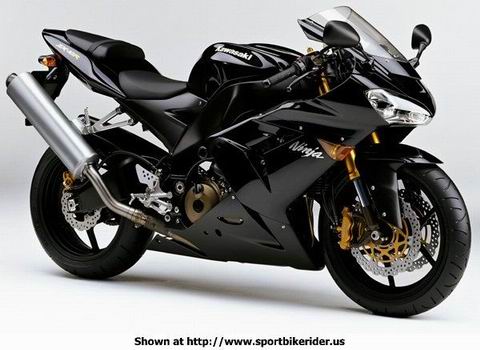

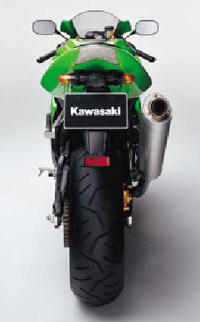

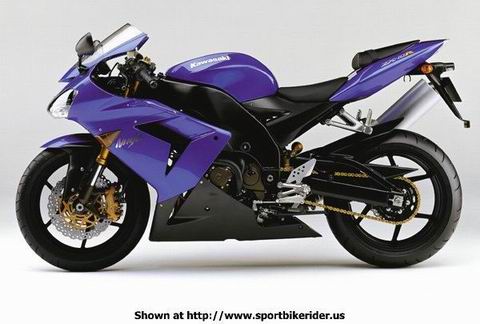

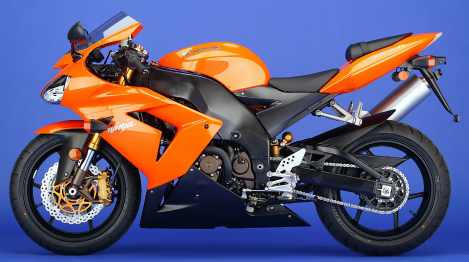

ZX10R

· Engine - Liquid-cooled, 4-stroke In-Line Four
· Capacity - 998 cm3
· Bore x Stroke - 76.0 x 55.0 mm
· Compression Ratio - 12.7:1
· Valvetrain - DOHC, 16 valves
· Induction - Fuel injection: ø 43 mm x 4 (Mikuni)
· Ignition - Digital
· Starting - Electric
· Lubrication - Forced lubrication, wet sump with oil cooler
· Gearbox - 6-speed, return
· Clutch - Wet multi-disc, manual
· Frame - Backbone/Twin-tube, aluminium (Pressed/die-cast composite structure)
· Tyres - 120/70ZR17M/C (58W) (F) - 190/50ZR17M/C (73W) (R)
· Rake - 24°
· Trail - 102 mm
· Steering Angle (left/right) - 27° / 27°
· Front Suspension - 43 mm inverted fork with top-out springs, 16-way compression and rebound adjustable, spring preload fully adjustable
· Rear Suspension - Bottom-Link Uni-Trak with gas-charged shock and top-out spring, stepless compression, rebound and preload adjustment
· Front Brakes - Dual semi-floating 300 mm petal discs, Dual radial-mount, opposed 4-piston, 4-pad calipers
· Rear Brake - Single 220 mm petal disc, Single-bore pin-slide caliper
· Length - 2,045 mm
· Width - 705 mm
· Height - 1,115mm
· Wheelbase - 1,385mm
· Ground Clearance - 125mm
· Seat Height - 825mm
· Dry Weight - 170 kilograms
· Fuel Capacity - 17 litres
· Claimed Maximum Power - 175hp (128.4kw) @ 11,700rpm (184hp/135.3kw with ram-air)
Claimed Maximum Torque - 115 N-m @ 9,500rpm
