Animating a 2 Cylinder Motor


  1. CREATING A 2ND. CYLINDER AT 90o (cont'd)

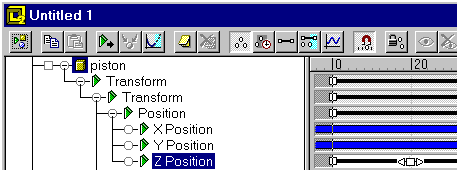

    1. trackview Click on the 'Track View' icon to display the TrackView menu.
      trackview

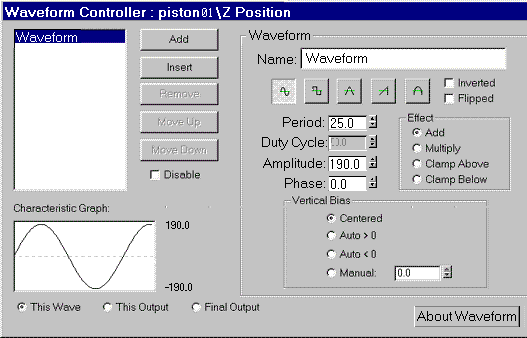

    2. dotedit Make sure the 'Edit Keys' icon is depressed and position your cursor on the solid black range bars behind the 'ZPostion' label at time 20 and double right click on it to get the WaveForm menu, below. waveform
    3. Make sure the Period spinner shows 25.0.
    4. Make sure the Amplitude spinner to 190.0 for the offset of the Pin on the Wheel.
    5. Set the Phase spinner to 0.0 for Z to start at 0.
    6. Make sure 'XPosition' and 'YPosition' are 'on/off' using the Assign Float Controller curves.
      NOTE:
      Most of the technical work is now done.
