3D STUDIO VIZ R2 TRAINING CURRICULUM
Animating a Pump


  1. FINITE ADJUSTMENTS OF PIN & SHAFT (cont'd)

      NOTE:
      You will probably need to do the previous instruction several times to fine tune your engine. Use Undo or reopen file to correct errors in object alignment - save often.
    1. Repeat the above steps for each incremented time slider location 0/100 - 100/100.
    2. timeslider Turn off the Animation button and run the animation run to see if it requires more adjustment.
    3. Unless you need to make further minor 3D adjustments the pump is done.

  2. CREATING YOUR PUMP.AVI ANIMATION

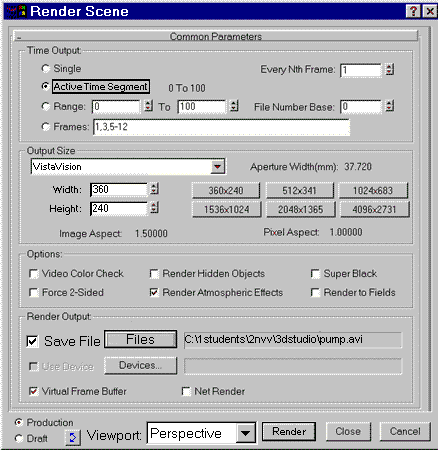

    1. rendersceneicon Click on the Render Scene icon to get the following render menu:
      renderscene
