Animating a Pump


  1. STARTING THE ANIMATION (cont'd)
    1. With the slider set at 50/100, 75/100 and 100/100; repeat this 1/4 rotation and steps 6 - 8 until a full rotation of 360 degrees is achieved.
    2. Turn off the Animation button.
    3. run Click the run animation button to see your first partial animation.
    4. runing or shut off animation with the off button.
      NOTE:
      This part of the animation was easy, the hard part is yet to come.

  2. ANIMATION USING WAVEFORMS
    1. trackviewicontrackview Click on the 'Track View' icon to display the TrackView menu, right.
    2. Activate 'Position' for the Piston, as shown right, and click the activated assign green arrow on the menu bar to get the following menu.
    3. Activate 'PositionXYZ' and click OK.controller

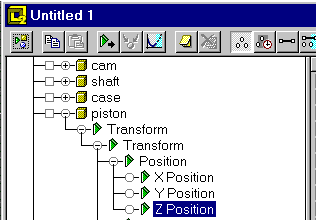

    4. trackviewClick on the activated (+) in the 'position' tag's circle and highlight 'ZPosition', shown right.
