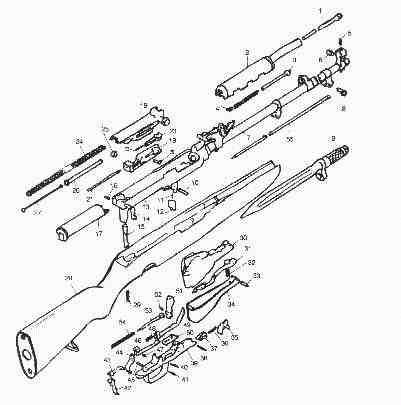

1.
Piston
28. Stock assembly
2. Handguard and gas cylinder 29.
Trigger guard spring
3. Piston
extension
30. Magazine
4. Piston return
spring
31. Magazine follower
5. Front
sight
32. Follower spring
6. Front sight
seat
33. Hinge pin
7. Handgurad
catch
34. Magazine cover
8. Bayonet
screw
35. Cover latch
9. Bayonet
assembly
36. Latch spring and sear spring
10. Hold open latch
pin
37. Sear
11. Hold open latch
spring 38. Latch
stop pin
12. Hold open
latch
39. Trigger guard
13. Receiver and
Barrel
40. Disconnector hinge
assembly
41. Trigger pin
14. Takedown
latch
42. Safety catch
15. Trigger guard
latch
43. Safety catch spring
16. Latch
pin
44. Trigger
17. Rear
housing
45. Safety catch pin
18. Bolt
carrier
46. Trigger bar
19.
Bolt
47. Trigger bar pin
20. Firing pin
retainer
48. Trigger spring
21. Firing
pin
49. Disconnector
22. Extractor
spring
50. Rebound disconnector
23.
Extractor
51. Hammer
24. Recoil
spring
52. Hammer strut pin
25. Spring
retainer
53. Hammer strut
26. Large spring
guide
54. Hammer spring
27. Small spring
guide
55. Cleaning rod
