Service, repair and modifications of electrical motors 29EPSS of Kinor-16 SX-2M |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

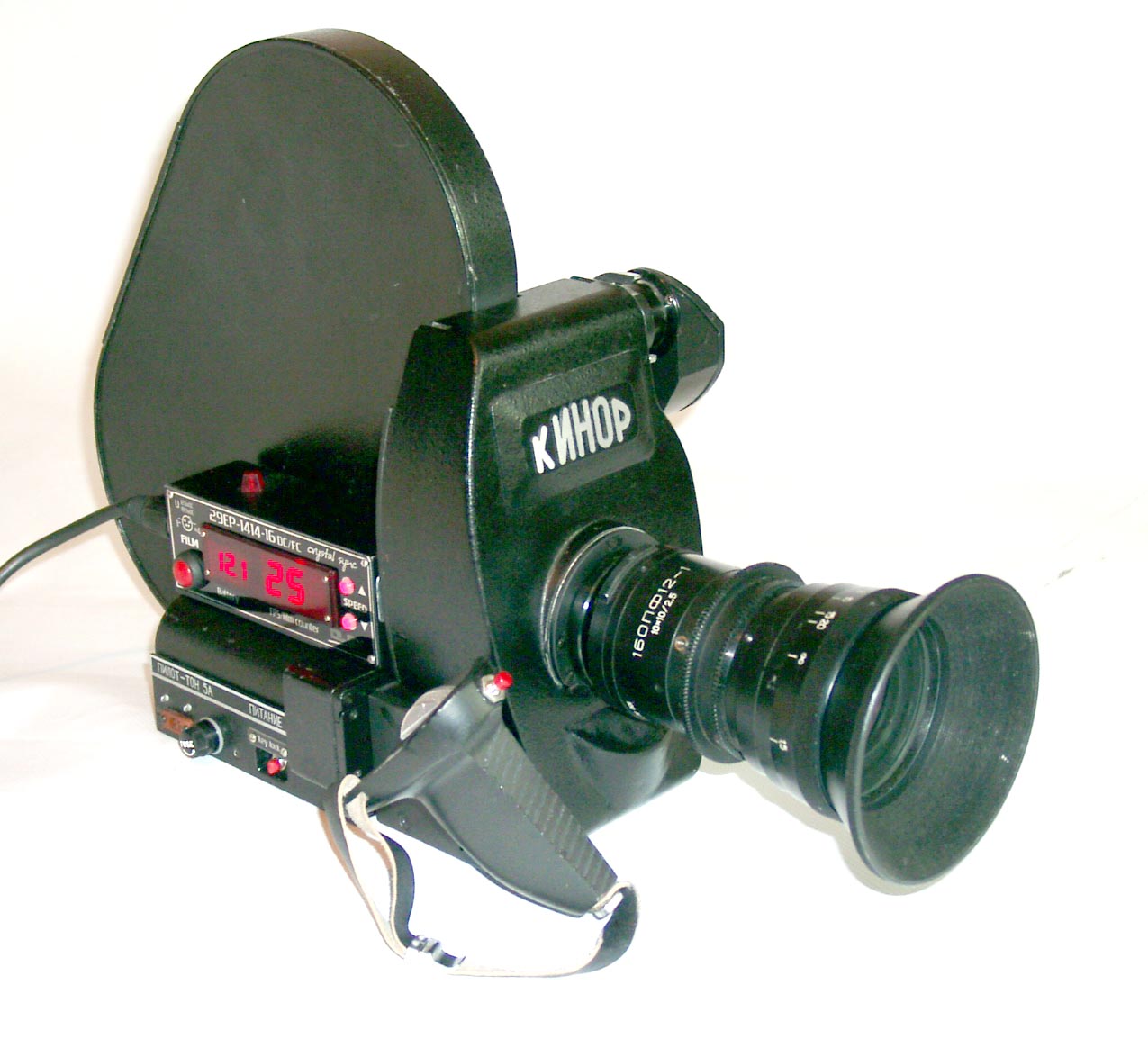

Kinor-16 SX-2M camera with modified 29EPSS motor, multi speed version .
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The next series of modifications of 29EPSS motor based on modern micro processor module with crystal sync speed conrtol. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Modification of motor version - Crystal
sync -6 / ( Crystal sync -6 + DV ) - 6 fixed , crystal sync speeds 8, 12, 16, 24, 25, 32 fps. - soft start of motor - digital voltmeter for control condition of battery with precision 0.1v. ( Crystal sync-6+DV) - full service of motor and reducer, - set 4pin XLR Cannon power connector, - set protective diode from connet battery with reversal polarity |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Modification of motor version - Crystal
sync -10 / ( Crystal sync -10 + DV ) - 10 fixed , crystal sync speeds from list : 6.25, 8, 12, 12.5, 15, 16, 16.6, 20, 24, 25, 30, 32, 33,3, 40, 48, 50 fps - soft start of motor - manual adjust of phase of speed - low speed test run - digital voltmeter for control condition of battery with precision 0.1v. ( Crystal sync-10+DV) - full service of motor and reducer, - set international style holder of glass fuse, - set 4pin XLR Cannon power connector, - set protective diode from connet battery with reversal polarity. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The original 29EPSS motor have analog system of speed stabilization ( prec
Th
I can propose modify of original 29EPSS
on multi speed edition with original analog system of speed
stabilization ( prec
The
new electronics can have a few versions. Th
The I generation of
microprocessors
of 1414, 1416
series have :
Th The
selector of speed can be mechanical switch
( version 6, 10 speeds ) or electronic speed selector on 16 speeds
with 3 digital LED display. Th
-
for “ academy “ film
shooting with base speed 24 fps
and a speeds div
8, 12, 16,
24, 32,
48,
-
for
PAL TV shooting and 50
6.25, 12.5, 16.6,
25, 33,3,
50
-
for NTSC TV shooting and 60
8,
12, 15,
20, 24,
30, 40, 2.
The fluent (soft
) motor acceleration and soft stopping.
The motor have gradual acceleration of speed, and smooth deceleration,
without jerk. The soft start very important for high speeds, because, the
mechan
3. Shutter Parking stops the
camera each time in the viewing position.
4. Manual adjust of phase of speed at run mode and manual turn of ax
5 Wide system of sound
information. The electronic confirm you correct loading of program with on
of motor, at run of motor, at stop of motor, at stop of motor on fixed
position, beep of not crystal
sync speed.
6. Light signal of not crystal sync speed.
7. 4 pin XLR cannon power connector, international standard
of power connector of cine and video equipments.
8 .International style of fuse holder for international glass fuses.
9. The electronics have protection from connect battery with reversal
polarity
10. The electronics have high power output stage with high power reserve.
The 1414 controllers can have a
few additional electronic modules :
-
digital film counter with LED d
-
digital speed coder with 16 speeds and digital
film counter with one LED d
-
Digital film counter with LED d
-
Remote control with LED d
Can run, stop camera, adjust of phase of speed, run camera with low speed,
show result of counter of film,
can have digital voltmeter, show not synch speed, have sound signal.
Can work on d
The 1416 controllers can have
additional functions :
-
outside speed control module, compatible with Arri Vario Speed module .
You can set any crystal by
standard Arri Vario Speed module.
-
speed synthesizer, Th
sync speed 5-50 fps with step 0.1, 0.01, 0.002 fps.
The I generation of
microprocessors of 1414, 1416
series
* The standard series of
29EP-1414-10 / 29EP-1416 controllers have speeds :
29EP-1414-10 / 29EP-1416-10
FILM – PAL speeds 8, 12, 16.6, 24,
25, 32, 33.3, 48, 50
29EP-1414-10 / 29EP-1416-10
FILM – PAL speeds : 12, 12.5, 16,
16.6, 24, 25, 32, 33.3, 48, 50
29EP-1414-10 / 29EP-1416-10
PAL - FILM
speeds : 6.25, 12, 12.5, 16,6, 24,
25, 32, 33.3, 48, 50
29EP-1414-10 / 29EP-1416-10
FILM – NTSC speeds : 8, 12, 15,
16, 20, 24, 30, 32, 40, 48
29EP-1414-10 /
29EP-1416-10
PAL-NTSC-FILM speeds : 16,6,
20. 24, 25, 30, 32, 33,3, 40, 48, 50
** The price of 1416
controllers not included price of 11-pin female
Fisher
plug.
**** The price of
speed synthesizer not
included price of 11-pin male Fisher

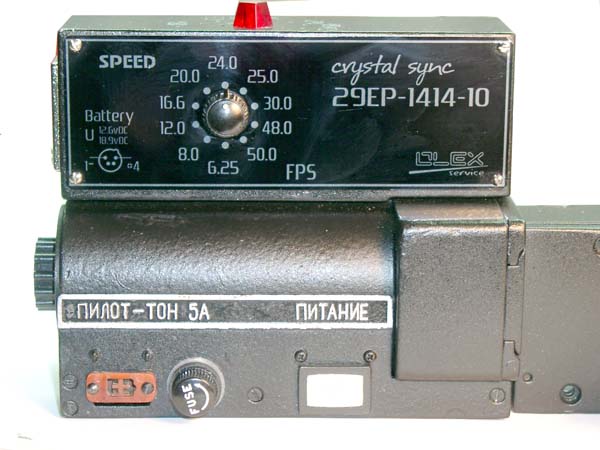

plug. This

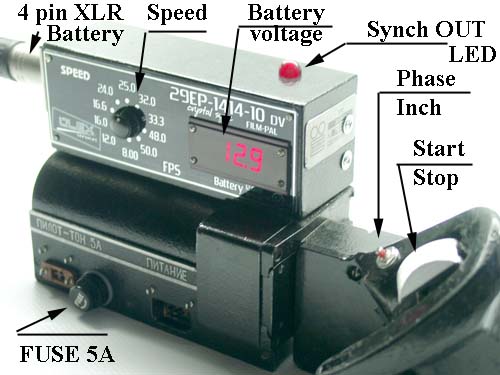

version -29EP-1414-10 DV with 10
crystal sync speeds and digital voltmeter of battery.
Th

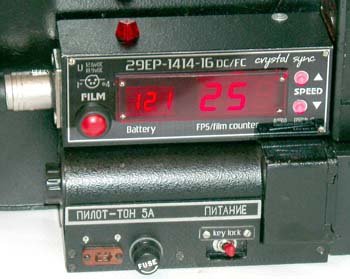

This is picture of Kinor-16 SX-2M with upgraded 29EPSS motor on version 29EP-1414-16DC/FC with 16 crystal sync speeds, digital speed coder, digital film counter and digital voltmeter.
The additional
electronics module of Shutter Parking
stops the camera each time in the viewing position. I set
a special optical sensor of
position of mirror d The
signal from optical sensor give to microprocessor and microprocessor parking
a shutter on fixed position for viewing. The
price of optical sensor and modify of body of camera
50 Euros.

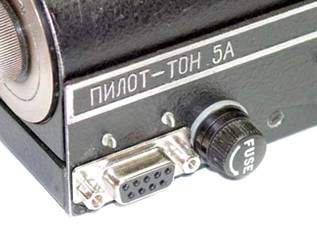

The motor can have 9 pin
connector Pilot-Tone DB9 of computer COM style.
The II generation of microprocessors of series 1420 founded on speed
synthesizers.
The microprocessor with speed synthesizer have all function of
microprocessors with fixed crystal sync speed but, you can set of speed
5..50 fps with step of 0.1 fps, 0.01
fps, 0.002 fps.
The speed synthesizer have 3x ( XX-X ), 4x ( XX-X ) 5x (XX-XXX )digital d
Version 1420-0303 5-50 fps, step 0.1 fps. XX-X d
Version 1420-0304 5-50 fps, step 0.01 fps, d
Version 1420-0305 5-50 fps, step 0.002 fps d
The II generation of
microprocessors of 1420
series
The III generation of microprocessors of series 1421 founded on multi speed
synthesizers. The
III generation, th The
new system included of all base character The
system can have a few versions and I will explain you about maximum
technical possibilities. The
initial mode – crystal sync speed. You
can load of a few ( 1…36 pcs ) of crystal synch speed
at range 5.000- 50.000 fps with step of 0.001 fps. The
any fixed speed can have any crystal sync speed. (
You have 36 crystal sync speed synthesizers
and can load more 45000
speeds. The
every volume of speed load on permanent memory and you can call of any speed
of any time. The
system have 5 digital led d You
can change of volume of speed of camera at stopping mode, and at running
mode. The
time of retuning of speed 0.8 sec. The
processor have intelligent
program of motor
acceleration and deceleration. The
electronics have low speed test running for test of camera and correct film
loading. To
have function of adjust of phase of speed at any crystal synch speed and
you have fine tuning of phase
speed. The
electronics have digital film counter at foots or meters with auto memory of
result of last count before stopping of camera. The
next mode of electronics – programming of speed
acceleration and deceleration.
For
example.
You need
begin of shooting with speed of 32
fps and deceleration of speed of camera up to 12.5 fps for 10 sec.
The time
of one step of speed
retuning 0.8 sec. 10
sec : 0.8 = 12 steps. (32
fps -12.5 fps ): 12 = 1.625 fps
per one step ( 0.8 sec ). You
need load of base points of speed changing : The
initial speed 32.000 fps
Step 1 32.000=1.625 fps = 30.375 fps
Step 2 28.750 fps
Step 3 27.125 fps
…….. …..
Step 11 14.125 fps
Step 12 12.500 fps.
You can
programming nonlinear function of change of speed of camera.
1421-0307 with 5 digitals LED display
1421-0309 with 2x8 digitals LCD display.
You can
show of result of film counting at stop mode, if you press on “ film”
button.
And
you can show of speed at run mode, if you press on “ Film “ button at
run mode.
The LCD
display will show you number of speed, value of speed and result of film
counting on 2 lines 8 digitals LCD display.
The film
counter can be adjust on a few modes: ( on
Foots
/ meters )
-
to count
of total film move,
-
to count
of film move at every take
-
to reverse
calculation of remainder film into film magazine (countdown )
-
to load of
capacity of film into film magazine.
The III generation of
microprocessors of 1421-0307,
1421-0309 series
I can
propose of additional devices for motor too.
Th
-
12 v
7 ah battery with case and 4 pin XLR connector
-
automatic charger for 12 v 7 ah battery with AC-220/240 v
-
AC
adapter 120-220V
If
you will need hast speed shooting and motor will have speeds 32…50 fps, you
will need 18 V battery.
I can propose dual version of battery 12-18 v 4 ah.
The battery have 3 pcs of 6 v 4ah cells and you can choose 12 v or 18 v
output.
Th
The set of power source can have a few versions of power cords with 4 pin
XLR connectors too.
Th
The power cord with on-off switch and battery led,
The short power cords ( 1.5-1.8
m ) or long ( 3-5 m ).
The long power cords can have on-off switch for run camera d
Th
If you will need low weight battery, I can propose 12 v 2 ah battery with
plastic case.
But, th
The power cords must have 2 pin
screw power connectors too. Th
The price l
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
