Service and repair lab of cine cameras and
lenses | ||
Service and Repair of 16 mm cine camera Kinor-16 SX-2M Service and repair of cine cameras, mechanism, magazines and mechanical parts. |
|||
|
|||
|
The service, repair, design debugging and adjust include a
few procedures. |
||
|
1. Repair, service, adjust of transport
mechanism of body -
taking to pieces, cleaning, check, grinding of parts a transport
mechanism. -
Re-polish film gate -
Re-polish parts of transport mechanism |
||
 |
-Re-lube, assembling a transport
mechanism - ballancing of base axis of mirror disk with mirror disk. |
||
 |
-

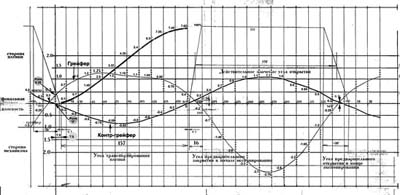

check and adjust of missing profile of
transport mechanism. |
||
 |
-
adjusting a flange focal distance of
lens mount , |
||
 |
- bench development, run-in table, run with film magazine and film
|
||
| Service, adjust of optical
parts of camera body. - cleaning, adjust a position of
a mirror shutter disk - adjust a sync
of position of mirror disk and missing profile of transport mechanism - cleaning,
adjust a position of focusing screen by collimator, - taking to
pieces, cleaning, assemble of viewfinder channel, - adjusting a
flange focal distance of lens mount by measuring tools and collimator, Service, adjust
of viewfinder -
taking to pieces, cleaning, check a
parts a viewfinder, -
check and adjust of position of optical
parts of viewfinder |
|||
| The final test of flange focal distance of
lens mount, zoom lens, position of ground glass and position of mirror disk with
collimator.
|
|||
| The current maintenance of
mechanism of Kinor camera. The base points of oil gun lubrication ( 2-3 drops of lubricating liquid)
|
|||
|
Repair, service, adjust a film magazine
30 m/ 120 m -
taking to pieces, cleaning, check a
parts a film magazine. -
Re-polish film channel and clamping
plate. -
Re-polish surface of rollers of film -
Re-lube, assembling a film magazine, -
check a flange focal distance a film
magazine with a body of camera by collimator |
||
