| FENDER STRATOCASTER TONE CAPACITORS | ||||||||||||||||||||||||||||
| BACK TO HOMEPAGE |
||||||||||||||||||||||||||||
 |
 |
|||||||||||||||||||||||||||
| In 1968 Fender used a green "chicklet" Metal/Polyfilm from "NISSEI" .1 100V UF/MFD Capacitor (2A104K) for this year, as well as the start of using Ceramic Disc "D" (Cornell-Dubilier) "80-20 .05 UF/MFD 50V" (+80%/-20% tolerance) capacitors in both 1968 and 1969. | ||||||||||||||||||||||||||||
 |
 |
 |
||||||||||||||||||||||||||
| From 1970 to 1979 (and into early eighties until CBS sold fender) Fender used the same Cornell-Dubilier "Z5V.05 M UF/MFD 100V" +80%/-20% Tolerance Ceramic disc capacitor in stratocasters, as in 1969. The style/printing/brand changed slighty with using an "RMC" brand instead rather than the Cornell-Dubilier. |
||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||

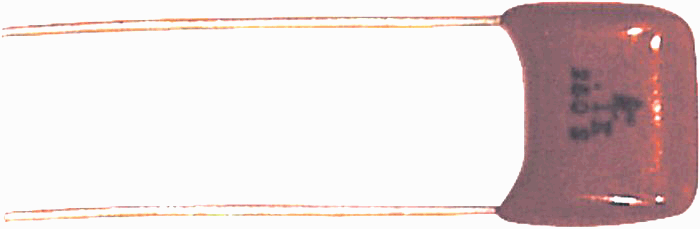

| After the buy-back of Fender from CBS, Fender switched to using Metal Poly Film type from Illionis Capacitor, standard for most new stratocaster guitars (0.22UF/MFD = brite) being common value for new strats, and replacement tone controls. On some special occasions in the late eightes fender used some orange-drop type capacitors on different pickguards. Fender only installs a .1UF on a handful of special guitars and Custom Shop models like the: AV62/57 RI, 50's & 60's Strats, Eric Johnson, Jimi Hendrix Tribute, VooDoo, Robert Cray and Mark Knopfler models standard from the factory now, which is a change from the 50's/60's production. | ||||||||||||||||||||||||||||
| Page 2 of 3 | ||||||||||||||||||||||||||||
