The Keulco Bino Mount
Binocular viewing has never been so easy and so comfortable
Links to great sites
BINOCULAR
ASTRONOMY
SKY
& TELESCOPE
BINO-SKY
ASTRONOMY WITH
BINOCULARS
|
|
Retractable counter
weight shaft and heavy duty tripod |
Swings side to
side without losing your view |
Great
for astronomy - star gazing, bird watching, and field
observation. This unique scientific instrument is
guaranteed to out perform any other mount available.
|
|
Due to the jitters
of a hand held binocular, mounting on a tripod is a must
for serious observation. The KEULCO BINO MOUNT bases
its principle on the conventional pivoting parallelogram design.
This arrangement allows you to move the binoculars up and down
without changing its aim.
The KEULCO BINO MOUNT will not
only hold its aim up and down, but also from side to side,
therefore a six foot adult can point the binocular at a target,
then swing them down for a four foot child to look into, or sit
side by side, swing them over and the aim will still be there.
You can move the binoculars out of your way to examine charts or
take notes and swing it back to your eyes without losing your
view. The most comfortable viewing position is with the
mount to your side because of its unique dual parallelogram
design it will hold its aim up , down, forward and backwards thus
making it the only mount in the world where you can bring the
binoculars to your eyes, and setting itself aside from all other
mounts and contraptions where you have to bring your eyes to the
binoculars.
|
|
|
|
|
|
About
the KEULCO BINO MOUNT!
|
|

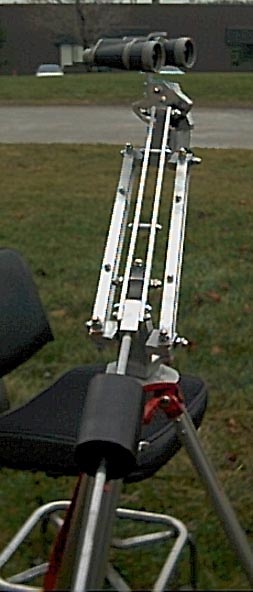

This is a multi-dimensional
parallelogram mount with 5 degrees of freedom with a 30"
vertical sweep and a 23" horizontal sweep. Binocular
can tilt 120 deg. and be rotated 360 deg. and be locked into
position. The binocular is mounted to the parallelogram
with a 1/4" -20 screw (binocular should have a 1/4"
mounting hole). Made of aircraft aluminum (T6) at our own
factory and tested within the strictest tolerances.

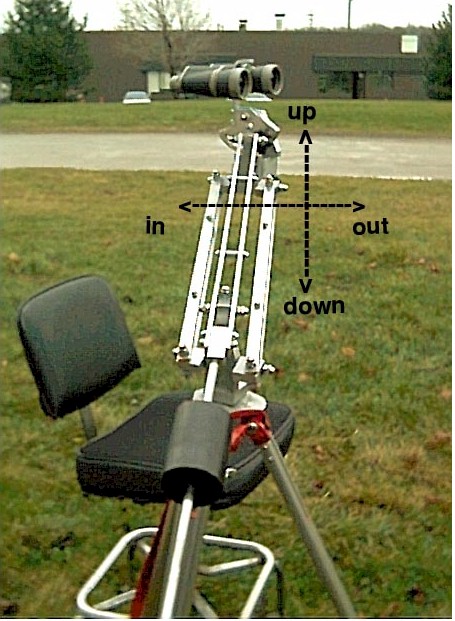

The three arms allow for much
more comfort and stability. And since the arms move up,
down, in, out and side to side there is little chance of
losing your view if the mount is bumped.
|
|

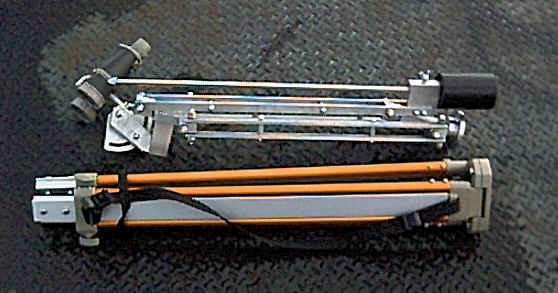

With the retractable
counter weight shaft, the Keulco Bino Mount folds together for
easy storage. |
|
|

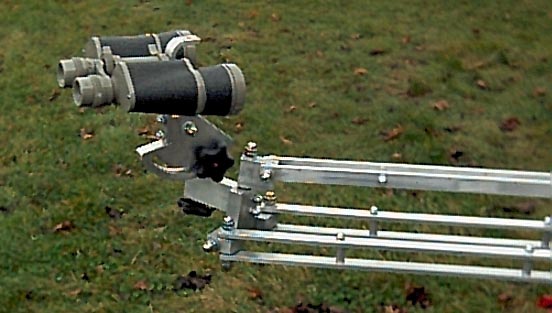

Head
|
|
|
The head can be rotated 360 deg. and tilted 120 deg. and
locked easily and securely into place with the two large knobs
when you have achieved your desired aim. There isn't
multiple hinges and pivoting points that are free-flowing
because they will contribute to the loss of aim and render the
whole purpose of a parallelogram more or less useless.
There are two holes for mounting.

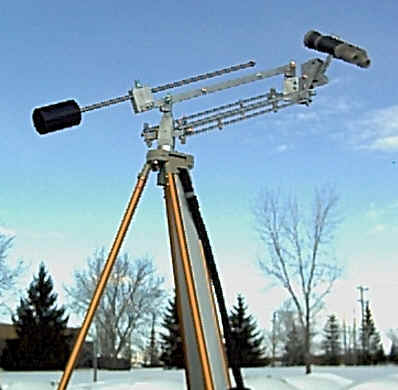

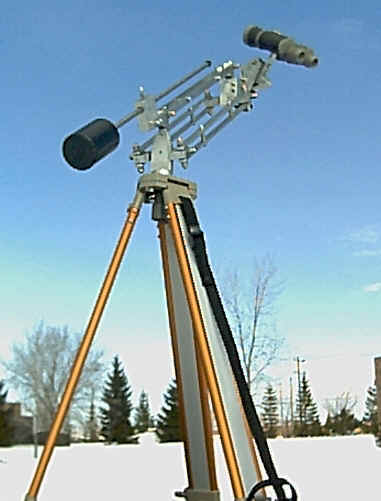

The tripod is a high quality
surveyors tripod (not a flimsy photo or wooden one). Made
entirely of aluminum and is designed for strength and
durability.
|
|
|
Technical
Specifications
|
Requirements
|
Binocular mounting :
1/4" UNC screw
Binocular tilt:
120 deg.
Binocular rotate:
360 deg.
Parallelogram:
5" X 21"
Sweep vertical:
30"
Sweep horizontal:
21"
Counter weight:
7lbs.
Tripod closed:
40"
Tripod fully extended:
66 1/2"
View:
30 yards to infinity
Set up time:
5 min.
Total weight:
27 lbs. (mount 15.5 lbs tripod 11.5 lbs)
|
Binoculars
with 1/4" mounting hole
Field of view:
3 deg. or greater
Maximum weight:
8 lbs.
|
KEULCO BINO
MOUNT only $397.00 USD plus s&h comes fully assembled
add a high quality surveyors tripod (as pictured above,
binoculars not included) for a total of $546.50 USD plus s&h
100%
MONEY BACK GUARANTEE
KEULCO
1-603 Colby Drive Waterloo, Ontario N2V 1A1
Canada
[email protected]
Most mounts
are shipped the day after order is received but to prevent
delays, please confirm order with a quick email
If you have
particular needs, please email us about a custom mount
calibrated for your binoculars
**Please
note: Our phone line needs to stay open for fax only, but
if you need to speak to someone, just send us an email with your
phone number and we will call you as soon as possible.
Every inquiry is very important to us and responses will be
prompt.
No dealer
discounts as this would increase the price of the mount.
|
|
