| Kens 93 SeaRay SeaRayder Jet Boat |
| I also own the above mentioned boat. It is a great boat but the motor has always given me problems. |
| The motor is a 90 HP Mecury Sport Jet. It is actually a Force powerhead with Mercury Ignition. These ignitions are know to have big problems. The stators from the factory (called "black" stators) had a lot of failures, so they changed to a new "Red" stator (yes it is the color red). This helped some, but still the red stators are not failureproof. One other big problem is the ignition boxes. I have had two fail on my boat. CLICK HERE FOR MORE TROUBLESHOOTING INFO ON THE IGNITION |
 |
 |
 |
 |

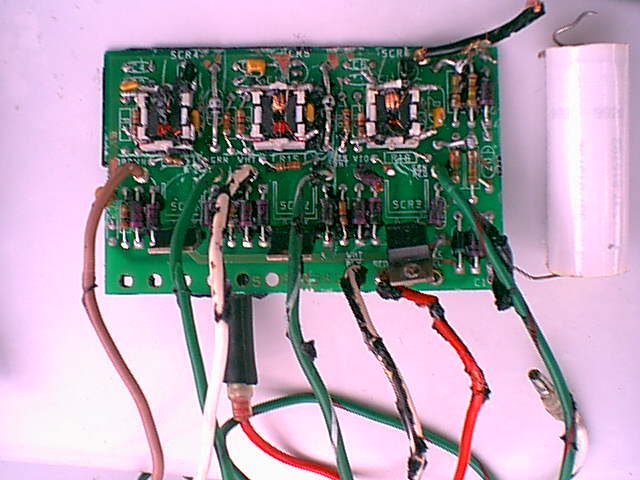

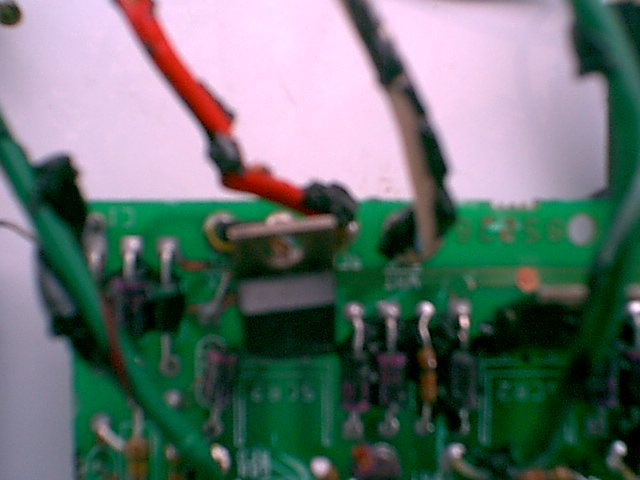

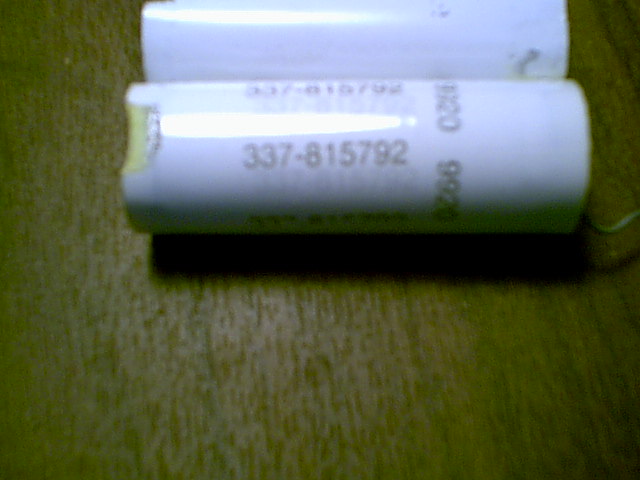

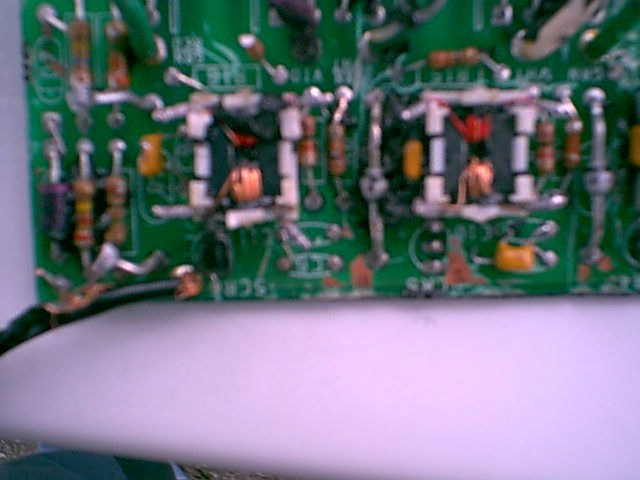

| Below are pictures of what is inside the ignition box. I hacked the cover off, then had to chip away at the potting material to expose all of the components. It looks like a collection of diodes, resistors, 3 small SCRs, 3 large SCRs, three transistors, and one large capacitor. Problem with taking off the potting material is that many components were damaged. I will tinker with this as time permits. |
| Here are some good message boards for these engines: www.sportjetworld.com www.iboats.com |
| Here are some links for repair parts: www.mercrusierparts.com www.stemtostern.com www.rapair.com (new ignition box) |
| Email me with suggestions or help with IDing parts on the circuit board below. [email protected] |
