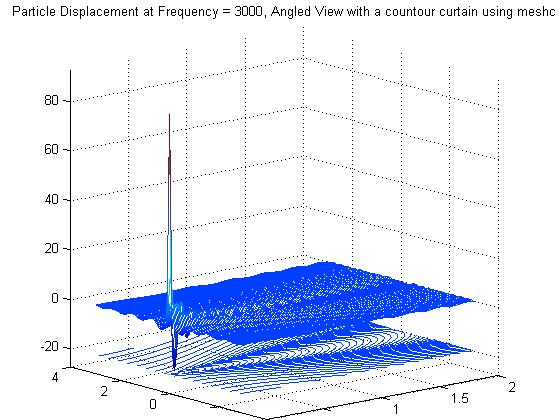

| The following plot was made using meshc. It allows a curtain countour to be seen below the 3-D image. | |||||||||||||
|
|||||||||||||

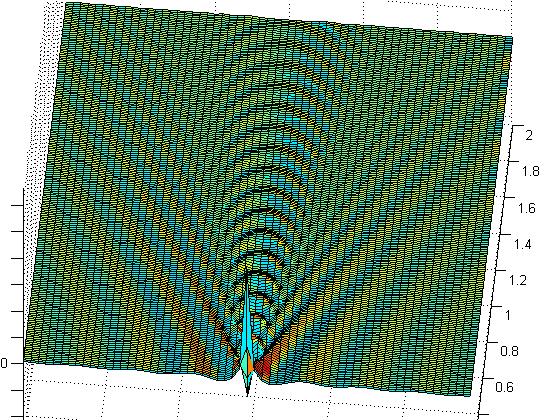

| The following plot was made using surfl. It is a top view of the particle displacement. You can see the path of travel of the piston projected in a specific direction. This path is more directed that the previous one because it is a tappered piston. | |||||||||||||
|
|||||||||||||

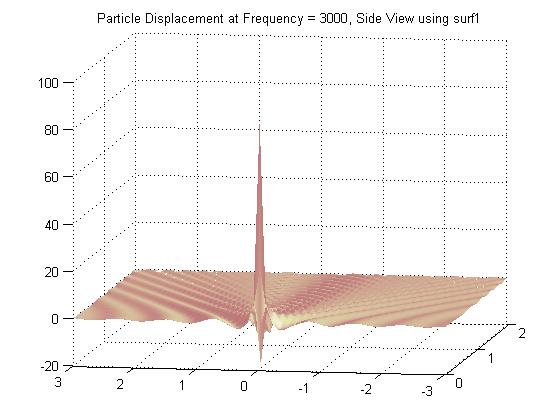

| The following plot was made using surfl. It is a side view of the particle displacement. You can see the pulse in a 3-D projection: | |||||||||||||
|
|||||||||||||
|
|||||||||||||
