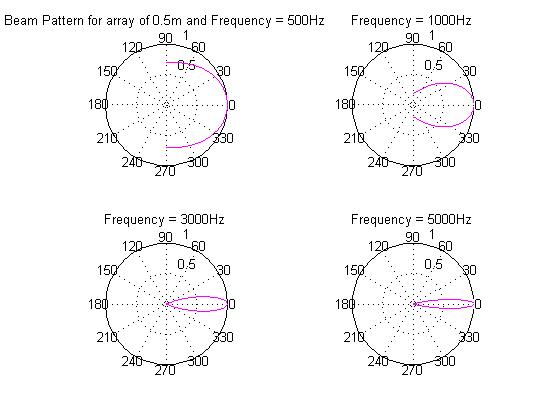

| The following is a tapered one dimensional loudspeaker array with its beam patten and particle displacement plots. Note that for frequencies between 1 kHz and 5 kHz the beam pattern produces a well rounded main lobe. And that for the higher the frequency, the more directed the beam pattern becomes. The array is of size .5 m. There are no side lobes because this is a tappered piston. There are three particle displacement plots to display an angled side view with a countour curtain and a top view. | ||||||||||||||||||
|
||||||||||||||||||
| Click for the code | ||||||||||||||||||
|
||||||||||||||||||
| To view the particle displacement plots at a frequency of 3000 Hz click the button below: | ||||||||||||||||||
|
||||||||||||||||||
|
|
|||||||||||||||||
