Pictorial Hookup View

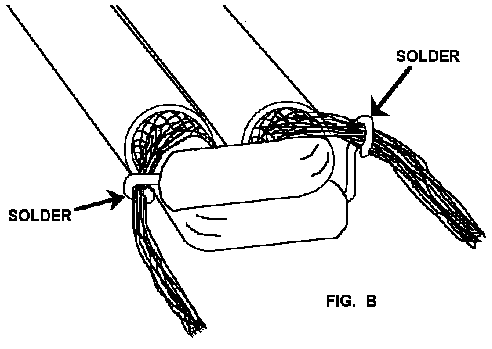

This is what the ends look like for Speaker cable #1. The center insulation should be approx. 1/2" long, this will keep the two coaxes apart and prevent shorts. Heatshrink could be placed over the braid.



Next DIY Speaker Cable Figure
