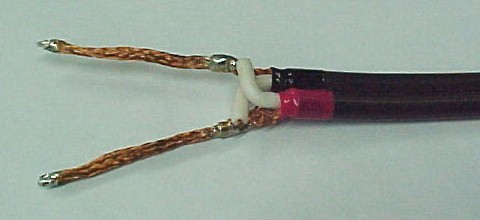

A view of the nearly complete terminated end of a Cross-Connected Belden 89259 Speaker Cable

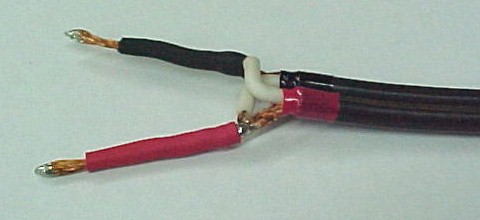

A view of the terminated end with heatshrink for insulation and color-coding.  Note that ends tinned only for convenience during assembly, to avoid fraying, recommended final termination is a spade lug crimped onto the bare copper braid.
