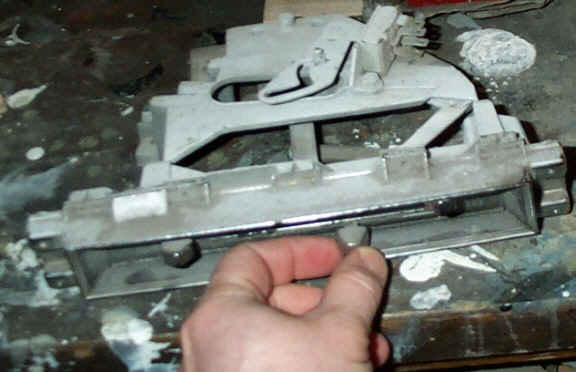

| The bottom lever of the heater box was broken. This apparently is fairly common for this year. |
| A kit is available from aftermarket companies to repair this lever. |

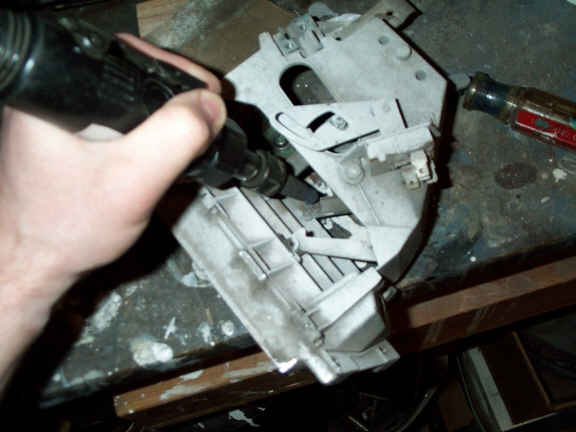

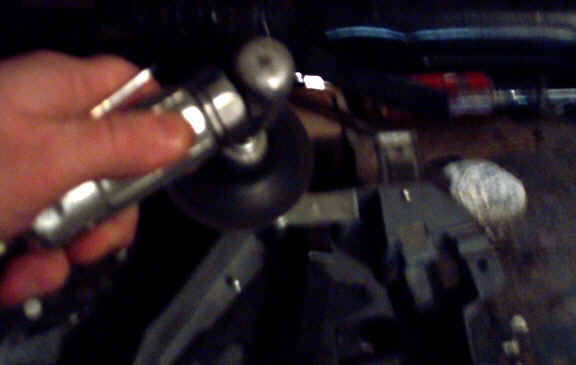

| The first step to install the kit is to grind the rivets flush with the retaining plate. |
| Then, the front rivet must be ground off of the control lever. |
| Once this is done, the new lever is ready to be installed. |

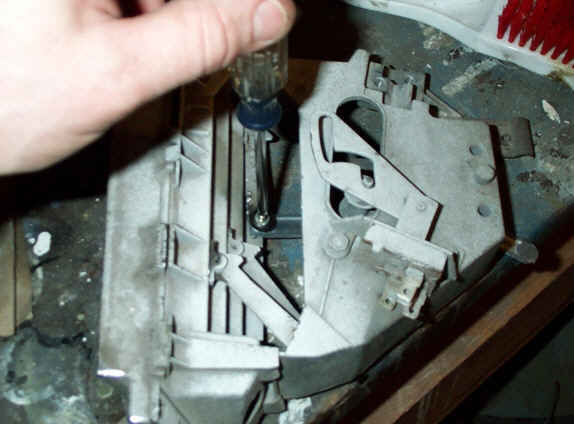

| The front of the lever is attached with a washer and self tapping screw. |

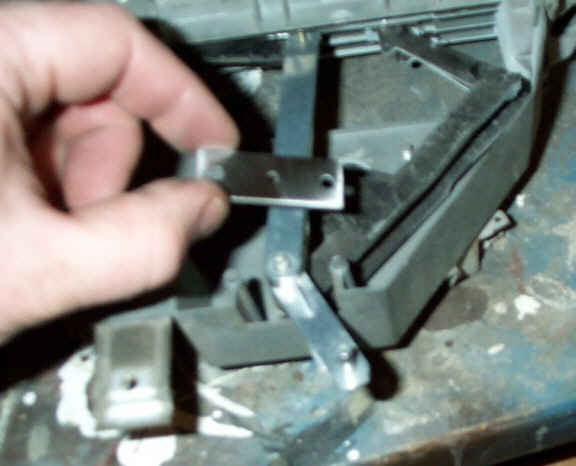

| The back of the lever slides onto the pivot rod and then the retaining plate can be re-installed. |

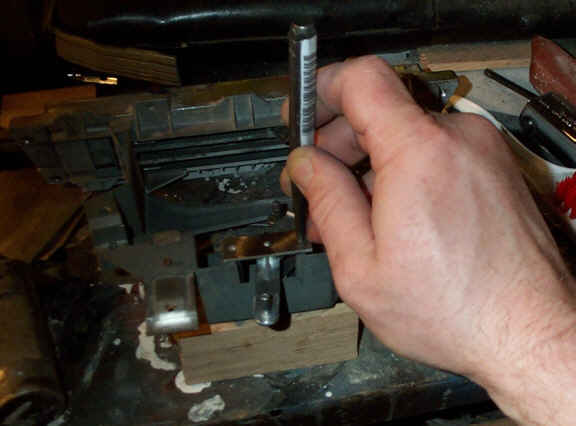

| To secure the retaining plate, center punch the rivet posts. |

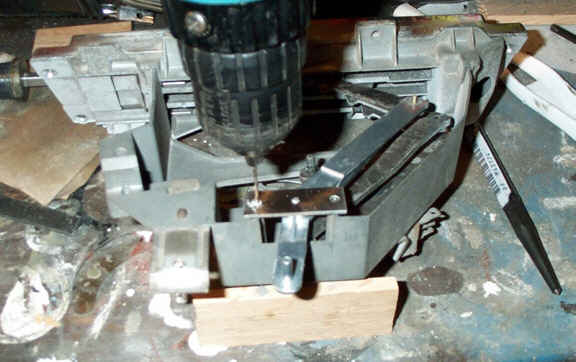

| Then drill two holes to accept the provided self tapping screws. |

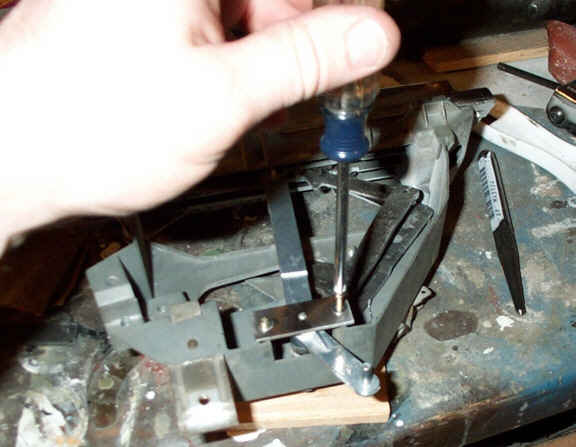

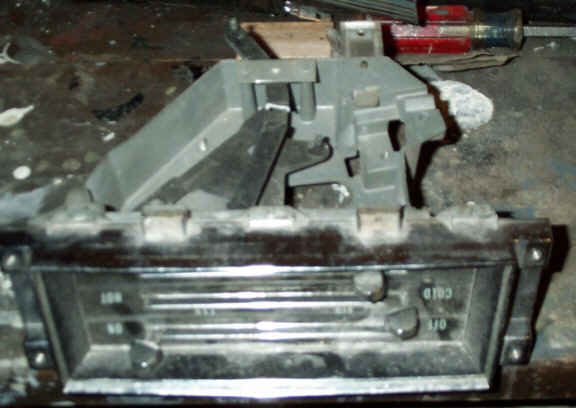

| Once the screws and washers are installed, your control unit is ready to clean up and go back into your car. |
