I have made scans of my 10-inch split-ring telescope plans available here for you to download. You'll also find parts lists and construction help with hints and copies of the articles that were originally published in 1986. Please feel free to pass this address around. Let me know if this is helpful.

A couple of years after these articles were published, the telescope fell apart - too much use and dew for the cheap plywood I used. I have not rebuilt the scope, though I still have the mirrors, eyepieces and some pieces left. If you'd like to discuss the design, let me know by E-mailing me.

The scans of my telescope were made by taking the last blueprints I have available. They were yellowing and faded. Quality is marginal, but I hope they will be useful. Click on the title and view the picture. If you want to download and print it, right-click your mouse and then select SAVE IMAGE AS...

Articles are in Adobe Acrobat format.

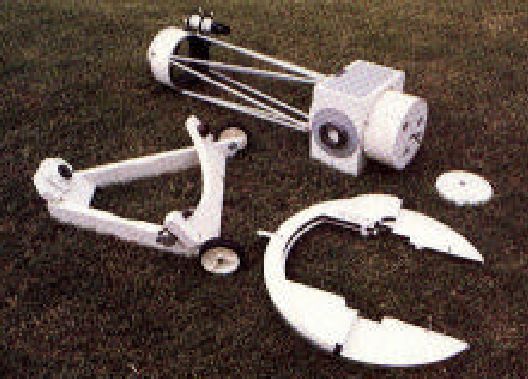

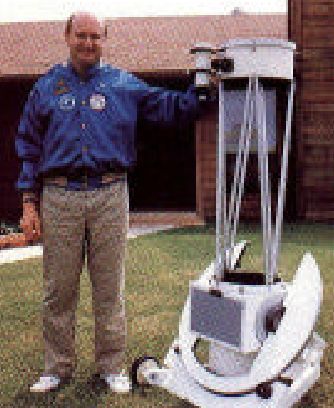

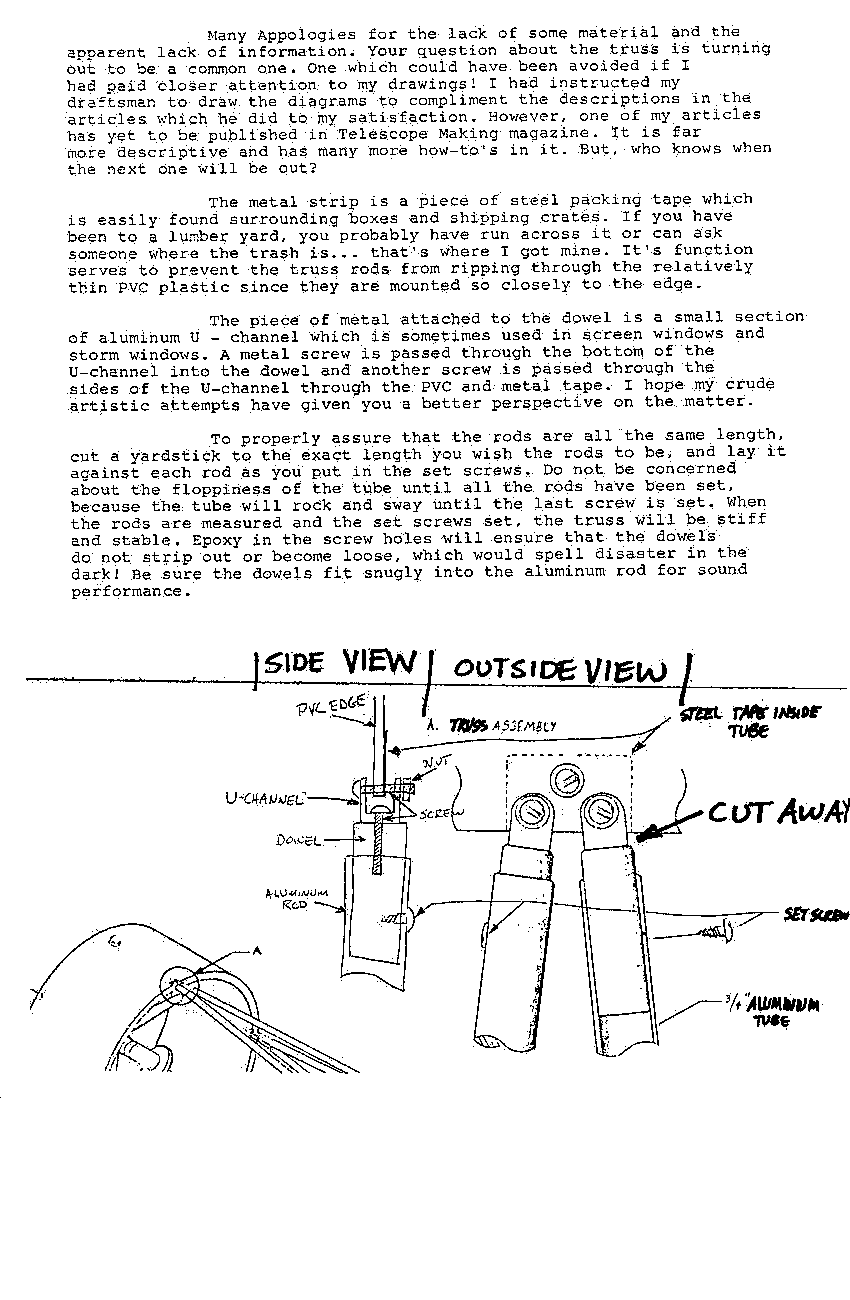

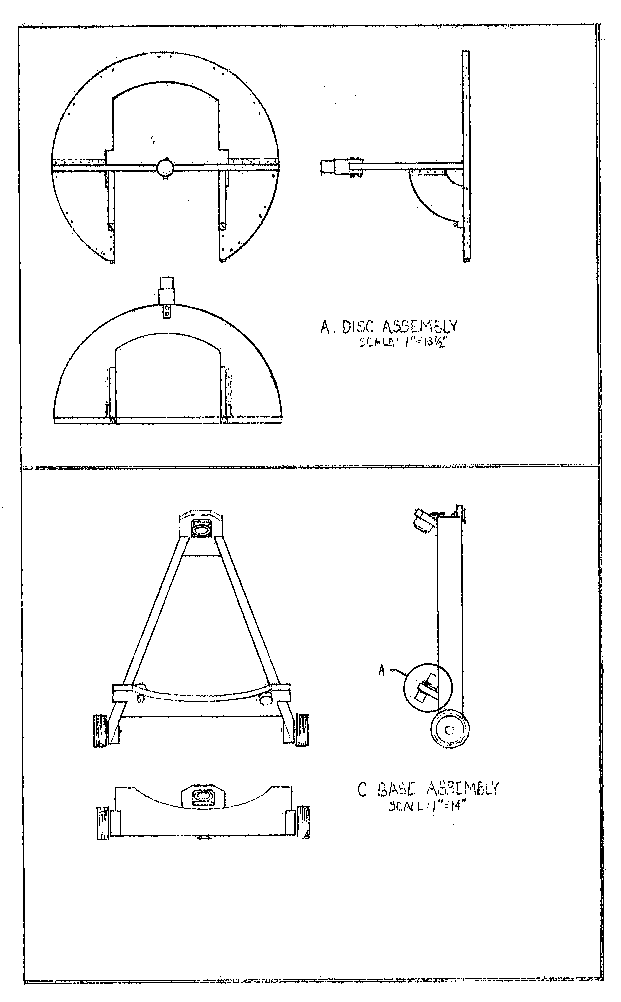

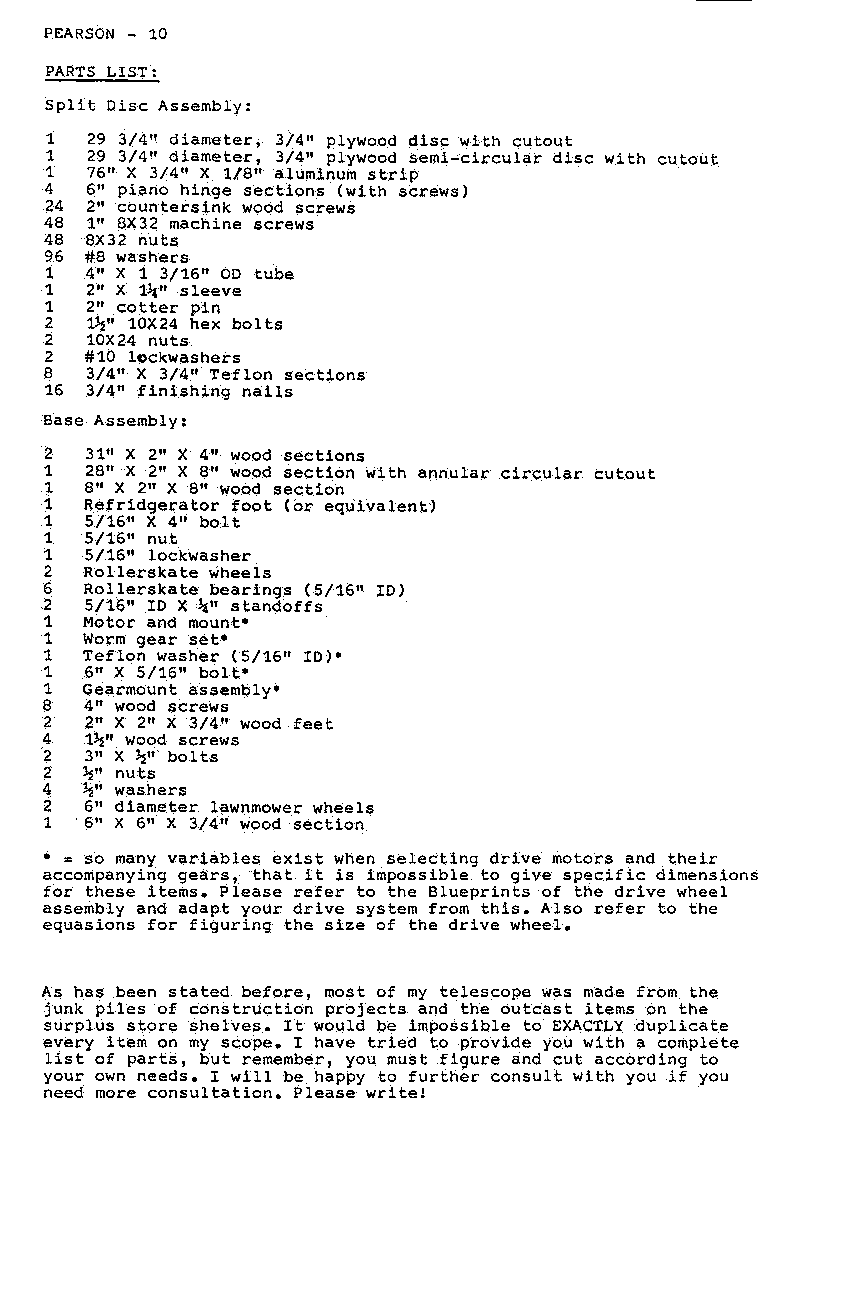

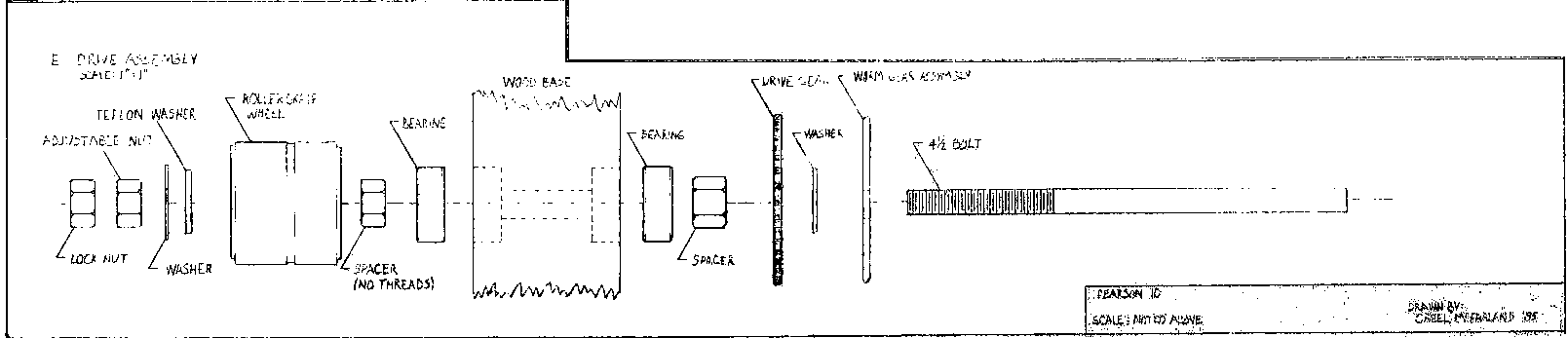

Drive Section detail	Hints & Tips #1

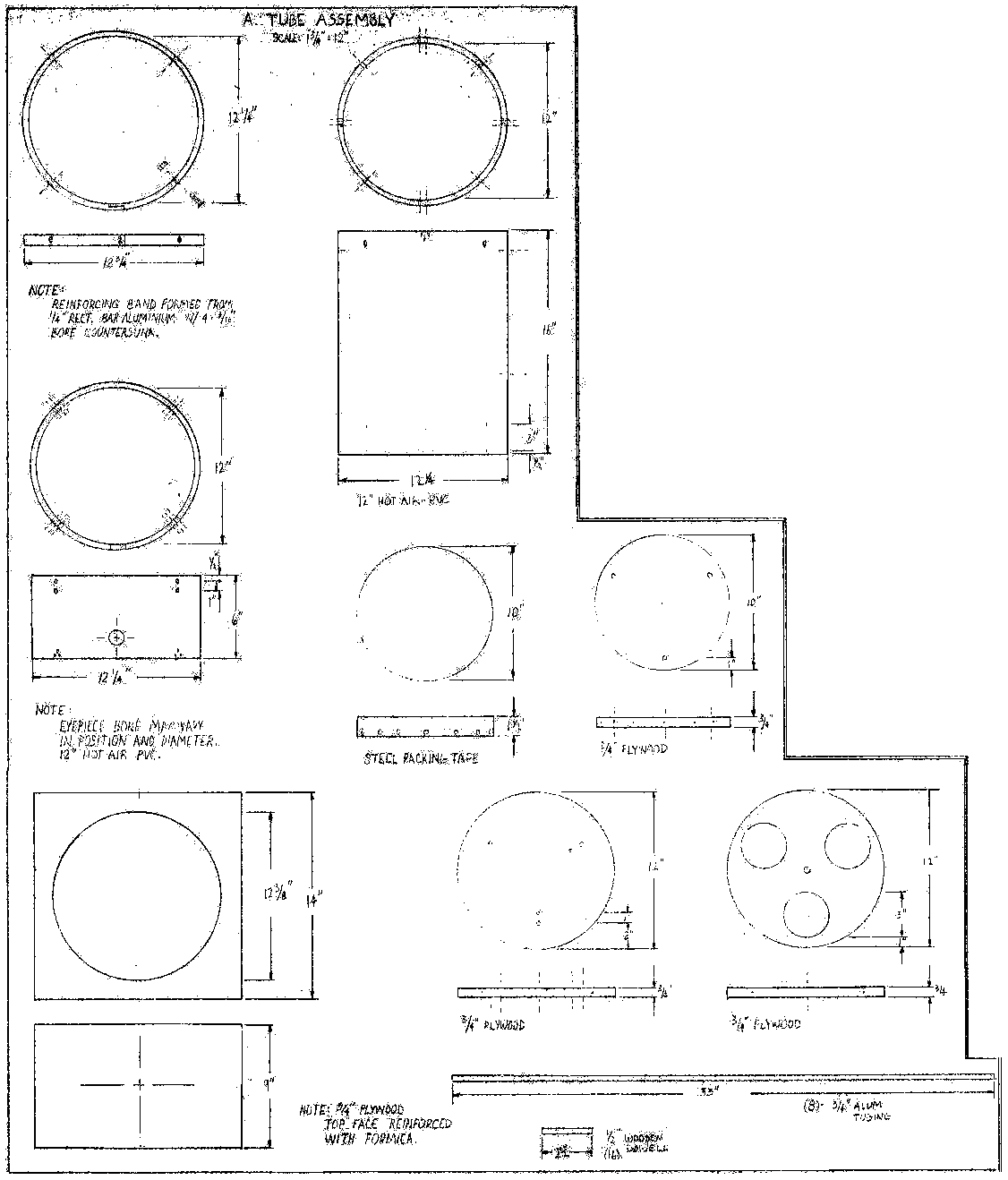

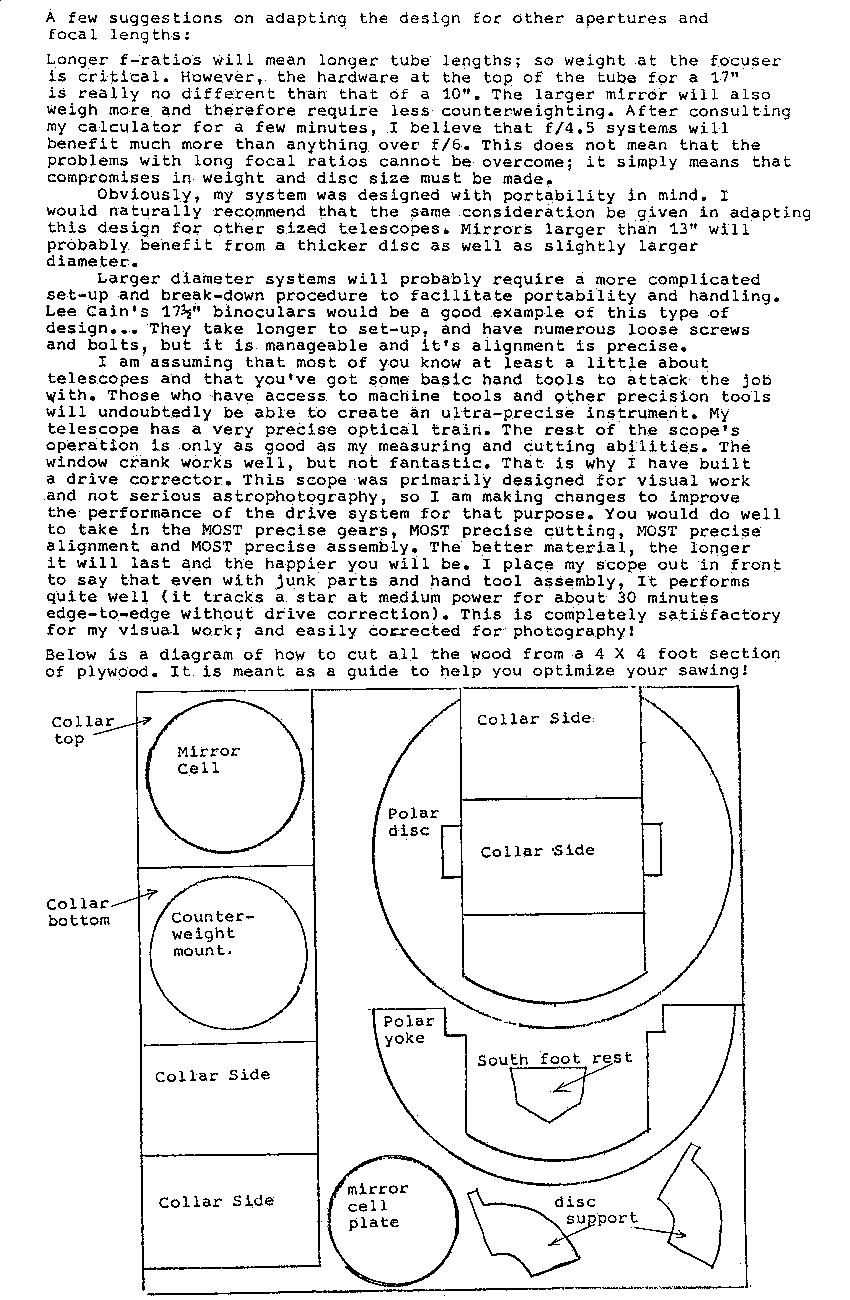

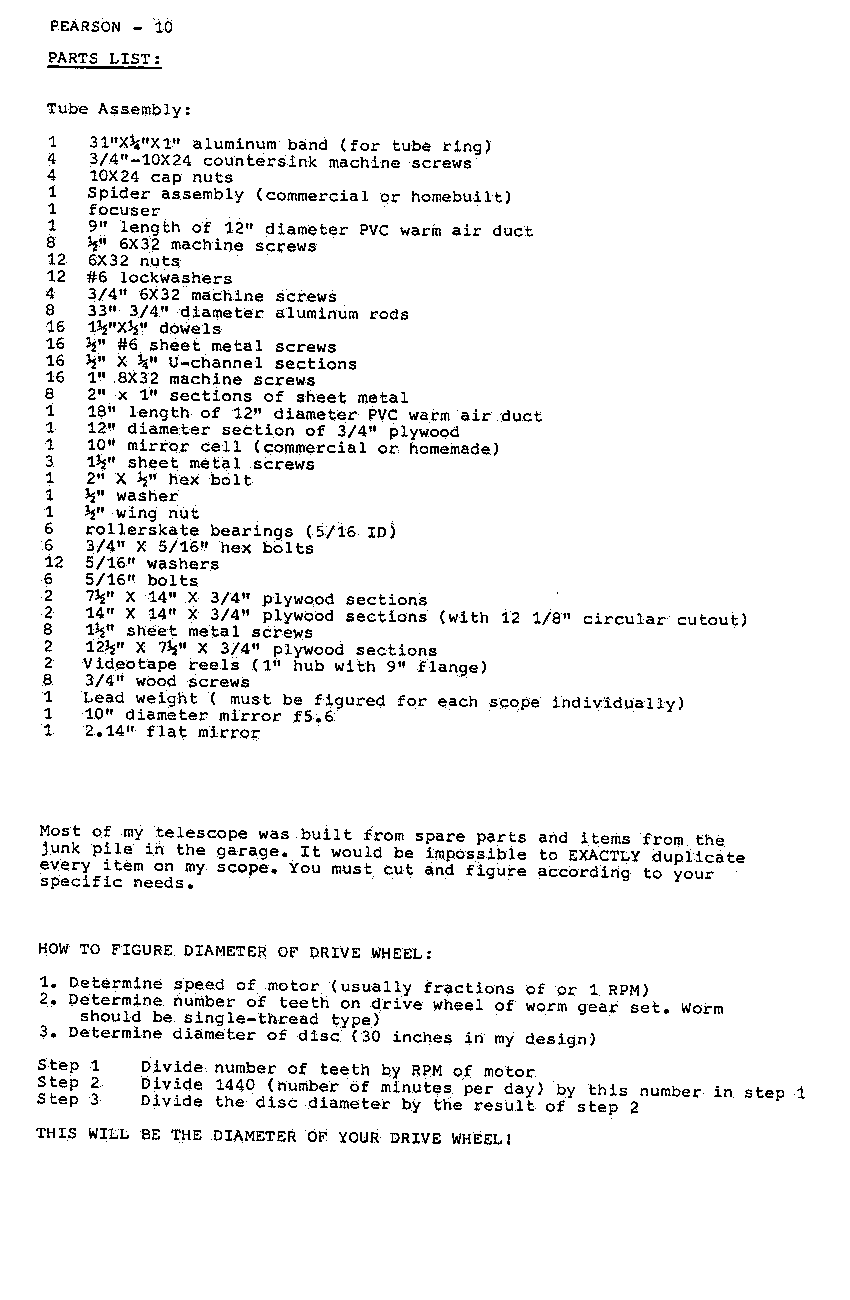

Tube & Truss Section detail	Hints & Tips #2
Right Ascension Disk detail	Hints & Tips #3

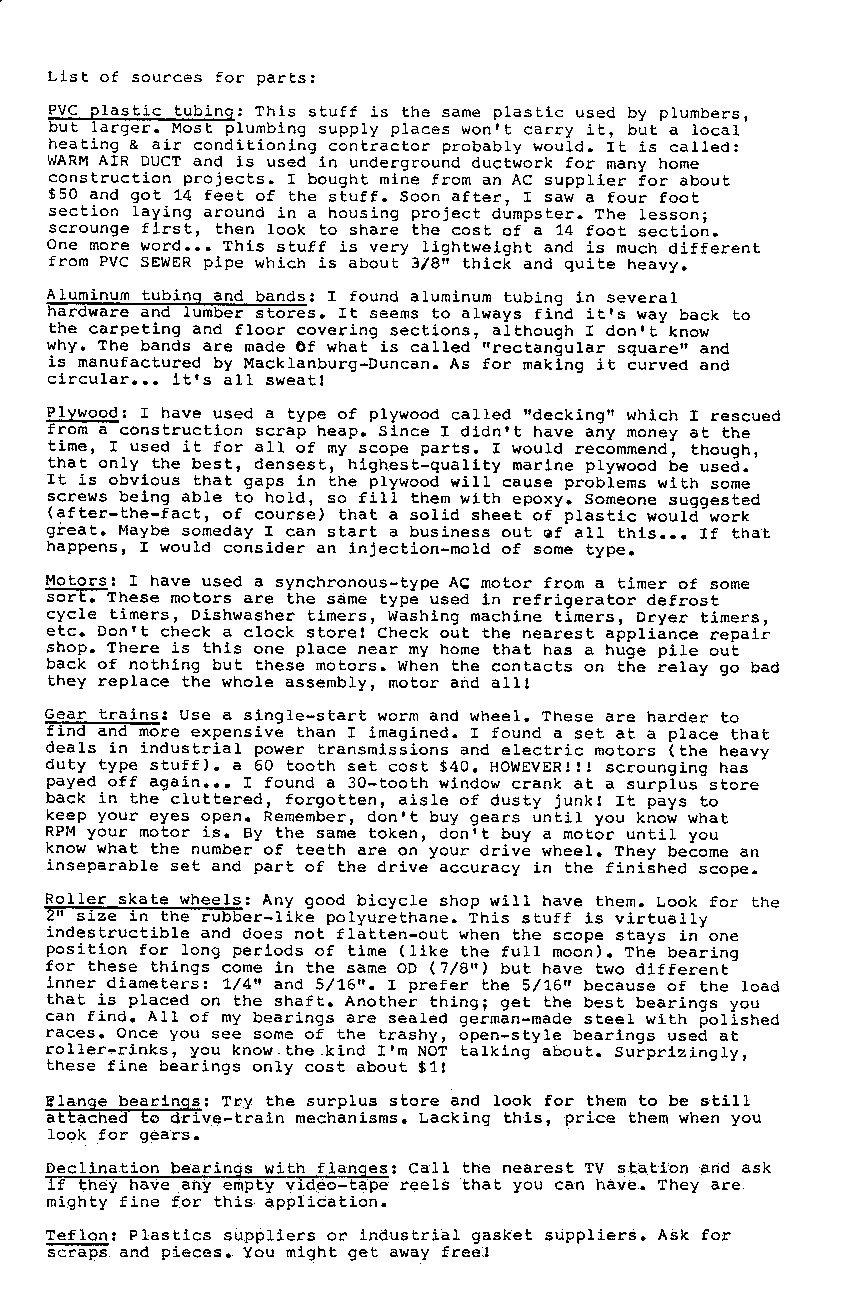

Split-Ring Disk detail	Hints & Tips #4
Declination Yoke & Base detail	Hints & Tips #5

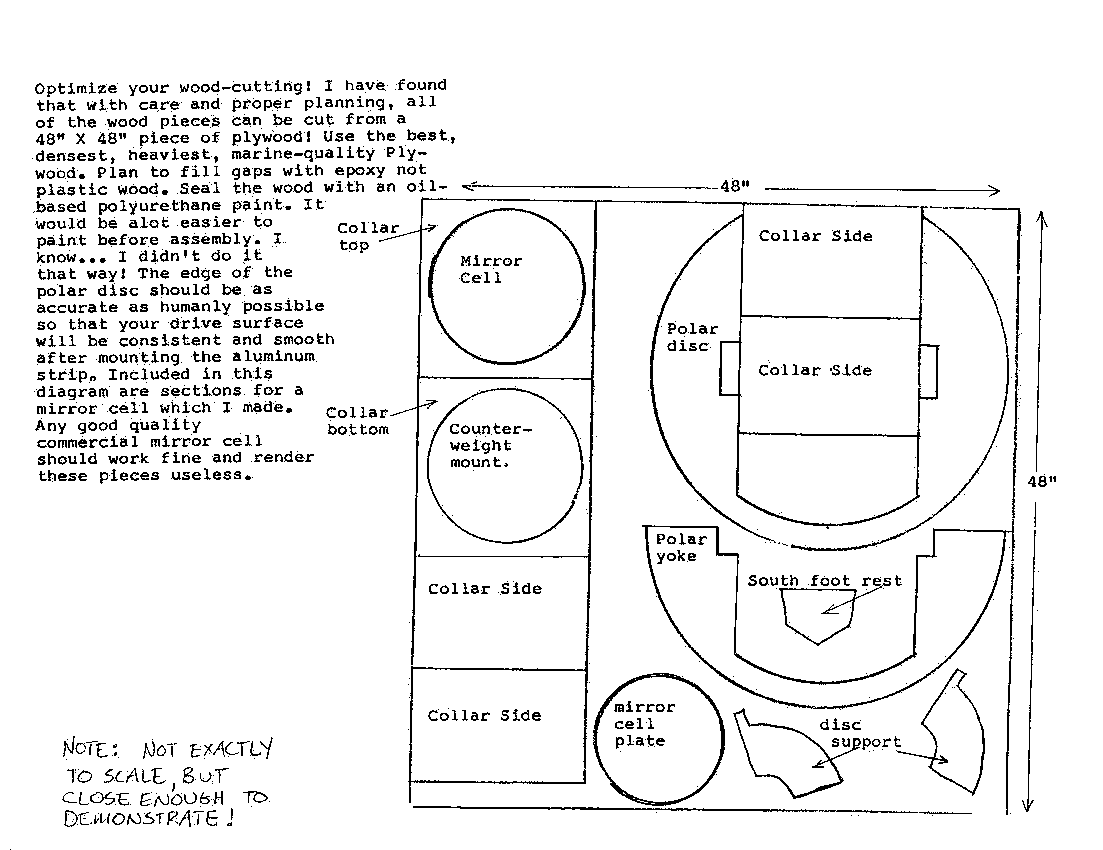

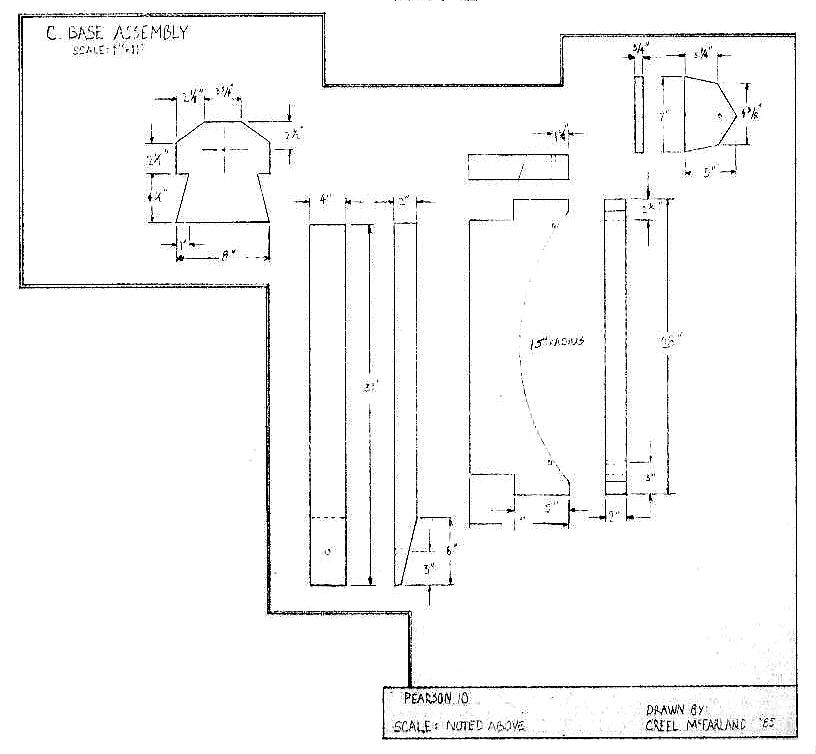

Base detail	Hints & Tips #6
Motor & Gear detail	Article in TM #27
	Article in 3/86 Sky & Telescope    Article rendered here in black & white to conserve space
