Roland JD-800 Internal Test

Testing the Machine
(Click titles for pictures)

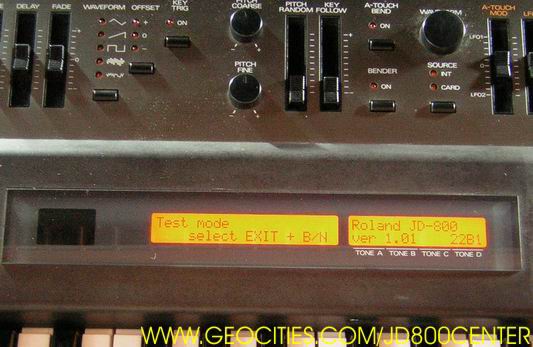

To Enter the Test Mode	Select Multi-Mode
	Press and hold: Cursor Left, Cursor Right and then Exit buttons.
Internal RAM Test	Exit + Bank 1
Data Card Test	Exit + Bank 2
Internal PCM ROMs Test	Exit + Bank 3
WAVEFORM Card Test	Exit + Bank 4
Buttons Test	Exit + Bank 5
LED Test	Exit + Bank 6
Sliders Test	Exit + Bank 7
Rotary Encorder Test	Exit + Bank 8
Bender and Aftertouch Test	Exit + Number 1
Pedals Test	Exit + Number 2
Keyboard Test	Exit + Number 3
MIDI Test	Exit + Number 4
Audio Outputs Test	Exit + Number 5
Effects Test	Exit + Number 6
D/A Adjustment	Exit + Number 7
Exit the Test Mode	Exit + Number 8
