| Veggie Control Panel | |||||||||||||||||||||
| The panel is made of 1/8� clear acrylic plastic. The panel was cut using a laser cutter from a CADD file. Most people don�t have access to a laser cutter. You can use the dimensions from the drawings in the links below to manufacture your own from wood or other plastics. To make the background I searched Google for fries and pulled a good picture from the web. You should be able to use the one below if you want. I put the picture into Microsoft Word and added words and pictures. I printed the Word file onto a sticker paper and put it onto the pre cut panel. Next I covered the sicker paper with some plastic contact paper to protect it. Once both are stuck on the panel cut the holes out with a razor blade. Last mount all the gauges and switches. I had a few extra things to mount as you can see. |
|||||||||||||||||||||
![]() |
|||||||||||||||||||||
![]() |
|||||||||||||||||||||
| Picture used for background | |||||||||||||||||||||
| Veggie Control Panel | |||||||||||||||||||||

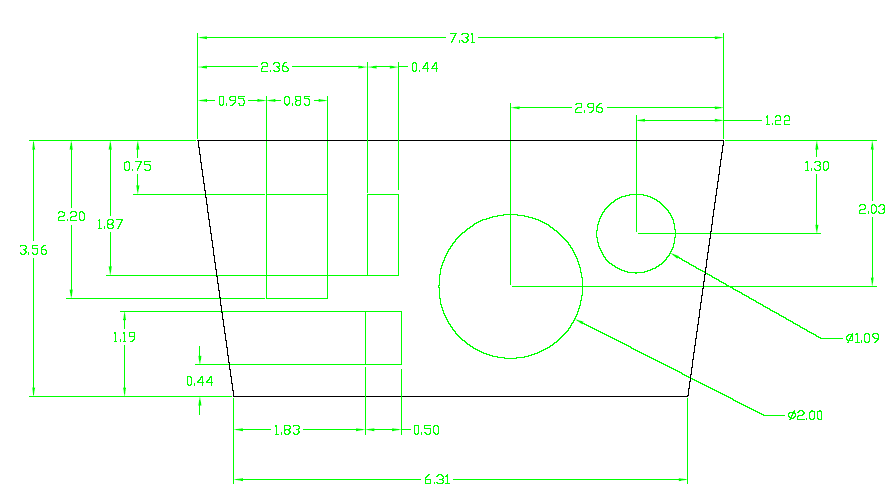

| Link to Drawing of Veggie Panel Pictured | |||||||||||||||||||||

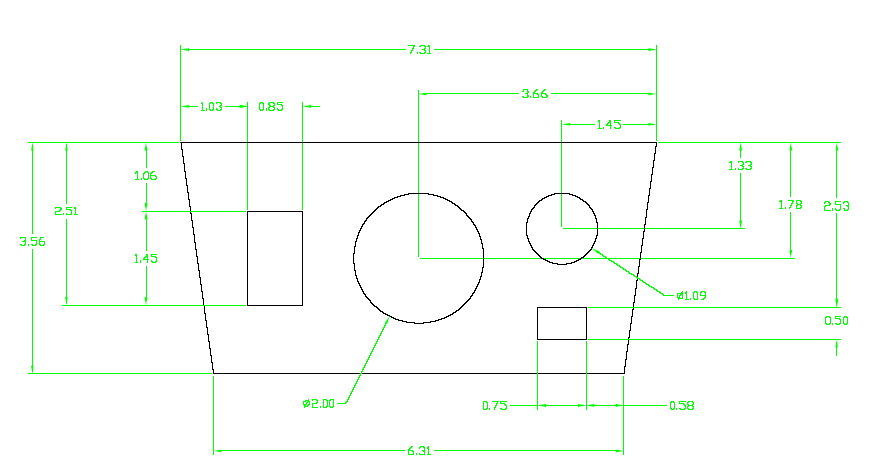

| Link to Drawing of Simple Panel | |||||||||||||||||||||
