DCS 400 Module or Complete Cabinet.
- DC Drive for regenerative and non regenerative operation
- Capacity from 20 Amp to 1000 Amp.
- 230VAC to 500 VAC input, 3 phase, 50/60 Hz.
- IGBT-based field supply, includes fuses and choke
- Speed feedback via tacho-generator, encoder or EMF
- 2 Analog Inputs, 2 Analog Outputs, 1 Tachogenerato input, 1 Encoder
Input.
- 8 Digital Inputs, 5 Digital Outputs.
- Accuracy 0.005%, resolution 12 bit incl.sign
- Multi Protection Function.
- Remote/Local operation.
- Automatic Field Weakening.
- Self-guided commissioning
- Autotuning for armature, field, spedd controller and flux.

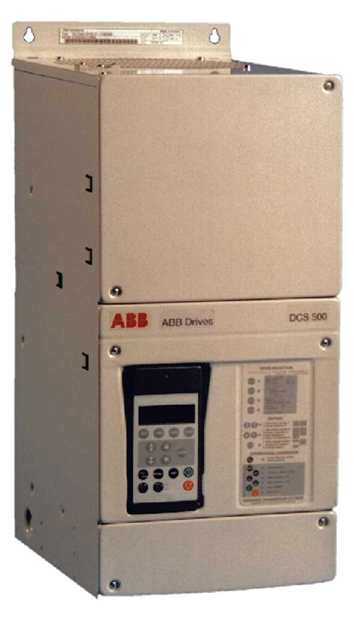

DCS 500 Module or Complete Cabinet
- DC Drive for regenerative and non regenerative operation
- Capacity from 25 Amp to 5150 Amp.
- 230VAC to 1000 VAC input, 3 Phase, 50/60 Hz
- Speed feedback via Tacho-generator, encoder or EMF
- 4 Analog Inputs,3 Analog Outputs, 1 Tacho-generator input, 1 Encoder
Input.
- 8 Digital Inputs, 8 Digital Outputs.
- Accuracy 0.005%, resolution 12 bit incl. sign
- Multi Protection Function.
- Remote/Local operation.
- Automatic Field Weakening.
- Auto--tuning for armature, field, speed controller and flux.
- Communication via data-bus.
- Human-Machine Interface.
- More than 300 additional function block programmable via Windows.
Standard DC Drive Enclosures
ABB Drives uses a common, robust cabinet design with a frame body (steel, 2.5
mm thick) and softline-design metal sheets (1.5 mm thick),all hot zink
galvanized. Standard height is 2.000 mm, plus 120 mm detachable hood, depths 636
mm. European as well as US standards available .
Users who need a ready-to-connect, stand-alone enclosed
DC drive with less engineering efforts, may consider this completely
pre-engineered standard cabinet (protection class IP21) with fastest
delivery time.
|
|
