| M7 SPARE PARTS |
 |
 |
 |

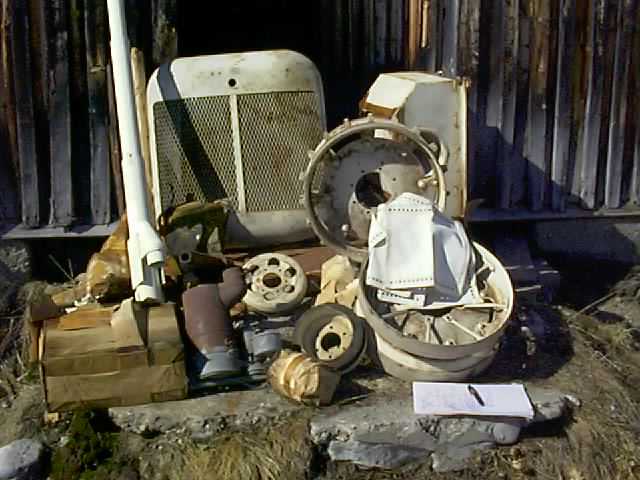

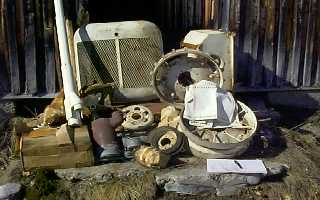

| Left: is a picture of bogies, flue, drive sprocket, idler sprocket, track tensioner covers, superfex heater, gas tank, rad grill, bogies bearing and more. |

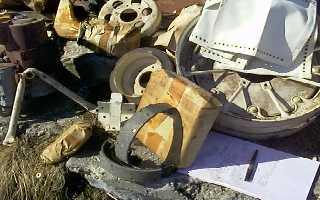

| Right: are bogie wheels,track tensioner covers, superfex heater, brake shoes, brake drum, rear track idler, track frame stop, steering a frame support and more. |

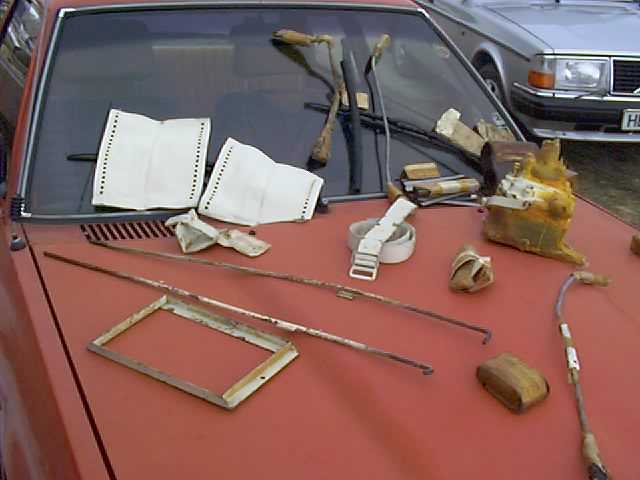

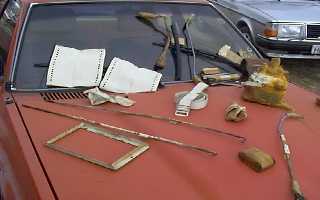

| LEFT: In cosmoline is a Aux transmission and a set of steering arm bearings, also in the picture are cosmoline tipped fuel lines and a double set of bogie bearings. Canvas track tensioner covers and jerry can strap with pre-heater hose and winshield wiper blades are also in the picture. |
 |
 |
| BRAKE SHOE PAIR 7004919 AS-215711 REAR IDLER WHEEL 7004159 AS-214471 TRACK DRIVE SPROCKET 7004134 AS-214470 BOGIE AND GUIDE FLANGE WHEEL 7004134 AS-214436 SPINDLE ARM 7004428 AS-214524 PRE-HEATER TELESCOPIC FLUE 7004496 AS-215825 FINAL DRIVE AXLE 7004496 AS-214381 SUPERFEX MODEL 452 ENGINE PRE-HEATER PN-452 AS-215472 AUXILIARY TRANSMISSION 7004052 AS-216594 FNL DRIVE AXLE OUTER CARRIER BEARING 7004140 AS-214431 FNL DRIVE AXLE CARRIER BUSHING 7004929 AS-213800 RADIATOR GRILL AND SHELL 7004600 AS-214304 TRACK SUPPORTING ROLLER ASSEMBLY HUB 7004131 AS-214435 BOGIE WHEEL HUB ASSEMBLY 7004143 AS-214391 FRONT TRACK FRAME STOP 7004119 AS-215823 SPINDLE 7004386 AS-215443 FUEL TANK --------- ----------- M19 SKIS --------- ----------- PRE-HEATER FUEL LINE 7004340 AS-315703 FUEL LINE TO PRIMER 7004463 AS-215403 DRIVE CHAIN HALF LINK 7009414 AS-215998 DRIVE SPROCKET FLANGE SPACER 7004160 AS-214401 WIPER BLADE 7004913 AS-215716 BOGIE WHEEL BEARING SPACER 7004148 AS-214479 FINAL AXLE CARRIER BUSHING 7004929 AS-213800 TRACK RSC 7004826 AS-214512 PRE-HEATER HOSE 7004469 AS-215493 SPROCKET FLANGE SPACER 7004160 AS-214401 AUXILIARY STRAP 7004974 AS-215721 BATTERY BOLT 7004630 AS-215555 BATTERY FRAME --------- ------------ FRONT SKI REST BRACKET 7004808 AS-215515 BRAKE PEDAL PADS 7004542 AS-214542 PIVOT ARM WEDGE 7004168 AS-214419 TRACK FRAME STOP BUMPER 7004926 AS-215816 BOGIE WASHERS 7004150 AS-214476 CLUTCH SHIFT LEVER BRACKET 7004044 AS-215813 BRAKE DRUM 7004123 AS-213791 TRANSMISSION CASE GASKET 7004075 AS-216636 FUEL TANK STRAP 7004504 AS-215502 |
| NOMENCLATURE |
| STOCK NO. MFRS. NO. |
| Below is a partial list of spare parts I have available for sale. All of the parts are NEW OLD STOCK original. The parts do vary from pristine to rusted , but by and large are in excellent condition. Contact me for prices and availablity . |
| Okay, there here! Yup 4 M-19 snow trailers!!!! As I write this 2 have been sold and a third is promised. So I have one trailer left and I will not be getting ANY MORE. Email me , first page, for details and price. The price represents three country shipping and original purchase so its not for the feint of heart. BUT LOCATED IN CANADA, they can be shipped to the states and there are fewer M19's known then there are M7's . Nice add on to be sure. |
