MY DREAM AUDIO PROJECT

I just got 5 Lm3886 and 5 Lm4780 from NS and started my Dream audio project. 3 way active speaker system and one subwoofer. I had finished making PCBs for Lm 3886.

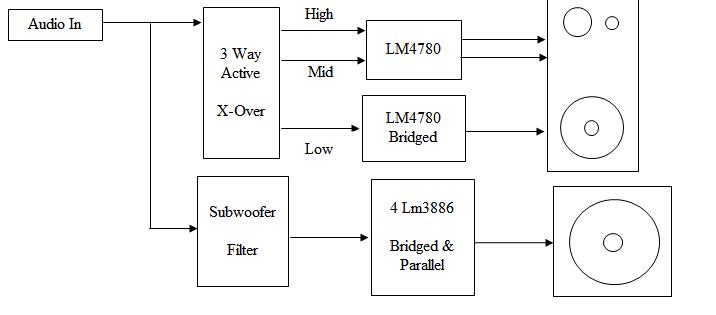

Schematic is as follows

Speaker Sets  - Floor standing, Woofer (10", 100 Watts), Mid-range(5.5", 50 watts) and Tweeter (50 Watts)

Subwoofer - Sealed enclosure, 10", 200 Watts

3 Way active X-over

Subwoofer filter based on Sound west project 48 - www.sound.westhost.com\project48.htm

-

Some Pics

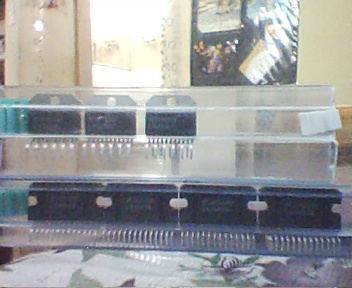

- ICs shipped from National Semiconductor

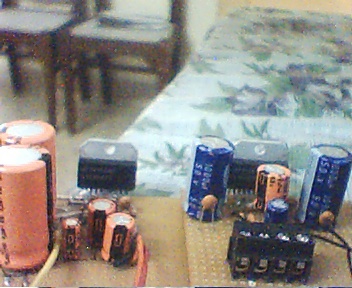

- Test circuit for Lm3886 made on strip board, tried with 2 different component layouts.

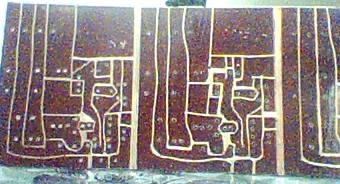

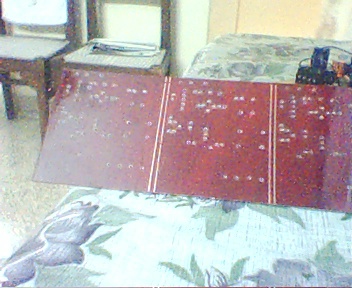

- PCBs for Lm3886 in progress  => My method of making PCB

----

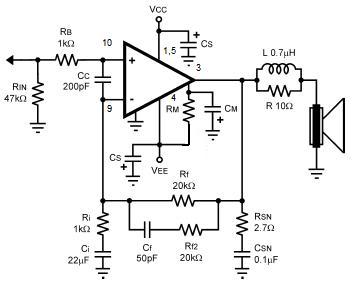

Circuit

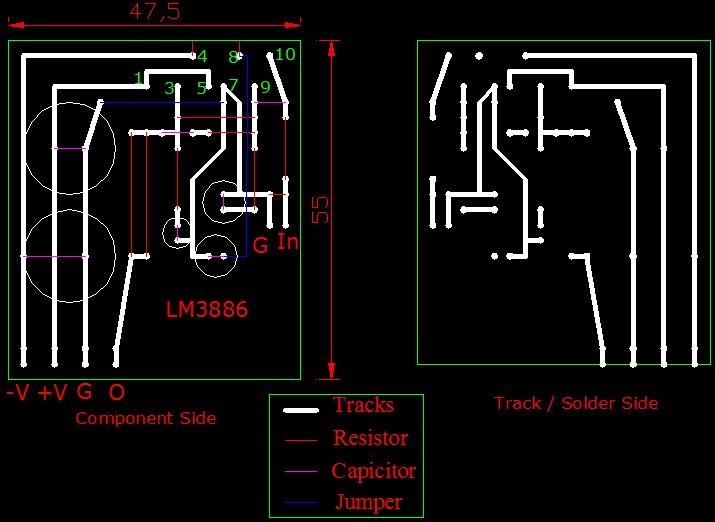

PCB and component layout.

This layout i have made after studying some layouts available on internet. I have tried to keep separate Power ground and

signal ground, and also include star grounding for feedback.
