 BookMarks_morse  ---  "PC2D

                 Parallel-C-2-Diff  Filter :


***   (Home)  ***

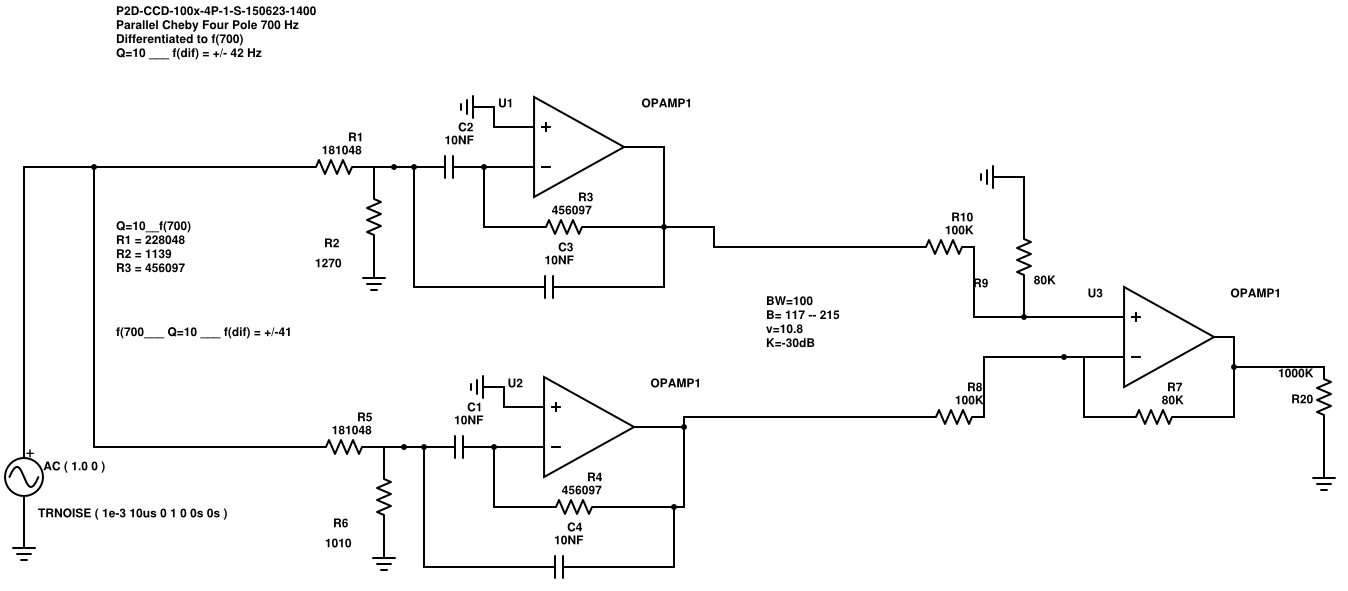

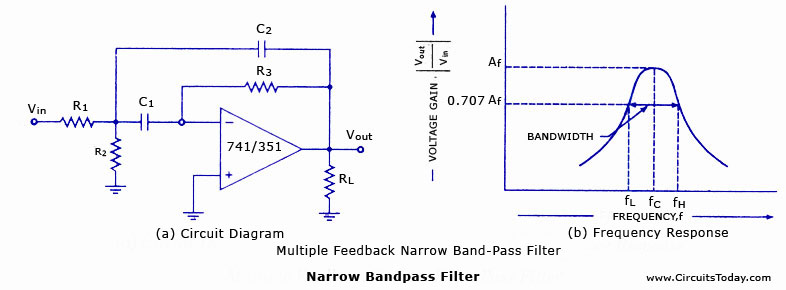

 (whole circuit)   CTD

*****************************************************************************************
Note:    the -3dB level is equivalent to 700 mV level in these Bode Plots.

*****************************************************************************************

*** Discussion to be added :

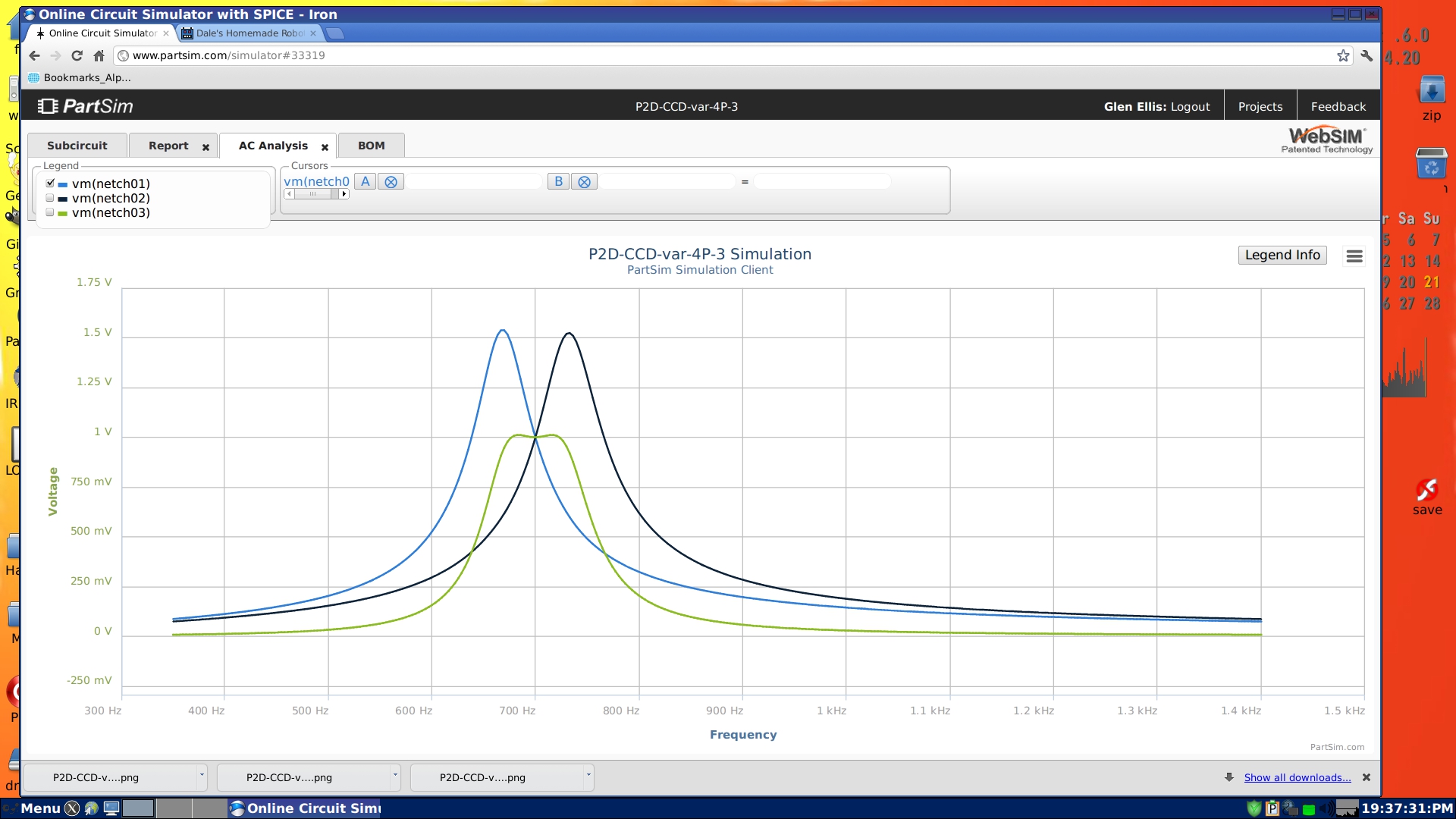

*** The Final Narrow BandPass is BW=100 @ -3dB, and BW=150 @ -12dB.
*** Slope of bandpass is 5, variation of 5 Hz per dB of attenuation.
*** Several versions of this design have been tested, and results are similar.

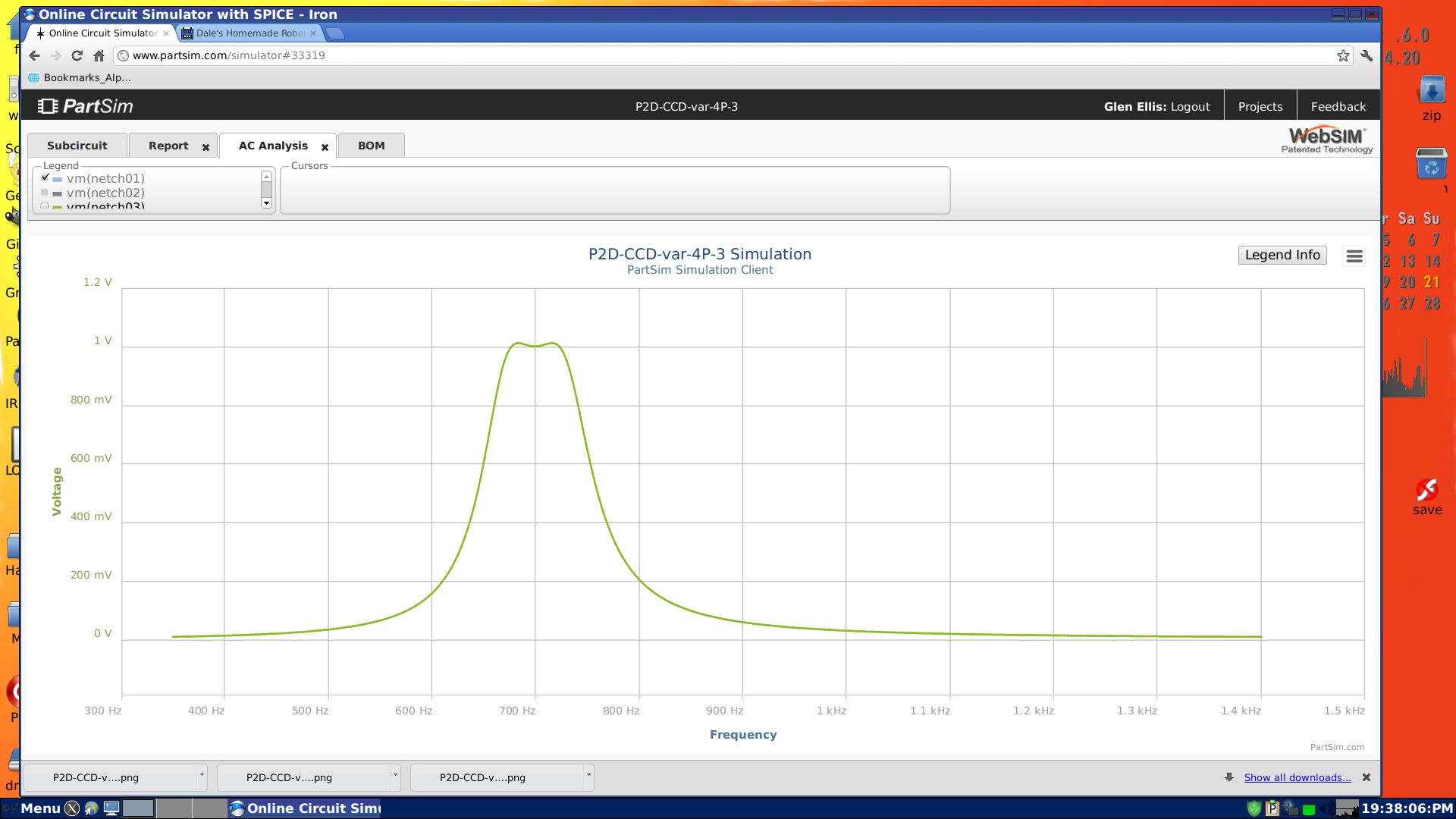

*** Narrow BandWidth of 100 Hz, with 7 Hz spread per dB attentuation.
*** Notice the Flat-Top PassBand of this Narrow filter.



*****************************************************************************************

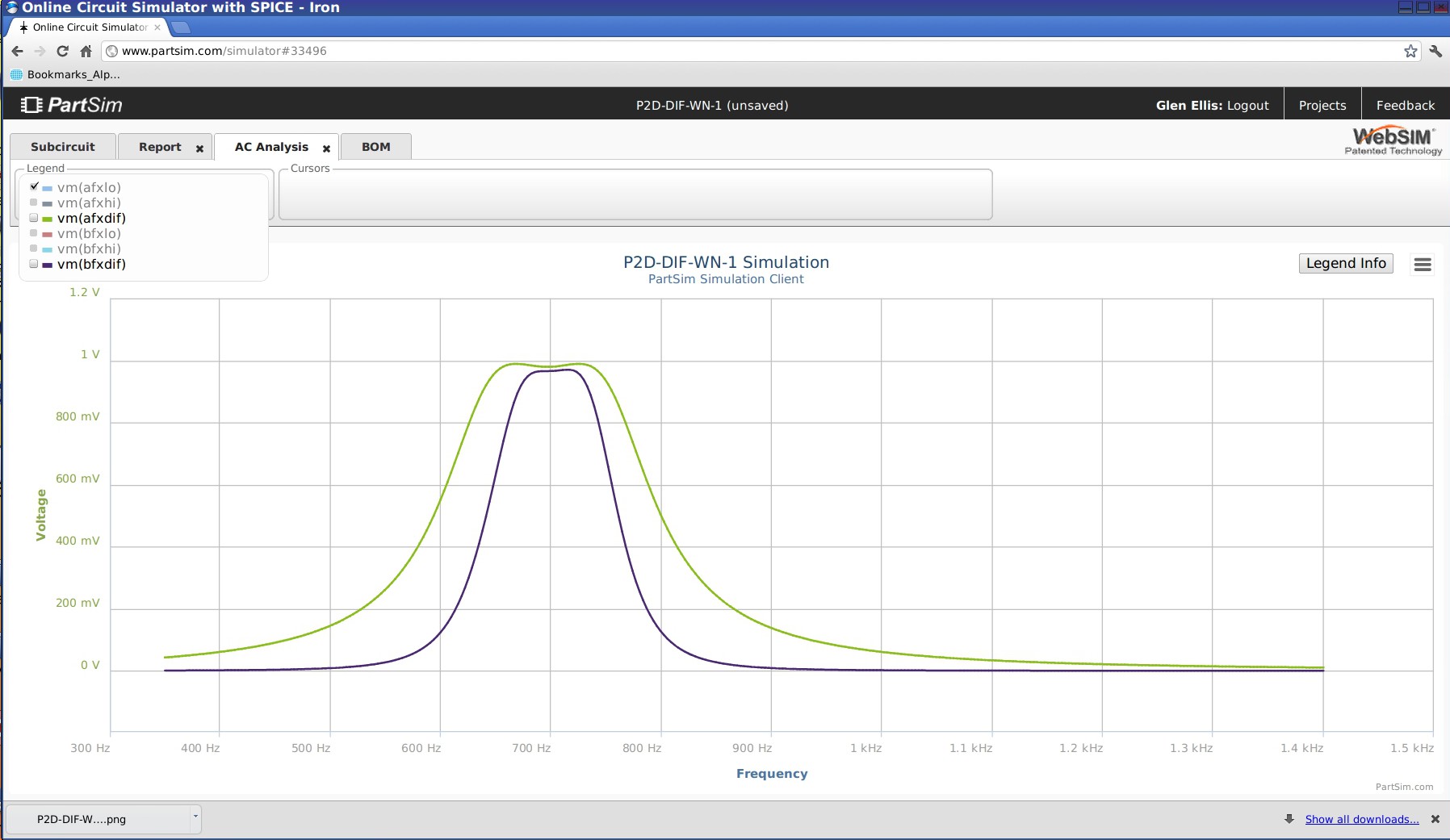

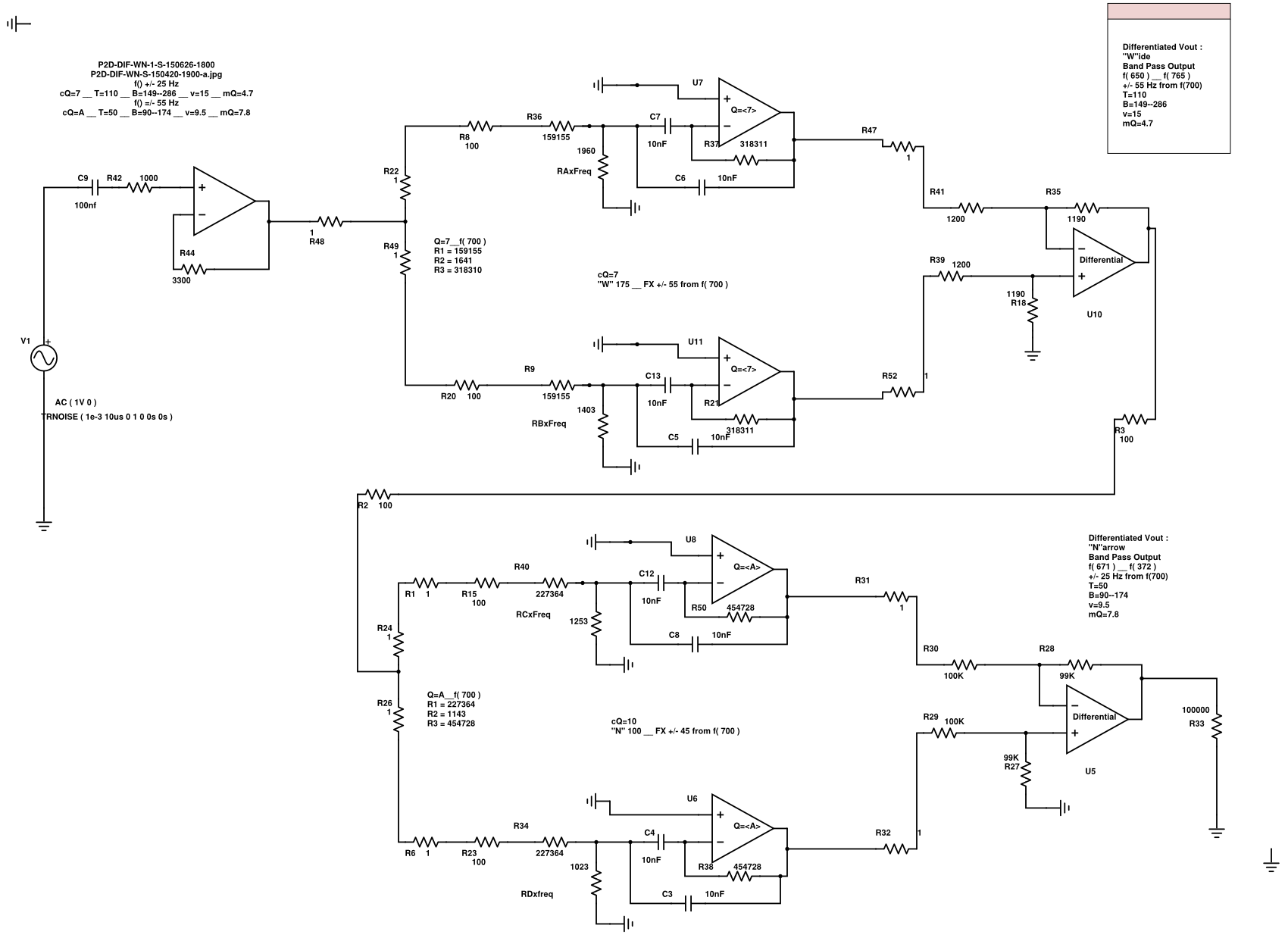

*** Developed into a "W"ide and "N"arrow circuit : BW=175Hz and BW=90Hz

*** Narrow BandWidth of 90 Hz, with 7 Hz spread per dB attentuation.
*** Notice the Flat-Top PassBand of this Narrow filter.
*** Developed into a "W"ide and "N"arrow circuit : BW=175Hz and BW=90Hz

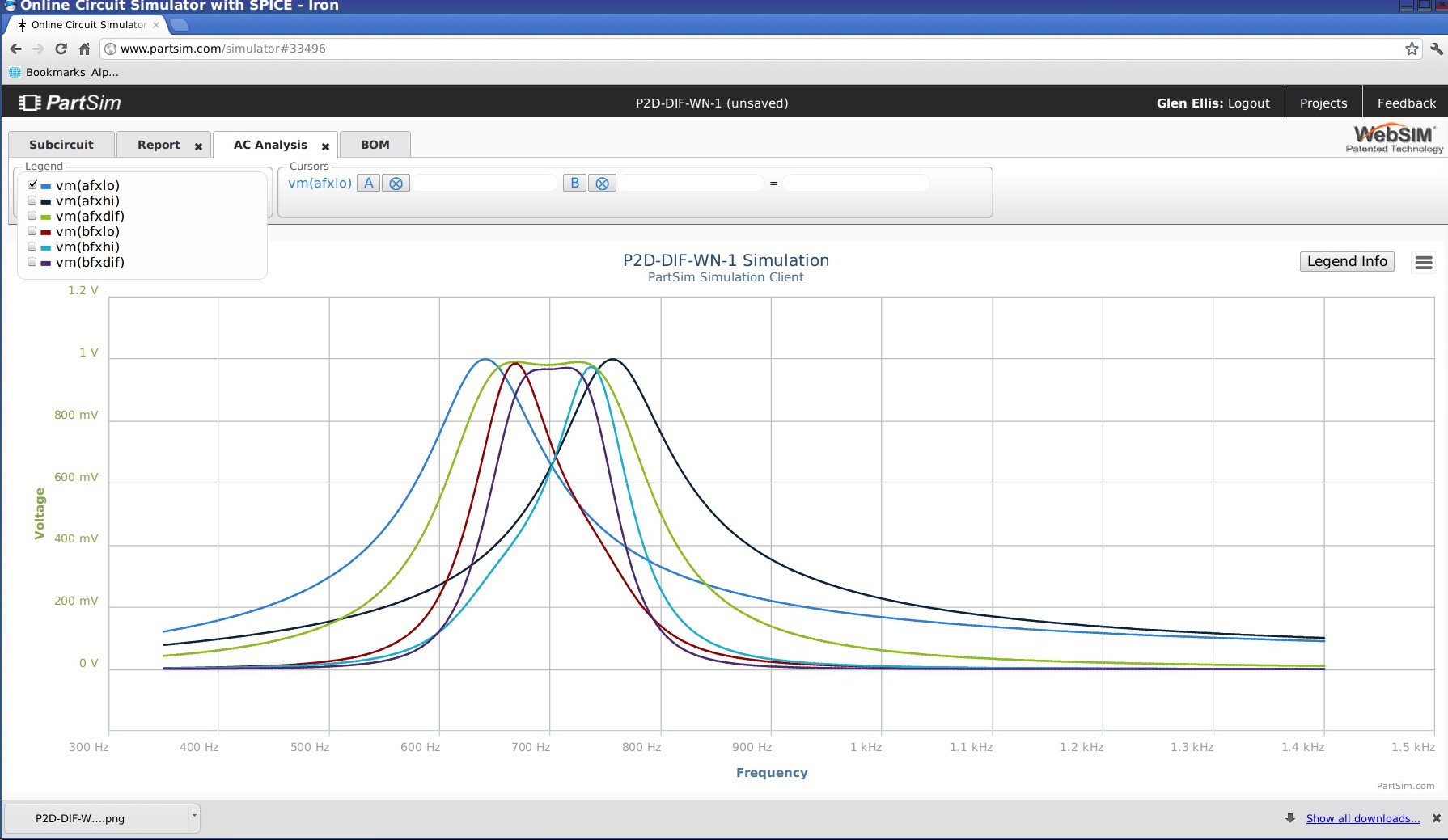

*** Showing the four auxillary peaks.
****************************************************************************************
************



***     P2F Parallel-to-Filter Variation Designs

*********************************************************************************************************************

*********************************************************************************************************************************************
