/aimg-morse-man          the "Advanced"    AF"X"    Filter Circuit  ( early version )


*** ( Read the AFX basic pages before reading this schematic. )


*** Filter Topology Design choices:
*** Multi-FeedBack topology was chosen because :
*** (1) input vs output impedances match well, intra-stage.
*** (2) single resistor Frequency Control on each stage.
*** (3) Frequency Adjustments alters gain by only the square-root of the f(change) .
*** (4) the Roof-Triad-Differential design is very tolerant of component variations .
*** (5) Voltage levels are aprox. 1 V range well above the noise floor.





Note:    All Filter and Differential stages are set to aprox. standard 1V peak
                      (a) to be above noise
                      (b) for easy comparison from stage to stage , thus easy visual analysis

Note:    Power Supply ByPass caps are not shown.
             OpAmp Null trim pots were not used, in this development with LM-324 quad OpAmp chips.
             All Filter Stages are MFB, effectively AC audio coupled, thus self-centering.

Note:    For each Roofing-Triad-Differential Filter (RTD) :
             On each Differential chip, the (+) 1K to ground should be adjusted
             between 1K and 5K to allow bias currents to equal out (+) vs (-).
             The indicated 1 K Ohm was used to satisfy ngSPICE calculations.
             In this real circuit, for the LM-324 quad OpAmp, aprox. 4K is good.  FET OpAmps may be different.
             A trim pot and Oscope will allow adjustment of RTD filters
             to produce a apox. flat-topped 250Hz wide Roofing Shaped PassBand, with NO peak.




*** The ADVANCED AFX has Near DSP narrow CW filtering.

*** Preceeded by Three Roof-Triad-Differential Filters.
*** Hi-Notch = -60 dB and -26 dB under Fx04
*** Dual Notches aprox. +/- 200 Hz from 700 Hz , ie, 520Hz and 920Hz.   Maximum Stop-Band Attenuation is under -98 dB.
*** Based on Differential Filter, UDIF, and including Dual-Notches, the Band-Pass is 90Hz
*** Based on the inclusion of the  UQ20 final narrow filter, including the dual-notches, the Band-Pass is 35Hz.

*** Stop-Band floor is -98 dB, depending on the Filtering selected.  UDIF plus UQ20 provide the extreme deep -98dB to -130dB.

( Advanced AFX  is  further developed in the "Variable AFX 'V' design", which incorporates single User control of f(0) for all filter stages. )

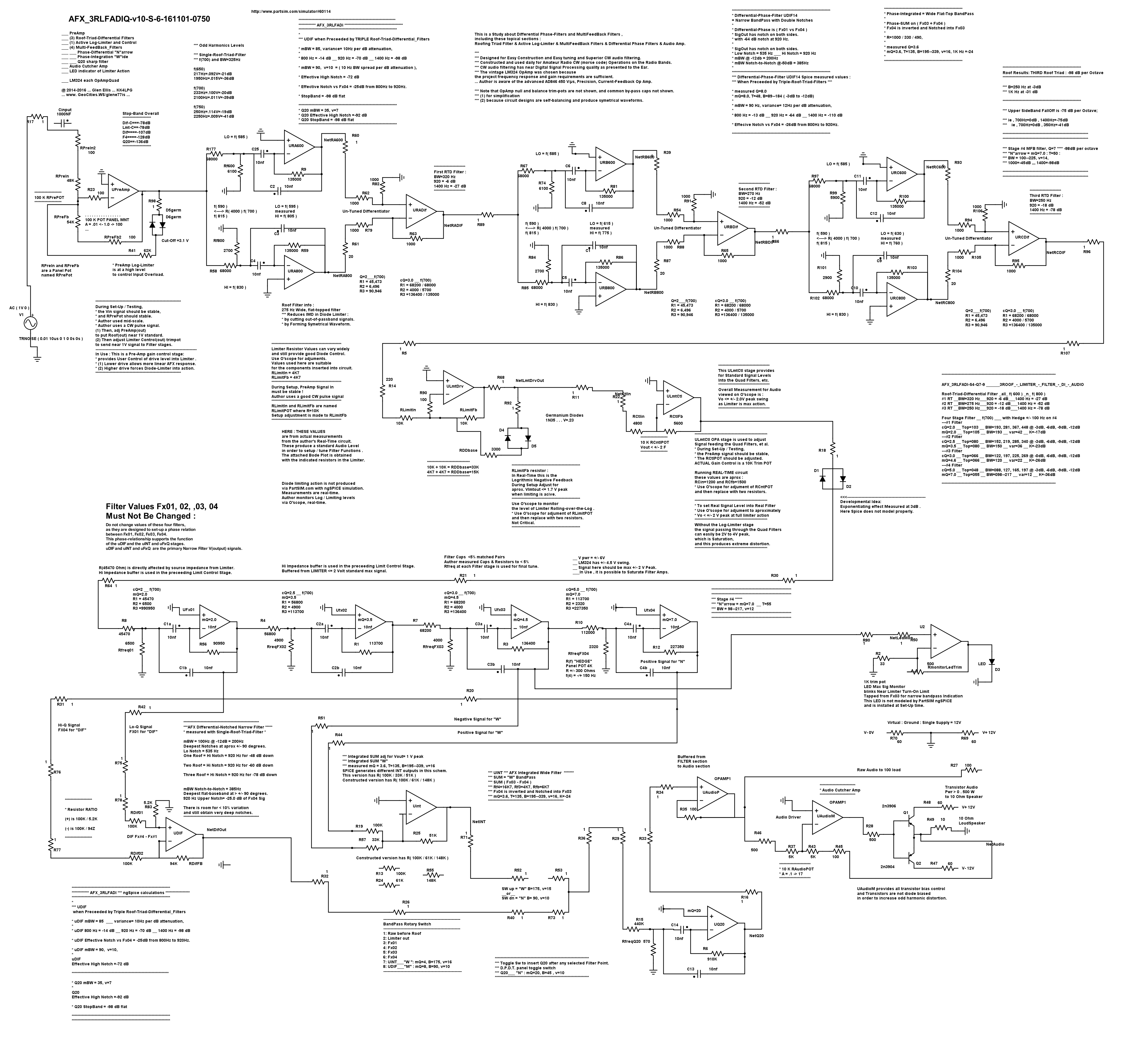

***   Advanced "AFX"   with   THREE Roof-Triad-Differential Filters

*** click image for hi-res schematic.    Included here is a final Q=20 filter.

*** Below : Preceded by Three Triad-Differential Filters :
*** UDif Hi-Notch = -60 dB and is also -26 dB under Fx04 at 920 Hz.
*** Q20  Hi-Notch = -80 dB and is also -46 dB under Fx04 at 920 Hz.
*** Stop-Band floor is -98 dB flat.


Stop-Band Spice results:

*** Roof Dif-C       =128uV=-78dB
*** matched by Lmt-Ctl   =-128uV=-78dB
*** Filter 04 =304nV=-130dB
*** Stage uDif       =3.5uV=-109dB
***



*** Experiments show that a 10% component change in Roof-Triad-Differential stages
*** will have little effect on the final Fx04 or DIF14 stages.

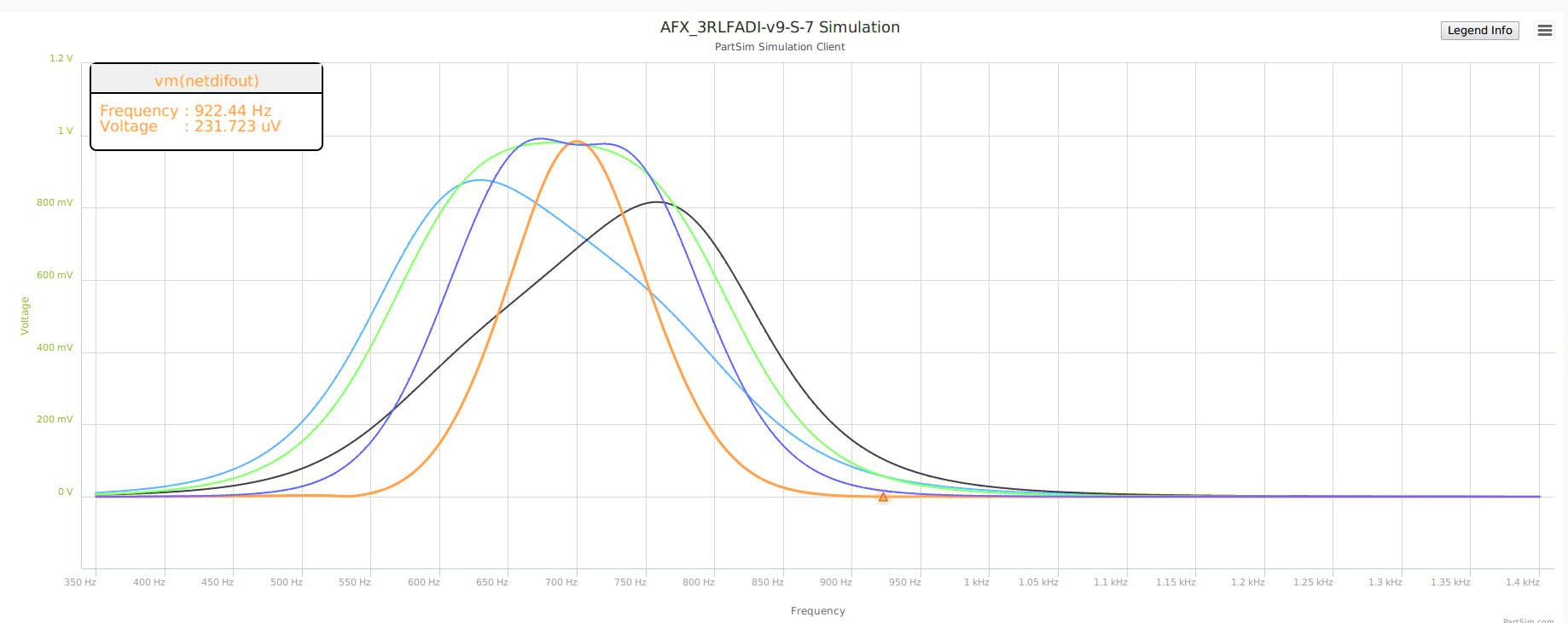

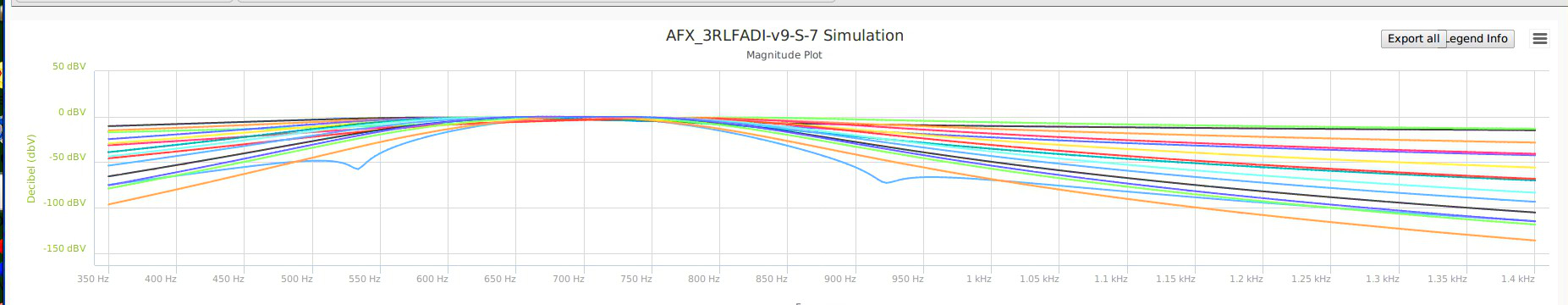

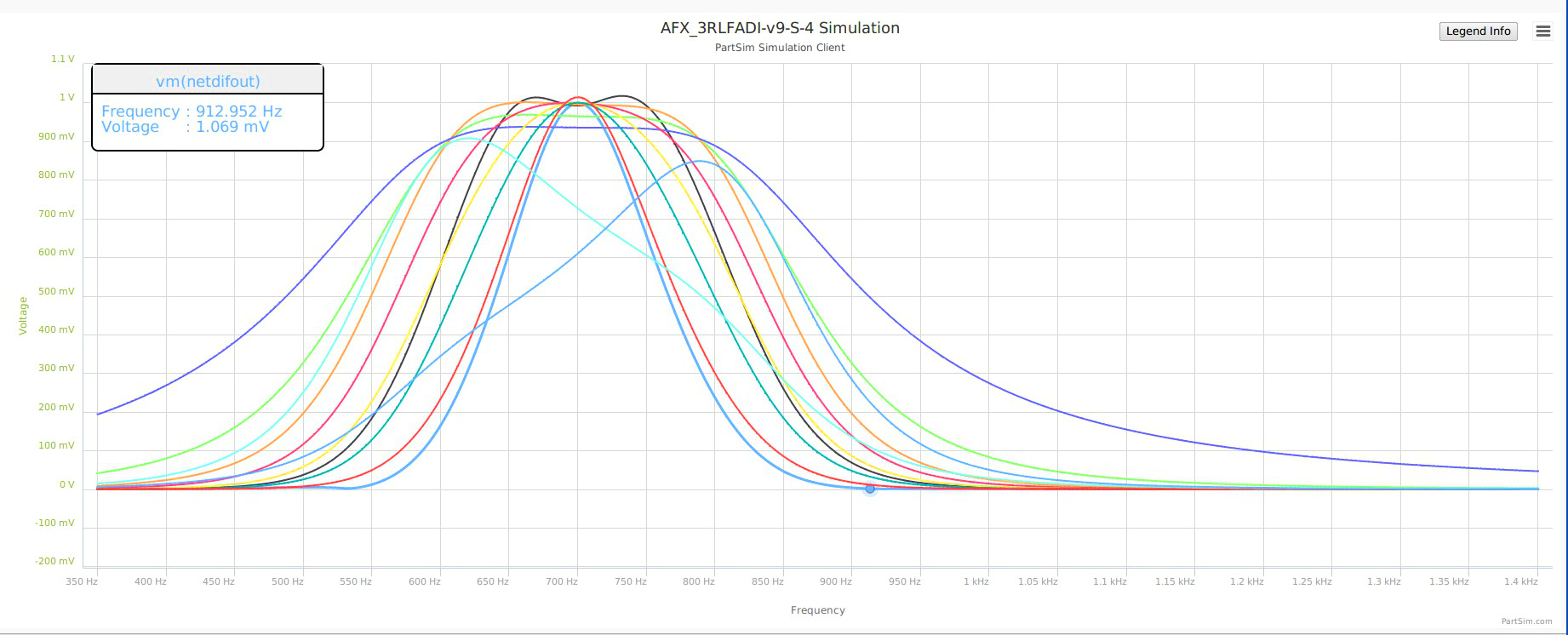

*** Linear Bode clearly showing  the  very deep  Udif Double-Notches  are below the Fx-04 filter curve.
*** Also note the slight raising of Stop-Band after the Notches take effect (blue trace).
*** The energy that  is being filtered out by the Notches is pushed into the Stop-Band energy.
*** Authors opinion is that the -60dB Notch Depth at 920Hz is more important than the final Stop-Band.




*******************************************************************************************************************************************
The latest version includes a final Filter "Q20"
which produces much greater attenuation at the dual-notches and the stop-band.
Notice that there are two traces showing a dual notch filter
First is the UDIF  dual-notch at BW=90Hz and -70 dB.
Second is   UQ20 final filter  at BW=35Hz and -92 dB for double-notch.



Each of these six Magnitude plots show
the ever deepening dual-notches for the three final filters.

Look for the "cursor marker" ( big round dot )
and read the data in the little window.
Notches at 922Hz are -46dB,   -70dB,   -92dB
The plots are of : blue Netsf4,   green NetUDif,   orange NetQ20.

*** Look for the Cursor mark ( big round dot )

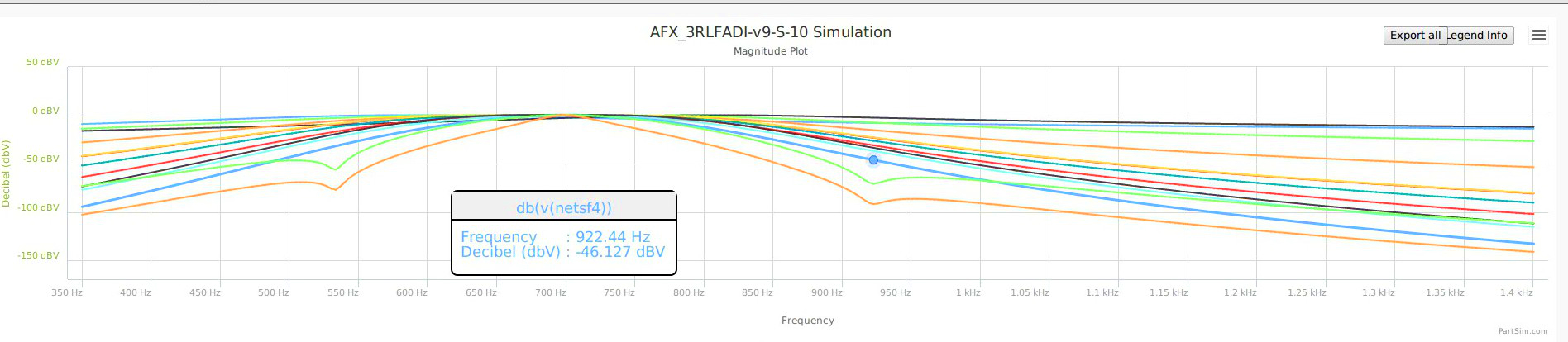

*** NetSF4 f(925Hz) ( hi notch ) (blue trace)

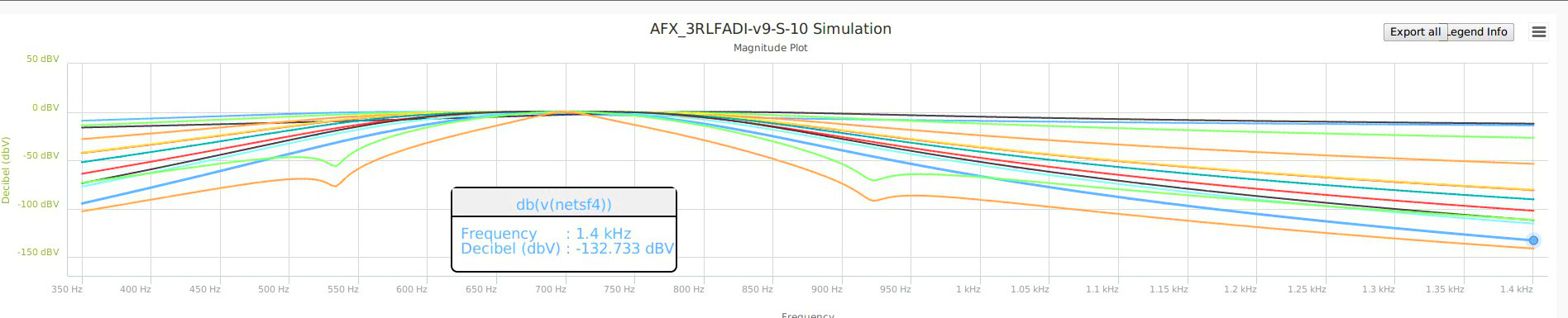

*** NetSF4 f(1400) ( stop band ) (blue trace)

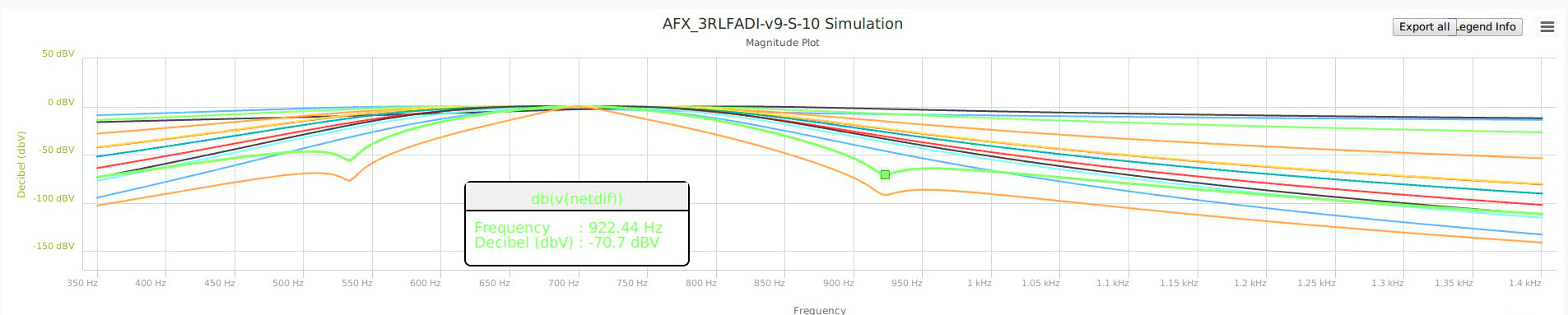

*** NetUDif f(925 Hz) (notch) (green trace)

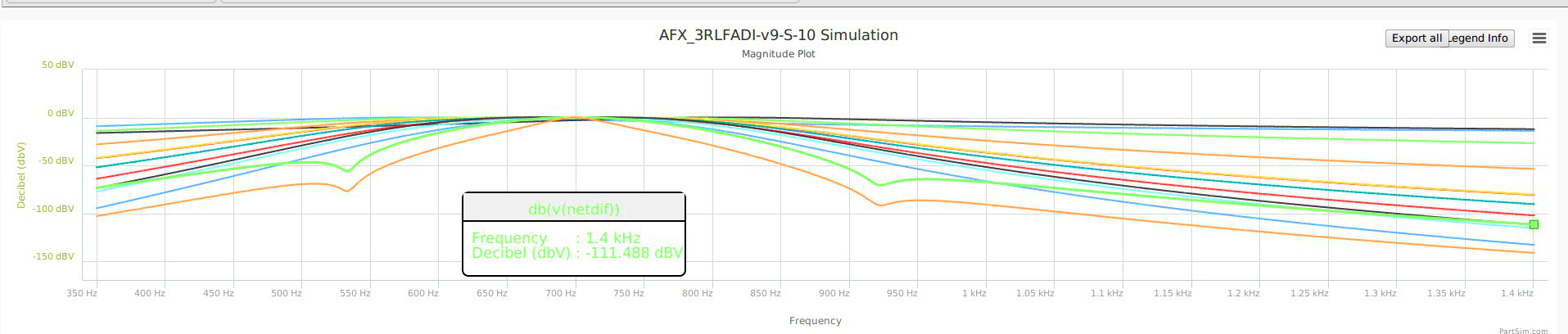

*** NetUDIF f(1400) (stop band) (green trace)


*** Last two bodes are for the Q20 filer,
*** applied after Three Roofing Filters + the Quad filters + the DIF filter.
*** NetUQ20 pushes the stop band down much further.
*** The important 922 Hz Notch = -92 dB,  and 1400 Hz StopBand = -141 dB.

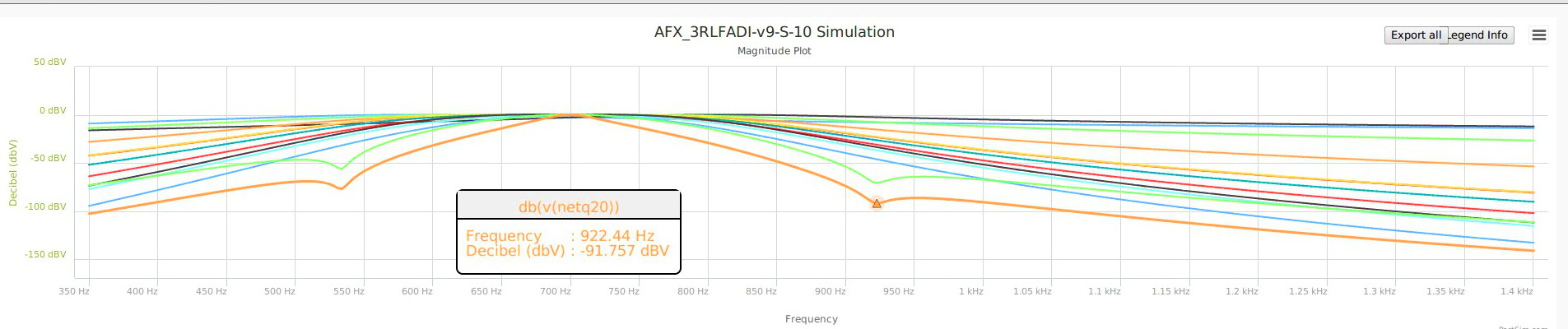

*** NetUQ20 f(925 Hz) (hi notch) (orange trace)

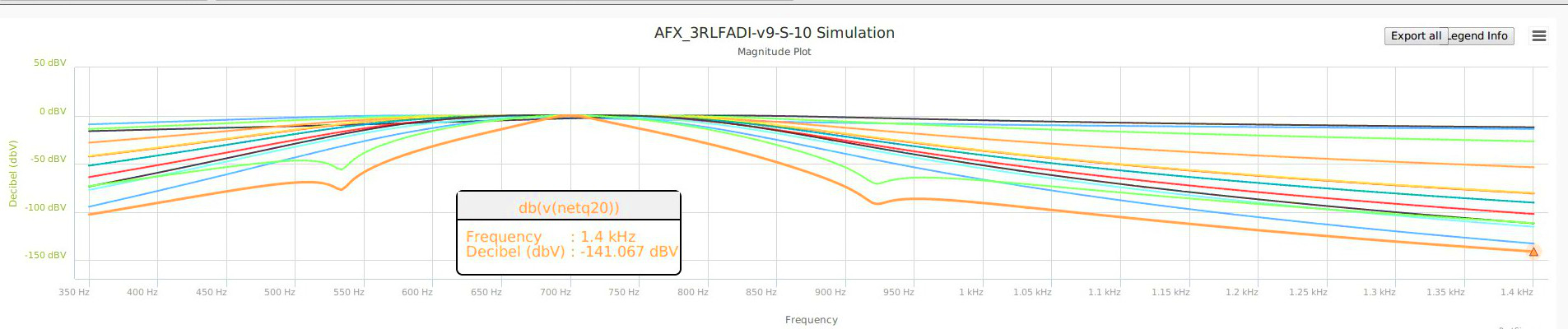

*** NetUQ20 f(1400) (stop band) (orange trace)





************************************************************************************************************************************************************************
