aimg_Morse-Man.jpg    AF'V'   T.E.S.T.   Single Roof Filter and variable Bias for Dual-Notch Differential Stage



******* GC_ET_AFV-1RL-V4F-D-test-FM.html *** FET ***

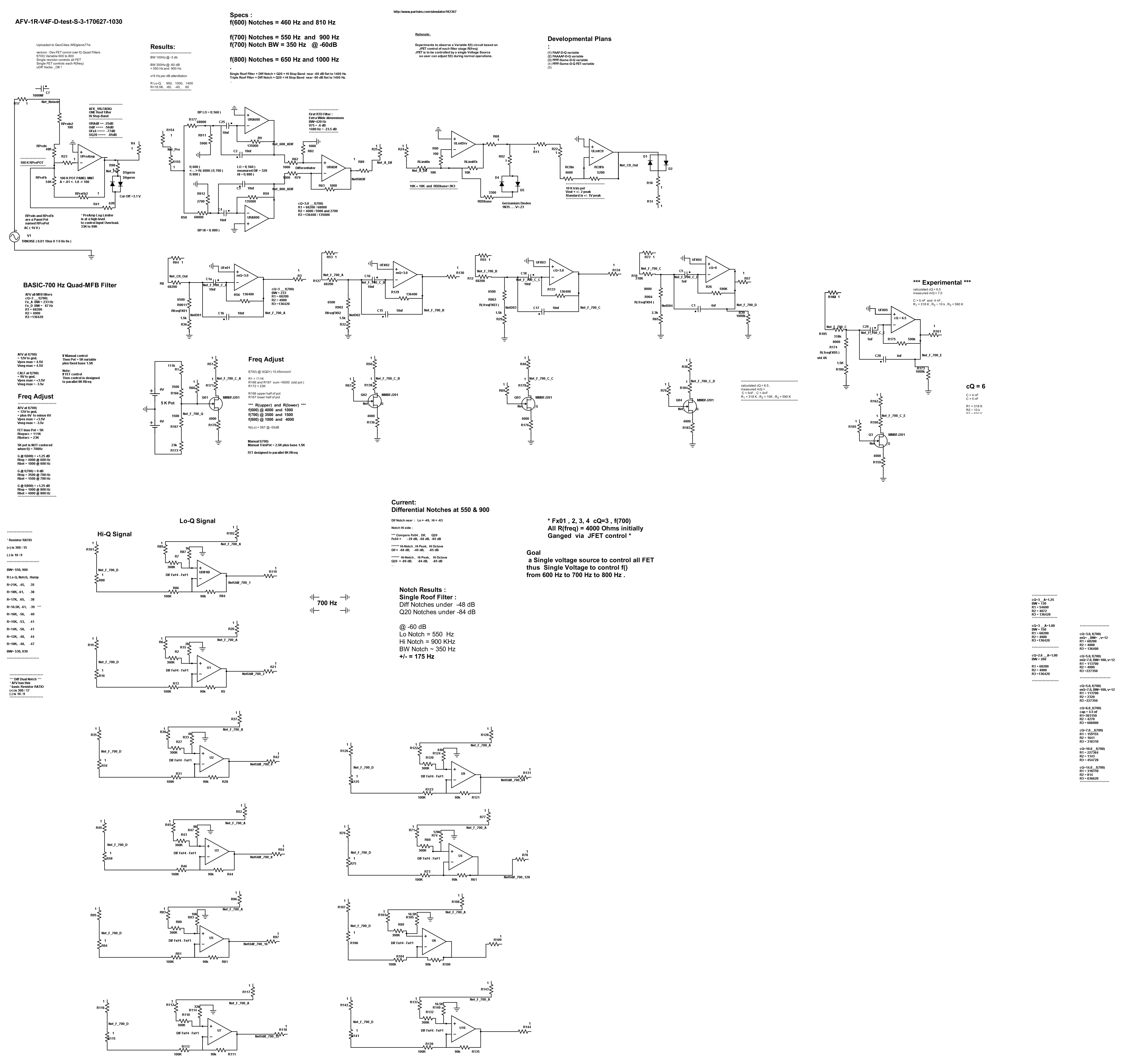

******* Single Roof Filter and variable Bias for Dual-Notch Differential Stage
******* Spice runs to show effects of various Dual-Notch R(freq)          *******
******* Multiple Frequencies at One Time to Compare R(freq) visually
*******     while the Dual-Notch  Bias  is varied widely.

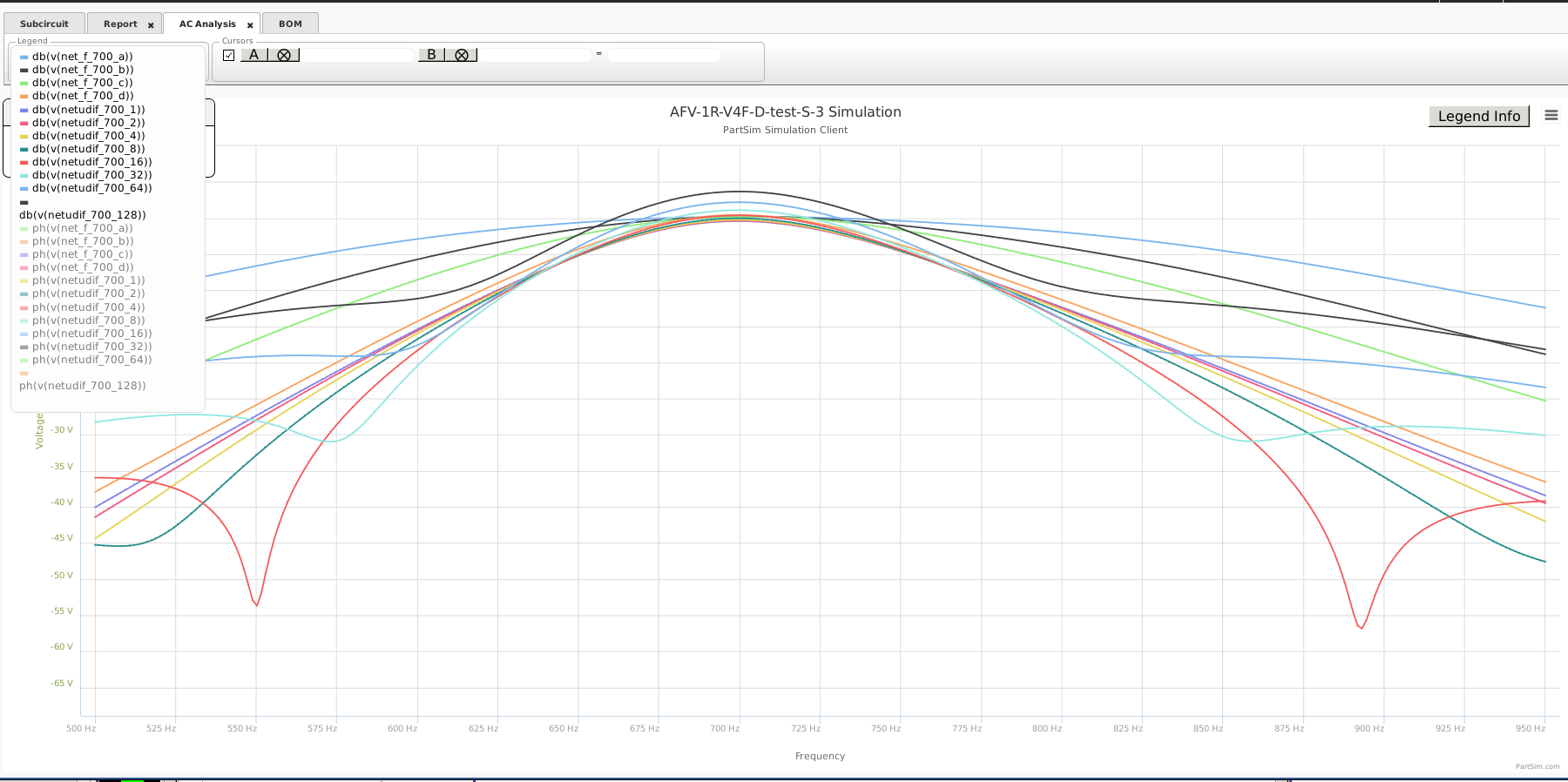

******* Below : Notice the Six Dual-Notches displayed.
******* This shows a comparison of the Depth of these Calculations .
******* Survey indicates that R(freq) is best at 18.5K (RED)

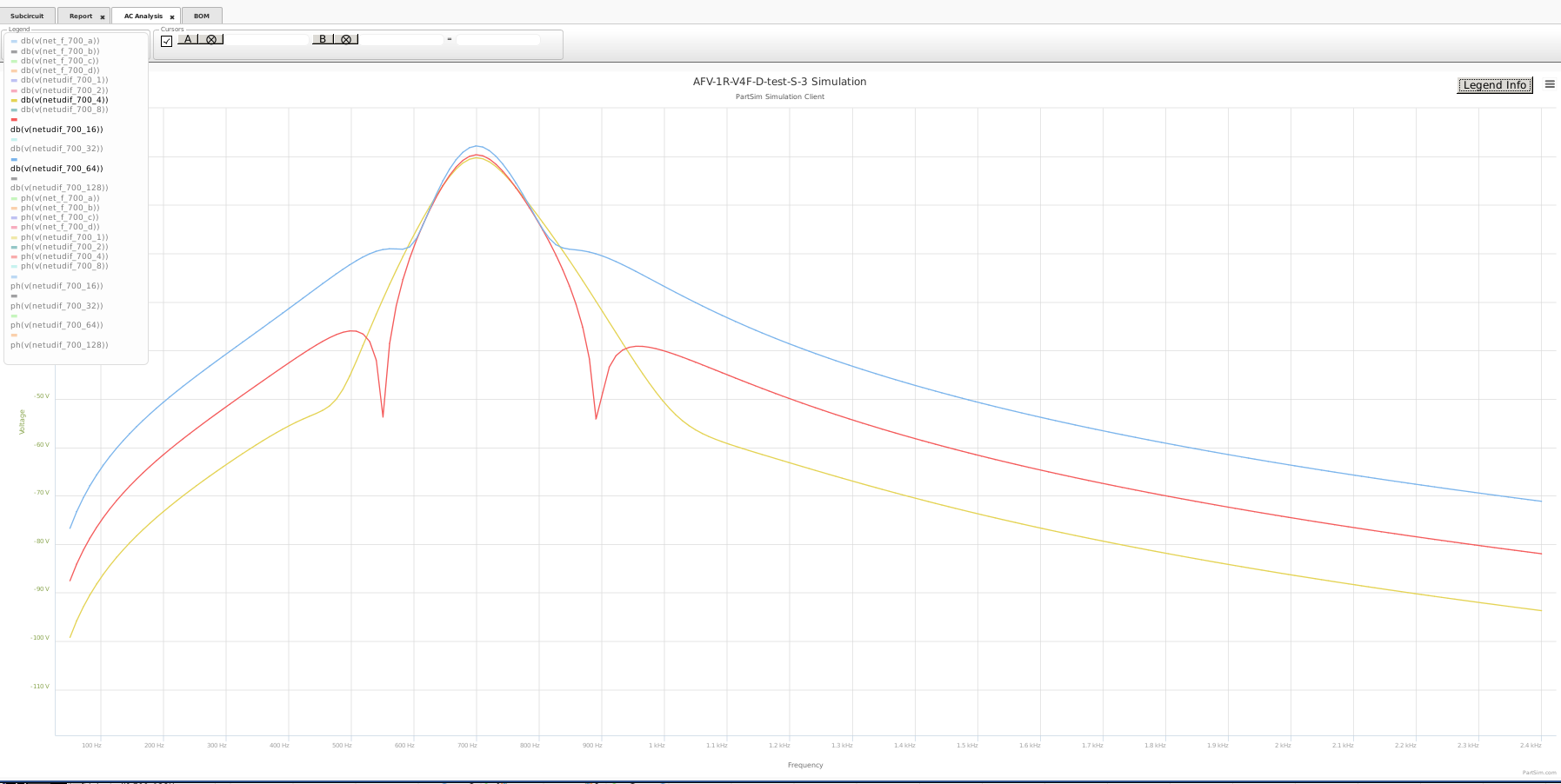

*** ALL PassBands Comparison : R(18.5K) is most useful.

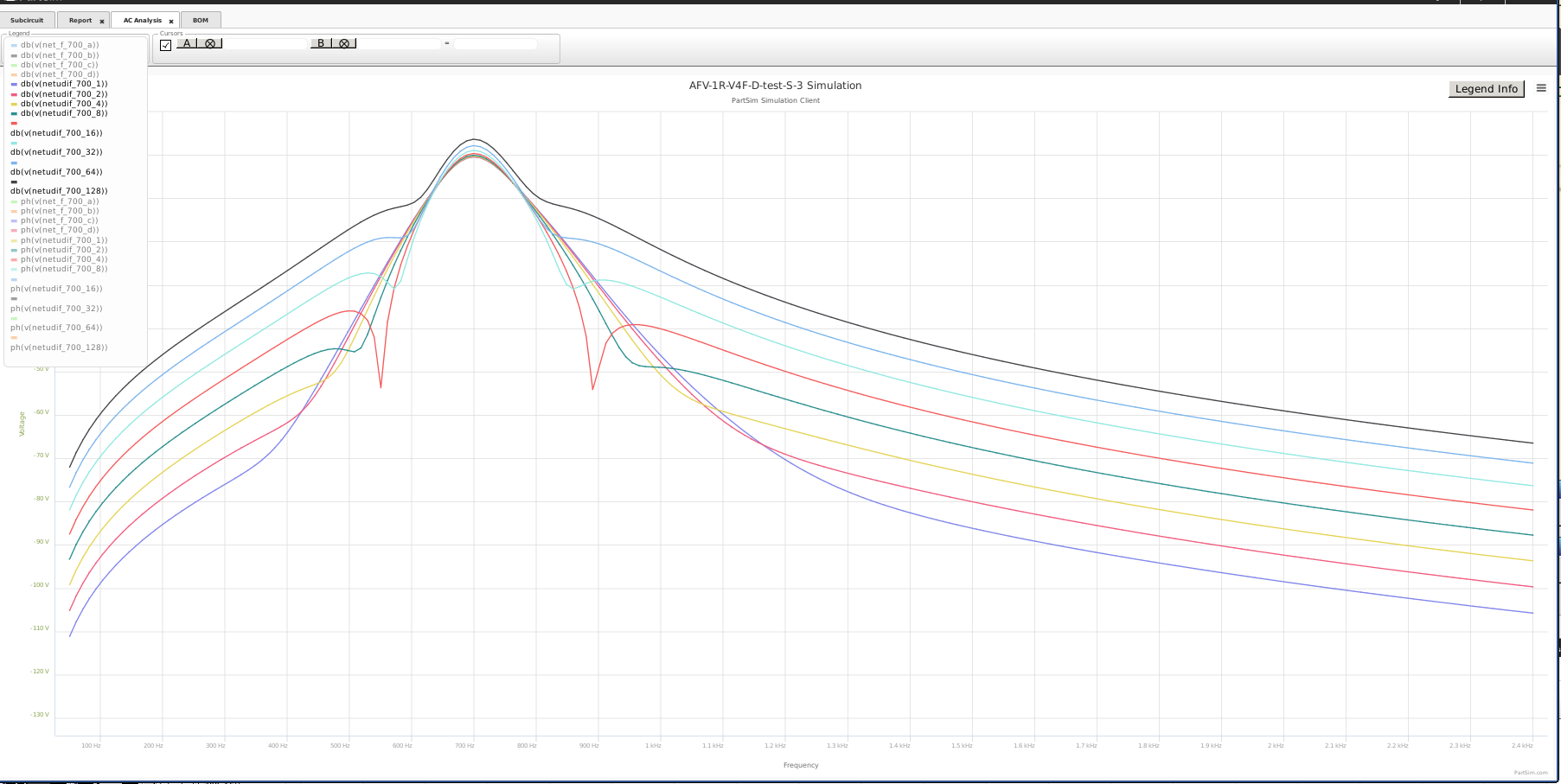

*** Major PassBands Comparison different views : R(18.5K) is most useful.




*** Three PassBands Comparison : R(18.5K) is most useful.






*************************************************************************************************************
