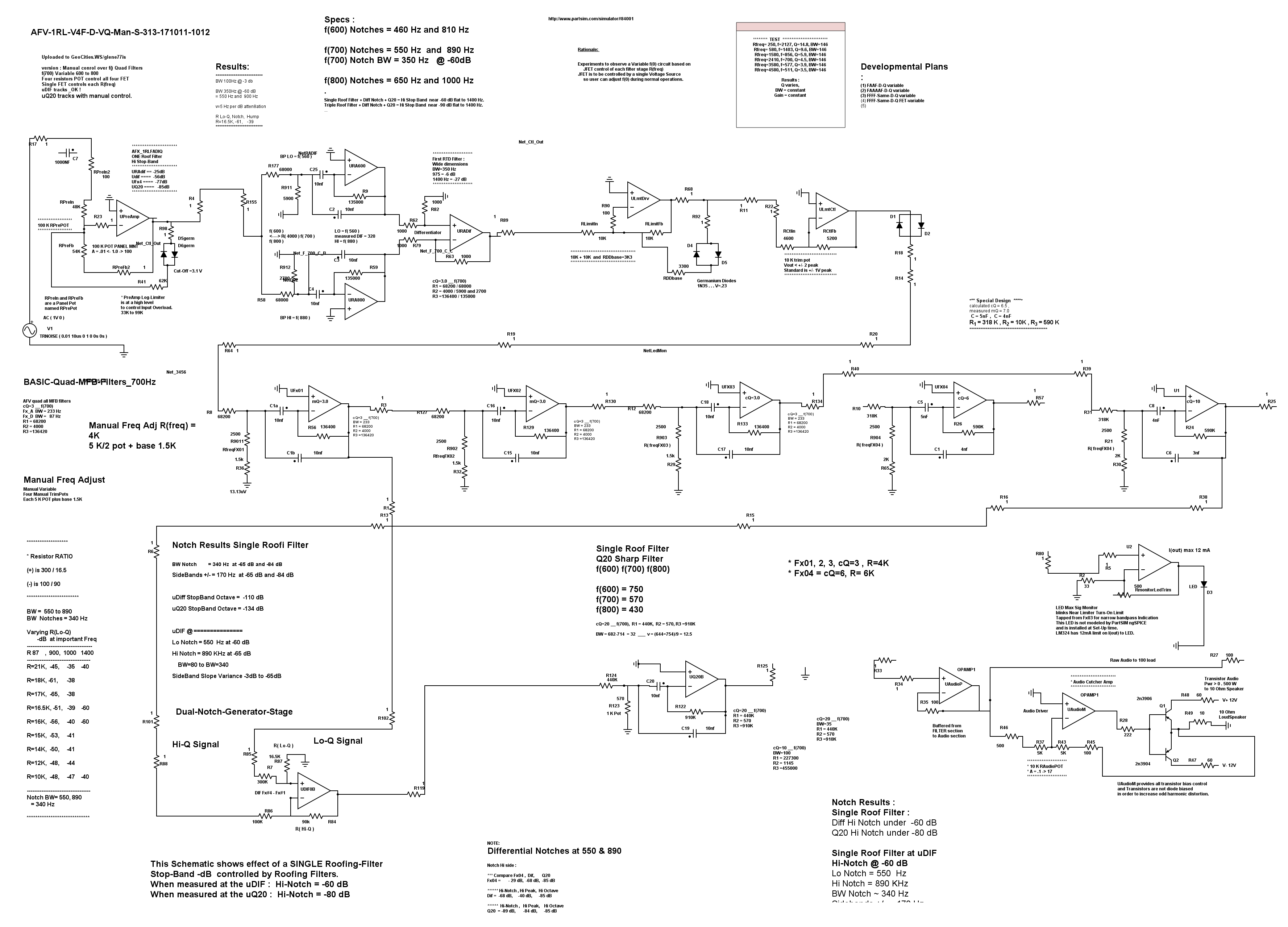

aimg_Morse-Man.jpg       AF'V'   Single Roof Filter  and  variable f()

                            ******* GC_ET_AFV-1R-V4F-D-VQ-Man.html *** Manual Tuning ***

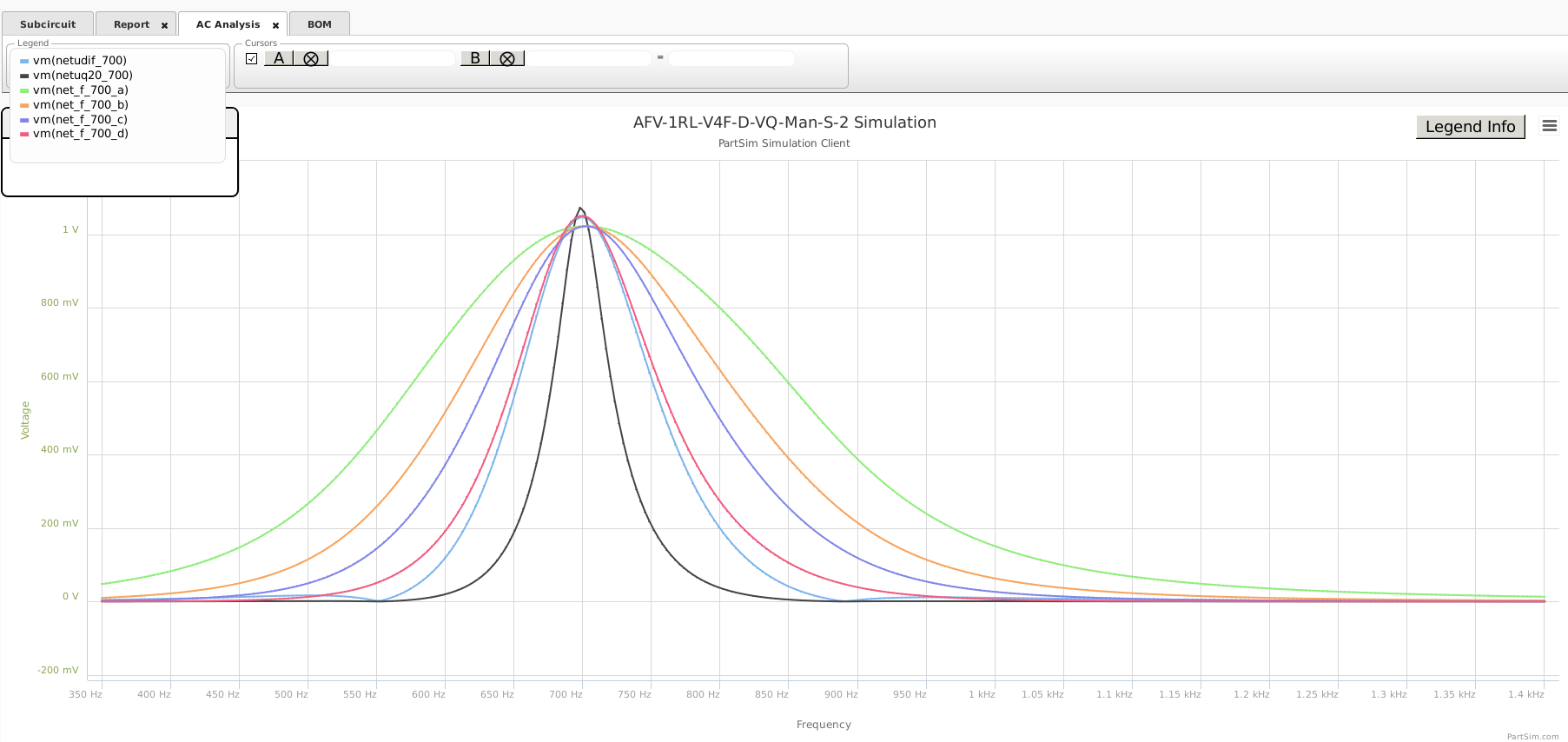

***********************************   Notice that the  600 - 700 - 800 waveforms  have good BandPass shapes.
******************** the very wide signal is the Roofing Filter Output, which will restrict the variability of the central f() signal

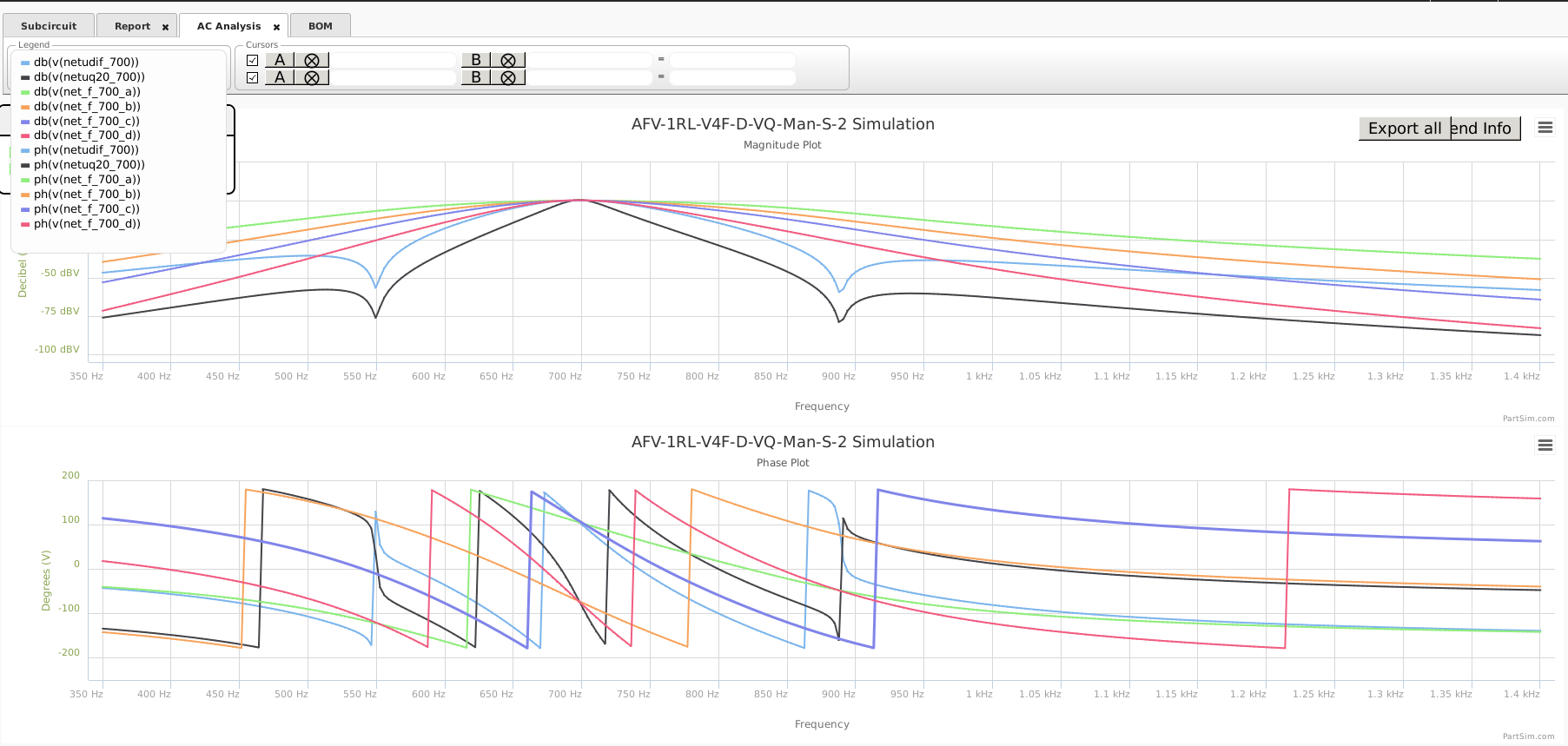

******************** Notice that at all three frequencies, the peak amplitude of the final signals stay within 0.3 dB of the f(700) signal.



********************************************************************************************************************************************
