aimg_Morse-Man.jpg    AF'V'    Single Roof Filter  and  FET controlled variable f()

                                     ******* GC_ET_AFV-1R-V4F-D-VQ-Fet.html *** FET tuning ***

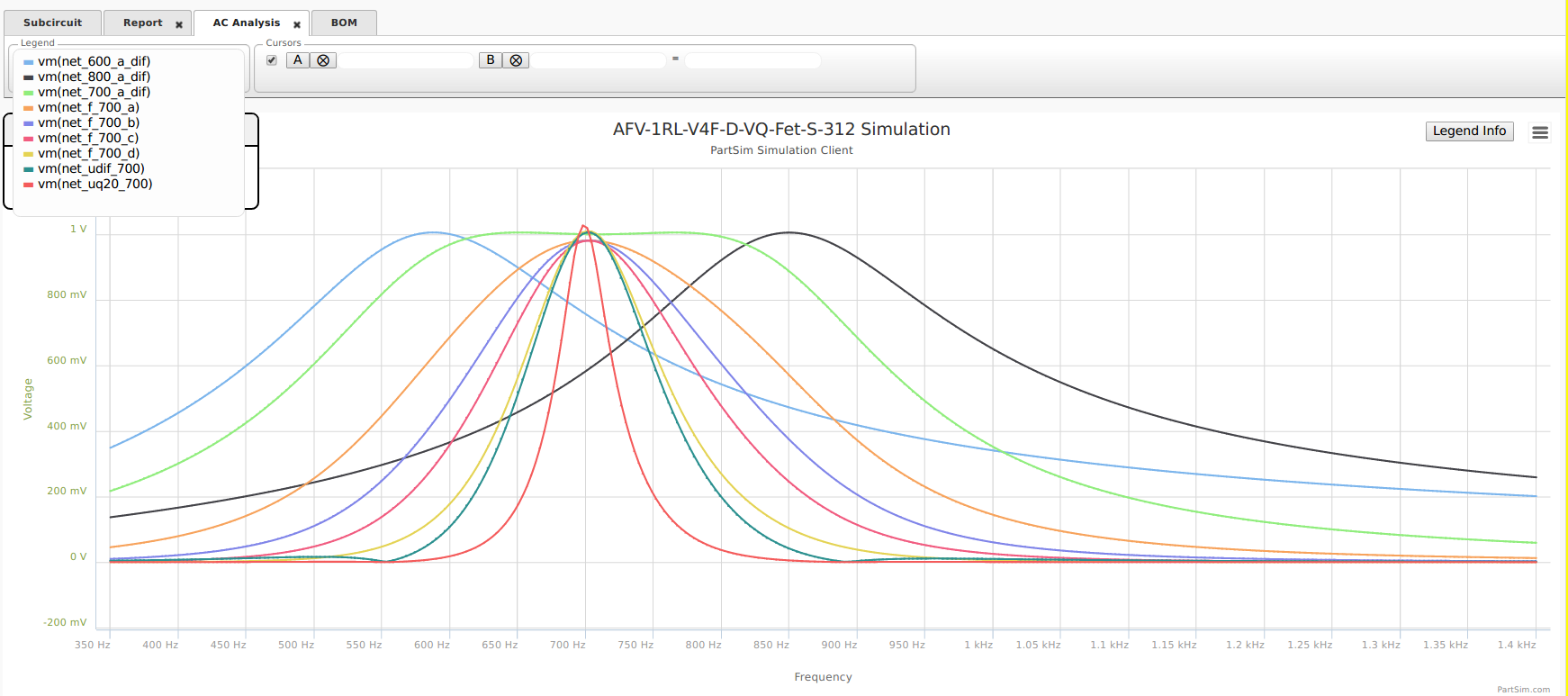

*** Below : basic Bode Plot ... Sharp Red Trace in center is the Q20 filter stage.

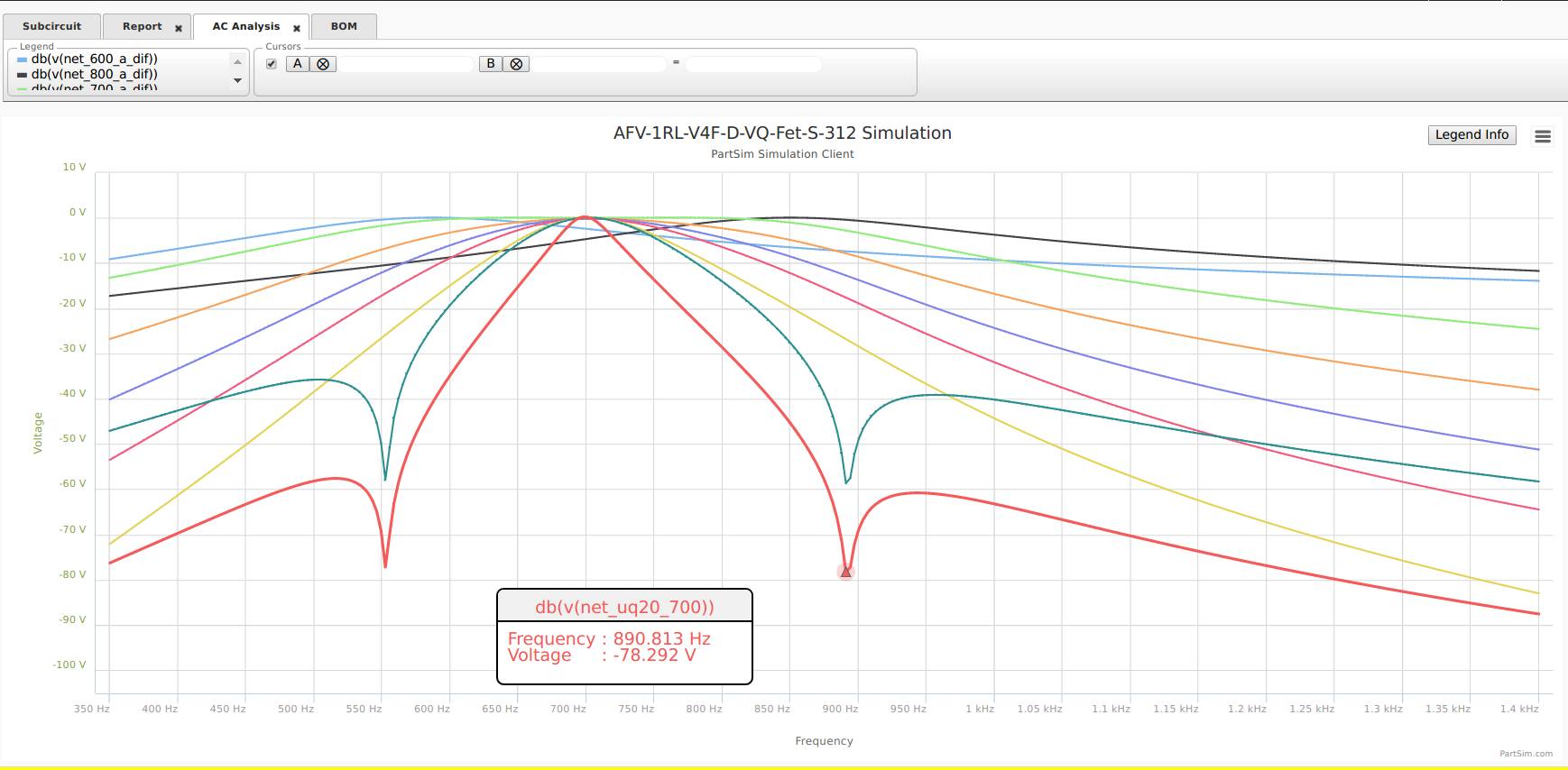

Below : Magnitude plot showing measured dept of the Dual-Notches.
Green trace is the Differential-Dual-Notch .       Red trace is the Q20 Sharp Filter.

***********************************   Notice that the  600 - 700 - 800 waveforms  have good BandPass shapes.
*** the very wide signal is the Roofing Filter Output, which will restrict the variability of the central f() signal


****************
Notice that at all three frequencies, the peak amplitude of the final signals stay within 0.3 dB of the f(700) signal.


****************************************************************************************************************************************************
