The System

System Philosophy

This system is optimized for stereo 2 channel hi-fi audio reproduction. It also performs a secondary duty as a home-theater setup, although it is not optimized for this. I enjoy watching movies, and the sound should be accurate, though not the center piece of the movie experience. For hi-fi stereo I enjoy my vinyl albums on the Gyro SE (See this page for information on turntable setup), and CD's through the Sony as a transport and the Yamaha's DAC via optical TOS-link interconnect. I also have my computer hooked up so I can listen to MP-3's and record albums to CD for car listening. I have a Soundblaster Live! sound card that records amazingly well (no audible noise at all) for being so cheap ($99). The output of the Soundblaster is connected to the Yamaha via a coaxial SPDIF connector, so I use the Yamaha's DAC and not the cheap and noisy one in the soundcard.

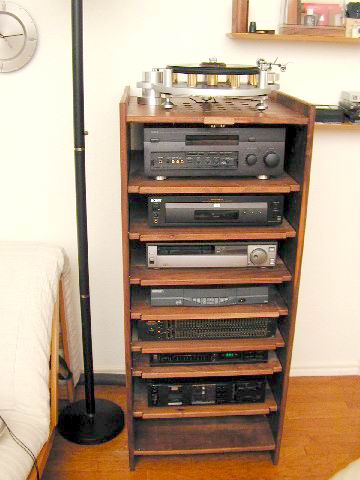

	Electronics and Sources: Michell Gyro SE turntable with Infinity Black Widow tonearm and Shure V15 VxMR cartridge Yamaha DSP-3090 AV integrated amp Sony DVP-S7000 DVD player/CD transport JVC HRS-5800U SVHS VCR Echostar Model 3000 satelite TV receiver Yamaha Q2031A 1/3 octave equalizer (Used to tame the Klipschorns) Kenwood KT-42 AM/FM tuner Nakamichi BX-300 cassete deck Home-made solid oak cabinet

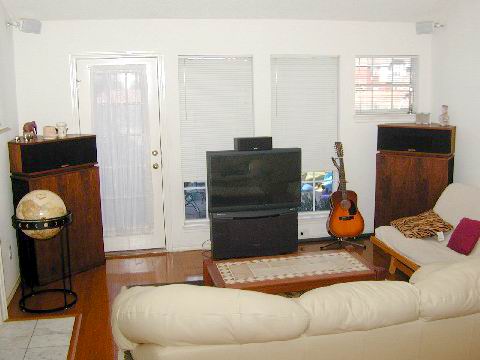

	Audio-Visual Transducers: Klipsch corner horns, 3-way hornloaded speaker system (Notice behind the right main speaker the window has been "modified" to accomodate the corner horn.) Realistic Optimus PRO-C3 center speaker Realistic Minimus-7 surround speakers (The ones shown are for the front surround channels that the Yamaha amp provides. There are two identical ones behind the seating area for the rear.) Toshiba TW40H80 40-inch 16:9 rear-projection TV

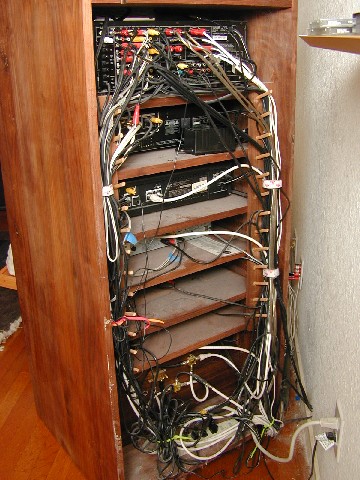

	Interconnects: The back of the cabinet was designed to hold the interconnects so there would be no "spaghetti" mess visible from the front. I don't adhere to the trend of using exotic interconnects. All of these cables are either from Radio Shack or Home Depot. There are 4 cables that are home-spliced: the component video cables from the DVD palyer to the TV are made of 3 30' lengths of RG-6 75 ohm cable connectorized at each end to RCA plugs, and 1 30' length of S-video cable connectorized at each end with S-video DIN-style connectors is used to connect the Yamaha's video output to the TV. The main speaker cables are 12 guage zip-cord and the surround speaker cables are 16 guage zip-cord. The cables seen going into the wall connect to the computer in the other room.
