Train operations

Belvédère is operated according a train sequence which was extracted out of the 1982 summer time table, the last time trains were running on the old Furka line. I try to represent a day's operation with the typical train compositions found running on the line.

5.1. Train rooster

5.1.1. Locomotives

5.1.2 Coaches

5.1.3. Goods carriages

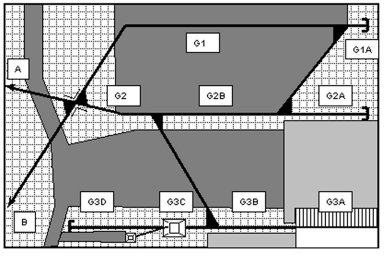

5.2. Track layout

Every spot position on the layout carries its particular code which is refered to in the sequence list when switching moves are described.

5.3. Goods traffic

Here is a list of all the transported goods on the line and which type of waggon is used to convey them:

5.4. Time table sequence

A list with all the train sequences containing all the necessary information is used for the operation. The list is self explainatory and is enclosed herewith. Train numbers in italic mark special trains:

Train No.	Obw.	Bel.			Muttb.	Composition	Remarks
		arr.	dep.	Tr.
6004	05:40	05:51	05:53	1	06:02	HGm 4/4(62)+Gbv(4436)	Early morning service train for line checks after heavy thunderstorms the evening before.
218	07:40	07:51	07:53	1	08:02	-	-
220	08:18	08:29	-	2	-	HGm 4/4(62)	Engine from Brig arriving in Belvedere for the goods trains to the construction site. Switching moves G2->G3c.
121	09:37	09:23	-	2	09:11	HGm 4/4II(102)+A4270+B2285+B2285 +Bt2253	Regional Train Andermatt - Brig
130	09:08	09:19	09:23	1	09:32	HGm 4/4I(31)+A4065+B4270+B4268	Regional Train Brig - Andermatt
22	-	-	09:51	1	10:00	HGm 4/4(62)+Fad4855	Gravel block train; has previously been loaded at the silo. Switching moves G3c->G2.
21	10:29	10:14	10:14	2	10:03	-	-
20	10:03	10:14	10:16	1	10:25	HGm4/4I(31)+A4065+B4270+B4268+D4342	Fast train Brig - Disentis
25	-	-	11:08	2	10:56	HGm 4/4(62)+Fad4855	Gravel block train; to be loaded at the silo. Switching moves G2->G3c.
10030	10:57	11:08	11:10	1	11:19	HGm4/4II(2)+Haik-v2472+Uce4863+Uce4865	Goods train to construction site.
30	11:27	11:38	11:40	1	11:49	HGe 4/4I(37)+AS4022+AS2011+AS4024 +AS4014	Glacier Express A.
135	12:15	12:01	12:01	2	11:49	HGe 4/4I(31)+A4065+B4270+D4342	Regional train Andermatt - Brig
146	12:15	12:27	12:27	1	12:37	HGe 4/4I(31)+A4065+B4270+D4342	Regional train Brig - Andermatt
10033	12:42	12:28	12:28	2	12:16	HGm4/4II(2)+Gbv4436+Ek2511	Goods train from construction site (empty).
33	13:03	12:49	12:49	1	12:37	HGe 4/4I(37)+AS4022+AS2011+AS4024 +AS4014(-WR3813)	Glacier Express E: uncouple WR3813 from end of train and spot it to G2A.
40	13:07	13:18	13:20	1	13:29	HGe 4/4I(37)+AS4022+AS2011+AS4024 +AS4014(+WR3813)	Glacier Express B: WR3813 at G2A needs to be attached to end of train.
35	13:34	13:20	13:20	2	13:08	HGm 4/4II(102)+A4270+B2285+B2285+ Bt2253	Regional special Andermatt - Birg.
145	14:09	13:55	13:55	2	13:43	HGm 4/4II(102)+A4270+B2285+B2285+ Bt2253	Regional train Andermatt - Brig
41	14:35	14:14	14:21	2	14:03	-	-
154	14:09	14:21	14:21	1	14:30	HGe4/4I(37)+A4065+B4270	Regional train Brig - Andermatt
549	14:52	14:43	14:43	2	14:31	-	-
43	15:31	15:11	15:16	2	15:00	HGe 4/4I(37)+AS4022+AS2011+AS4024 +AS4014	Glacier Express F.
50	15:05	15:16	15:18	1	15:27	HGe4/4I(31)+A4065+B4270+D4342	Fast train Brig - Disentis
153	16:04	15:50	15:50	2	15:38	HGe4/4l(37)+A4065+B4270	Regional train Andermatt - Brig
52	15:35	15:46	15:49	1	15:59	HGm 4/4(62)+Fad4855	Gravel train from silo (switching move G3c->G1) to construction site
51	16:44	16:30	16:27	2	16:16	HGm 4/4(62)+Fad4855	Gravel train (empty) to silo (switching move G2->G3c)
262	16:17	16:29	16:29	1	16:38	-	-
53	17:17	17:02	17:02	2	16:50	HGe4/4I(31)+A4065+B4270+D4342	Fast train Disentis-Brig
58	16:46	16:57	17:01	1	17:10	-	-
55	17:44	17:28	17:28	2	17:18	HGe 4/4(62)	Engine for construction site goods trains goes back to Brig
170	17:16	17:28	17:28	1	17:37	HGe4/4I(31)+A4065+B4270+D4342	Fast train Brig-Disentis
176	18:23	18:35	18:35	1	18:44	HGm 4/4II(102)+A4270+B2285+B2285+ Bt2253	Regional train Brig - Andermatt
63	19:21	19:06	19:06	2	18:54	HGe4/4I(31)+A4065+B4270	Regional train Andermatt - Brig

5.5. Practical operation

The basic compositions are already arranged on the 4 available cassetts in the fiddle yard:

Engines have their own shorter cassetts.

It is only a matter of arranging the cassetts at the right exit and trains can then be despatched.

For the use on the empty cassette or for adding coaches to existing compositions I use a little ramp which fascilitates the rerailing of waggons on the tracks.
