··Usage:

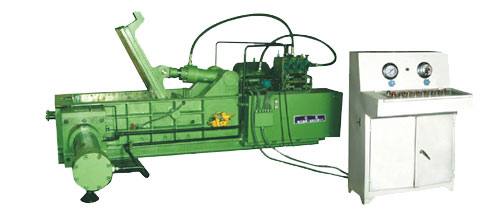

Y81 series hydraulic metal baling press, it can be mainly used in compressing the scattered plastic black and coloured metal plates.It is very convenient to the transportation and smelting.The baling press is adopted the electro hydraulic drive,it includes manual and automatic control,the operation is convenient,performance is reliable.the mode of baiting is side push,the baling block can be transported directly, so omitted the porterage.
The main technical parameter : |
| Model | Y83-160A | Y83-230 | Y83-300 |
| Nominal Force (KN) | 1600 | 2300 | 3000 |
| Briqueting size (kg/m3) | ￠90x(60-110) | ￠110x(70-120) | ￠120x(70-120) |
| Briqueting density (KG/m3) | ≥5200-5400 | ≥5200-5400 | ≥5200-5400 |
| Work pressure (Mpa) | 16 | 23 | 21 |
| Production Rate (Cast lron chip) (t/h) | 0.6-0.9 | 1.0-1.5 | 1.2-1.8 |
| Total Power (Kw) | 24.2 | 39.2 | 47.2 |
| Weight(Kg) | 6000 | 7500 | 8800 |
| Outside Size (mm) | 4100x1086x2006 | 4100x1086x2006 | 5000x1600x2600 |
