Please
email me at [email protected], [email protected]
or [email protected] before you
buy.
This way you can ask questions, check stock and get an idea of when it
can ship.
Free replacements cause the floor does not always give back everything.
Only $5.75

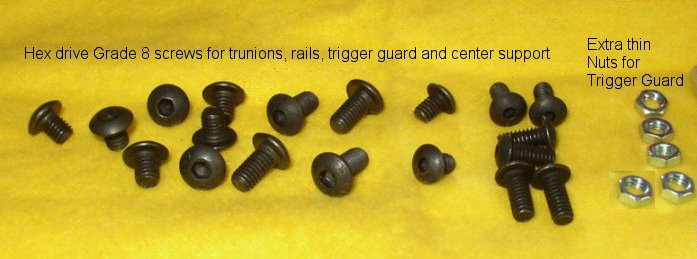

There are enough screws for most ak builds. If you need
more than what I send then they will be free.
Center support piece available for free for those using flats,
see Center support Piece below.
Replacements are free because the floor does not always return
everything, the dog may even eat few, or worse you wife might
throw them in the back yard.
Must
have Tools:
Drill bits, taps and hex wrenches.
Get them here or your favorite hardware store.
#21 and #29 Cobalt Drill $2.50 ea. Both needed
to get the proper size hole for tapping.
#29 for 8-32 and #21 for 10-32
DO NOT USE fractional sizes. You will
end
up with
a hole too big or small, resulting in not deep
enough
threads
or extra torque needed to tap holes resulting in a
broken
tap.
Both drill bits for $5
Taps:
There are 3 styles of taps. An explanation of taps is here
Taper style tap 8-32 and 10-32 $2.50 ea. Both are needed
Both taper taps for $5
Plug style tap 10-32 $2.50 ea. Optional for front trunion with
barrel installed.
Use after taper style.
$2.50 ea.
Bottoming tap needed if tapping front trunion with barrel installed.
10-32 $2.50 ea.
This tap will get the threads as close to the bottom of the blind holes
as possible.
Use after Taper or
plug style tape.
Highly recommended to use all 3 styles of taps on the front trunion if
you leave the barrel installed
as each style cuts threads closer to
the bottom than the previous one.
Buy All four taps for only $10.00 and get 2 hex
wrenches Free.
1/8" and 3/32" Hex Wrenches 50 cents for the pair

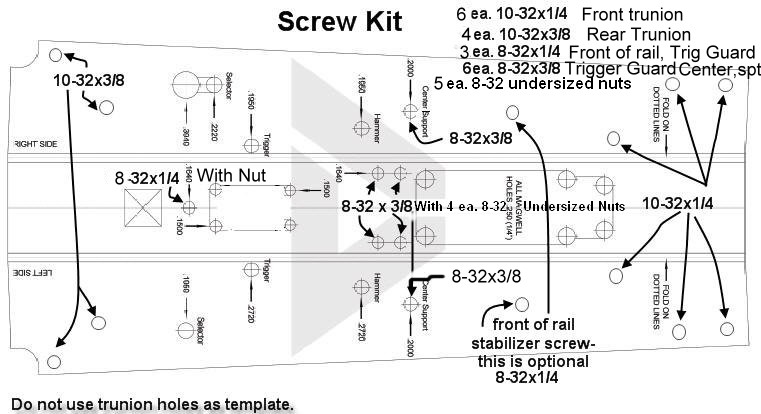

Center Support 1.15" long to fit receivers that are .040 thick and have
.040 and .062" thick rails. ( most common flat size. )
Threaded and includes 2ea. 8-32 screws
$4.00
Center Support Piece.
Section of carbon steel tube for you to make your own custom fit
support. Pre drilled. Just tap to 8-32 ( 2ea 8-32 screws
included ) Free with Screw kit
Purchase. Write in the comment section during checkout that
you need this piece.
$1.50
Super special: Screw kit, 4 Taps, 2 cobalt drill bits
and 2 hex wrenches.
$19.95
For paypal checkout, hit the view cart button below.
Notes: Please read and know before you buy:
Front Trunion screws may need a washer
or to be shortened up to 1/16" or 0.5mm
Shorten by the amount thinner your receiver is from 1.5 mm.
Due to supplier backlog
I try to ship within 3 days, but when I am busy on my farm it may take
a week.
Email me before you buy so you know when I can ship.
