| XS 650 Project |
 |

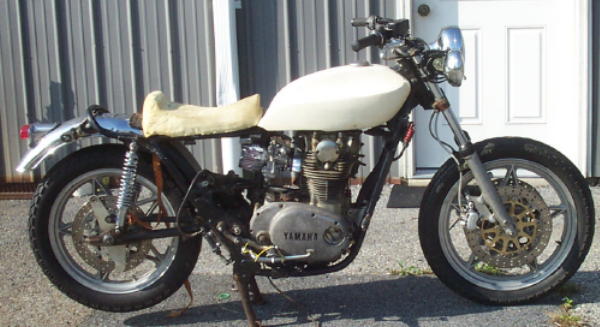

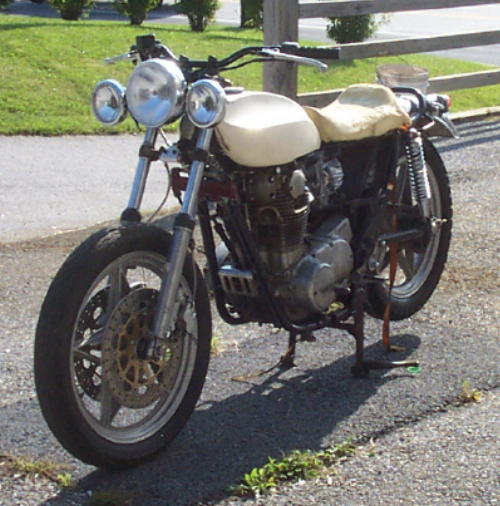

| Heres another project that I have been working on. Its a 1976 XS 650. The front brake have been replaced with CBR 600 calipers and Ducati rotors.The rear brakes have been replaced with a GS 1000 caliper and a newer spotbike rotor and Brembo mastercylinder. The 'glass tank is off a Honda and the seat is custom made. It has an oil cooler conversion, Hydraulic clutch, 34mm Flatslide carbs and custom aluminum motormounts have been made. I an going for a Street Tracker Enduro look. |
 |
 |

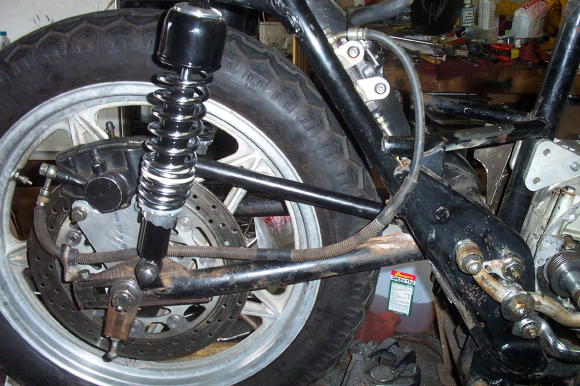

| The rear brake has been installed. This bike will get custom made side covers that will conceal the mastercylinder and the brake hose will be replaced with a braided line that will be concealed behind the side cover.. |
| The wiring for the handlebar controls has been run inside the bars.I am using a right side handlebar control with a light ON/ OFF switch in it (to controll running lights and aux. lights). The left side control has the HIGH/ LOW beam switch and also has a lights ON/ OFF switch that is wired to a relay for the Aux Lights. The center stand and mounting bracket will be removed along with other misc brackets (exhaust mounts,etc) to clean it up. |
