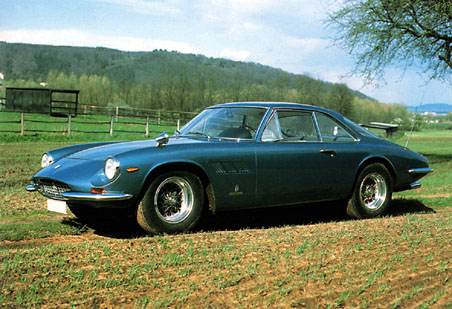

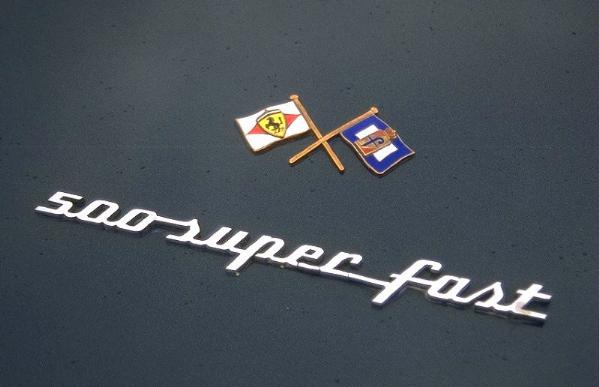

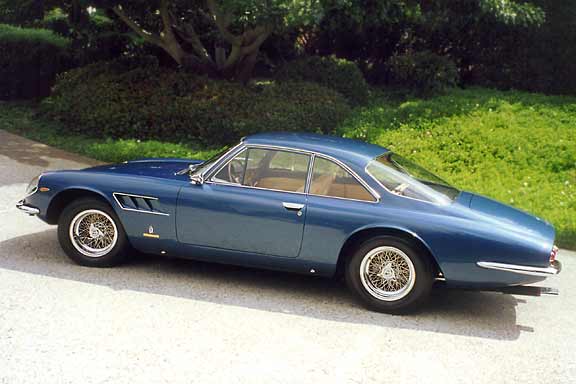

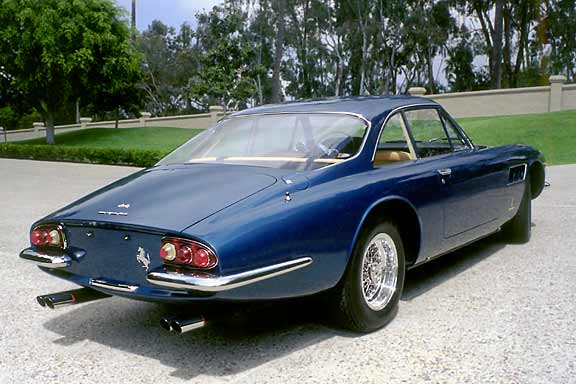

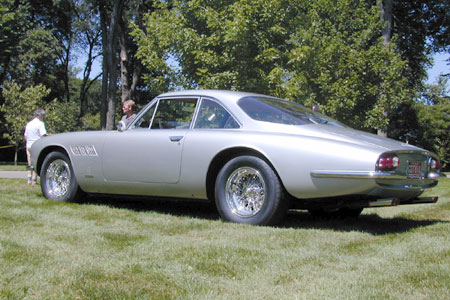

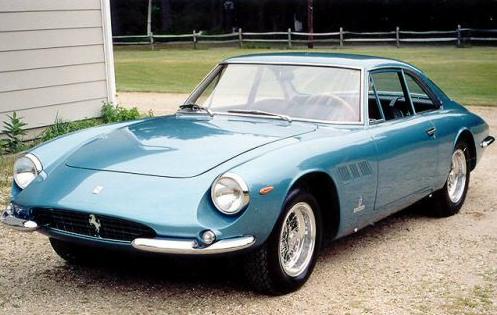

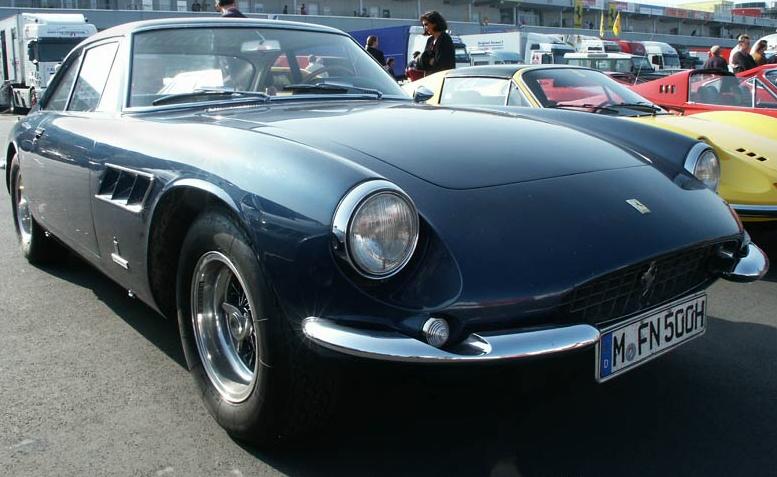

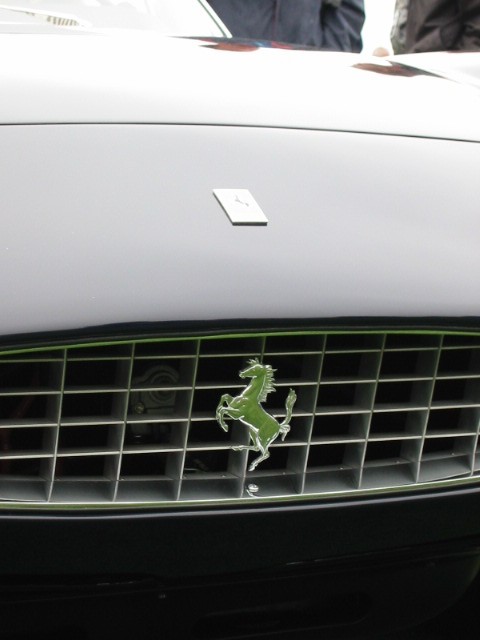

500 SuperFast

1964 / 1966


Serial numbers: 5951SF - 8897SF

Production number: 37



Engine:
Type 208, front longitudinal. 60° V12, light alloy cylinder block and head

Bore & Stroke:
88 x 68 mm

Unitary and Total Displacement:
413.46/4,963 cc

Compression Ratio:
8:8

Max. Power Output:
400 bhp at 6,500 rpm; 80 bhp/litre



Timing Gear:
2 valves per cylinder, single overhead camshaft per cylinder bank

Fuel Feed:
6 Weber 4 DCN3 carburettors

Ignition:
Single plug, 2 coils with 2 distributors

Transmission:
Dry, single-plate clutch, 4-speed gearbox + overdrive and reverse conventional differential

Chassis:
Tubular steel



Front Suspension:
Independent, double wishbones, coil springs, anti-roll bar

Rear Suspension:
Live axle, coil springs

Brakes:
Dunlop discs

Cooling System:
1 front radiator

Wheelbase:
2,650 mm

Front Track:
1,397 mm

Rear Track:
1,389 mm

Dry Weight:
1,400 kg



Tyres:
205-15

Fuel Tank:
100 litres

Top Speed:
280 km/h
