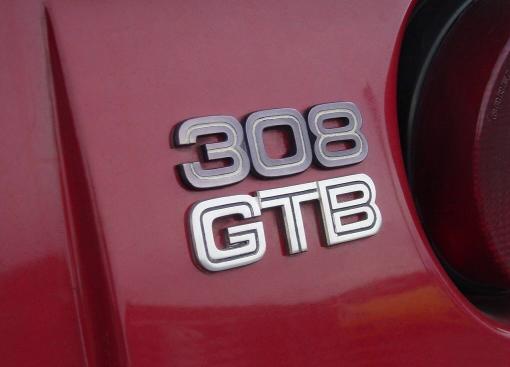

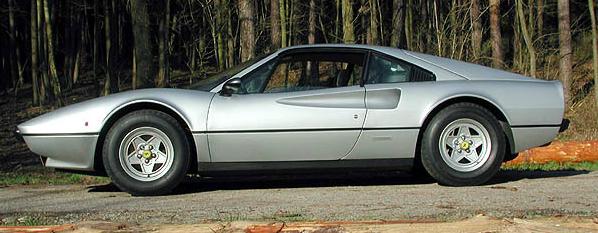

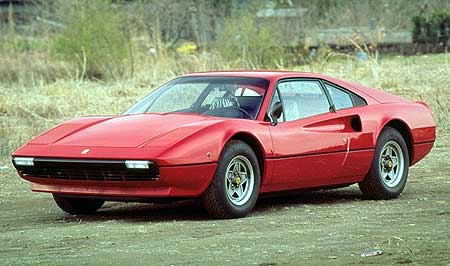

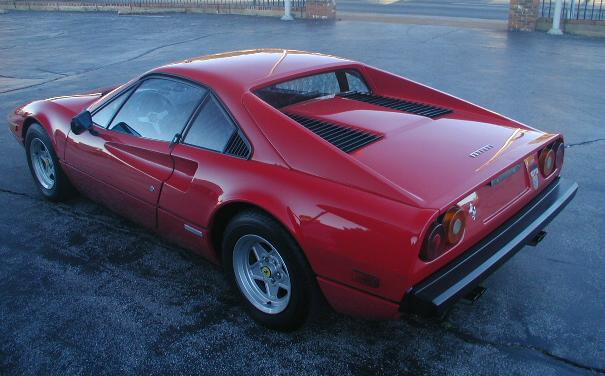

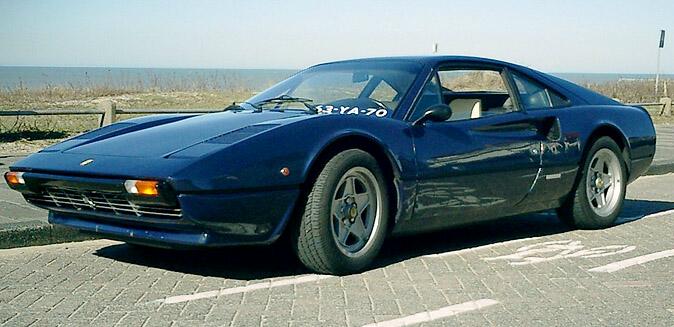

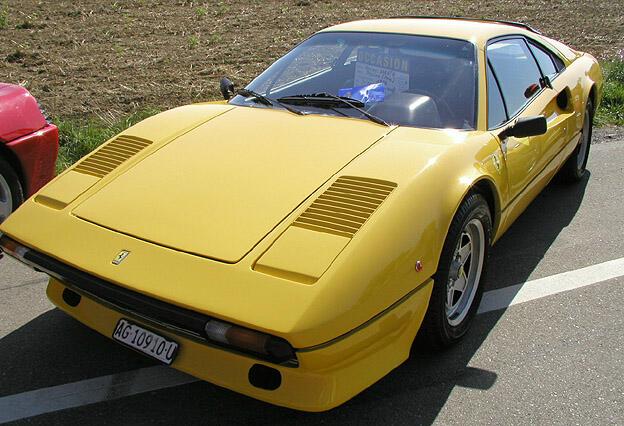

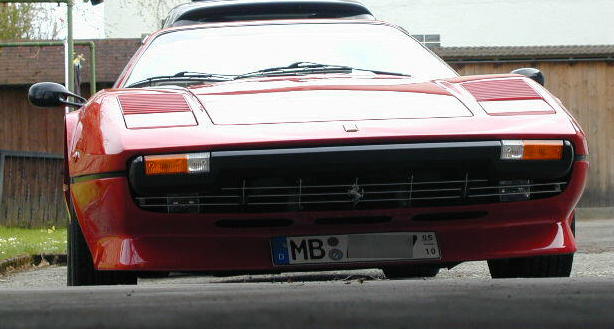

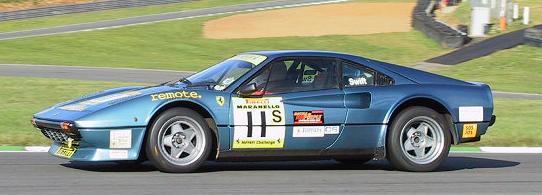

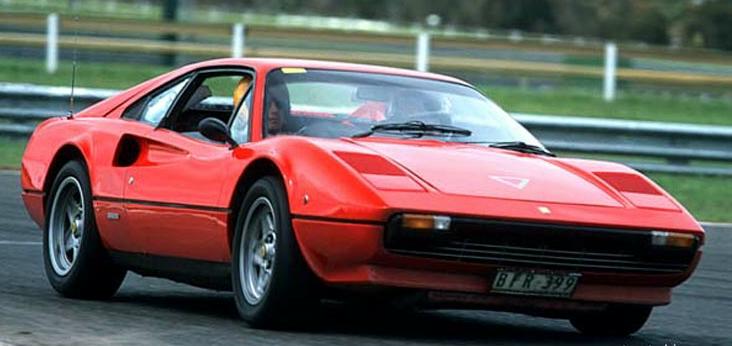

308 GTB

1976 / 1980

Serial numbers: 20805 - 34349

Production number: 2185



Engine:
Transverse, mid-mounted 90° V8, light alloy cylinder block and head

Bore & Stroke:
81 x 71 mm

Unitary and Total Displacement:
365.86/2,926.90 cc



Compression Ratio:
8.8:1

Max. Power Output:
255 bhp at 7,700 rpm; 85 bhp/litre

Timing Gear:
2 valves per cylinder, twin overhead camshafts per cylinder bank

Fuel Feed:
4 Weber 40 DCNF carburettors

Ignition:
Single plug, coil

Transmission:
Dry single-plate clutch, 5-speed gearbox + reverse, ZF limited-slip differential

Chassis:
Tubular

Front Suspension:
Independent, double wishbones, coil springs

Rear Suspension:
Independent, double wishbones, coil springs

Brakes:
Ventilated discs

Steering:
Rack and pinion

Cooling System:
1 front radiator

Length:
4230 mm

Width:
1720 mm

Height:
1120 mm

Wheelbase and Front/ Rear Track:
2,340/1,460/1,460 mm

Dry Weight:
1,090 kg

Tyres:
205-70 VR 14

Fuel Tank:
Two 70-80 litre tanks





Top Speed:
252 km/h
