Multi-Spindle Drill Machine

>

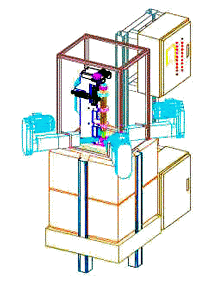

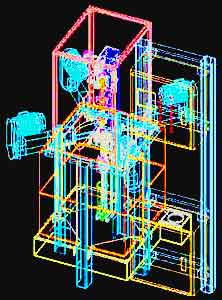

This is wire-frame model, hidden model from one angle, and the shaded model. The graphics in three different views depicts the possibilities to see the model in different forms.  Although the machine is not in existence still the views shown make it clear what the machine is about and how it will look like when completed.

There are further possibilities but not shown due to the limitations of the website.  It gives more details when rendered defining lighting, shadows background, etc.

The machine itself is for making perforated tubes.  It is called multi-spindle drill machine.  It is capable of making 8 holes in a single operation with great precision.  All the feed and free travel of the drill-heads is automatically controlled by electronic, pneumatic and hydraulic automation.
