| Part 2: Resistance reading | ||||||||||||||||||||||
| [Quest]: Please make sure that you have a sound DVM or analogue multimeter for this part. To facilitate testing, I encourage builder to resort to using alligator clip leads available from rat shack (as seen in the pictures). I already have my black probe connected to the chassi plate using alligator clips. Now, let the fun begins, shall we? (Refer to page 38 and 39 of your instruction booklet) p.s. don't be overly concerned with regards to the reading discrepancies esp. decimal points or reading that is around/over 1Mohms. Instead, focus on getting your readings within range. I provide my reading as a reference below: |
||||||||||||||||||||||

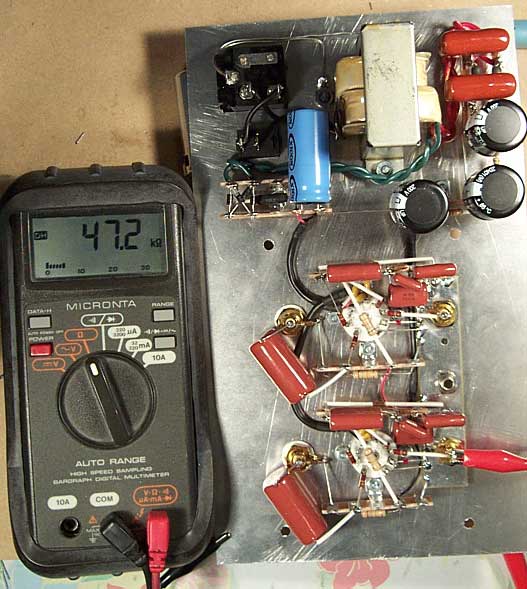

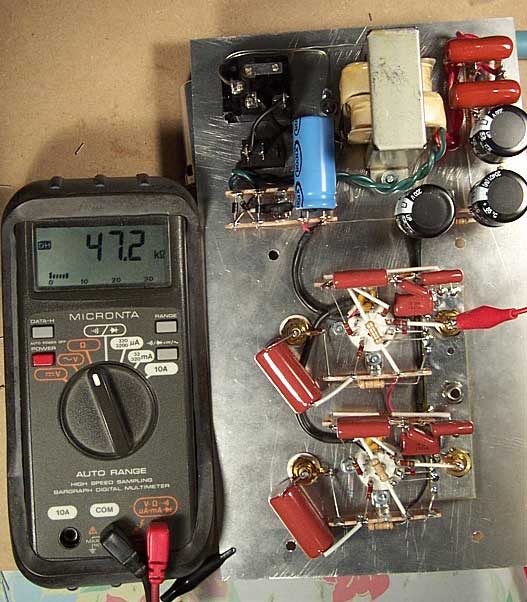

| Input jacks: While I got 47.2kOhms instead of the stated 47.5Kohm | ||||||||||||||||||||||
 |
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
|
||||||||||||||||||||||
|
||||||||||||||||||||||
