click pics for larger images

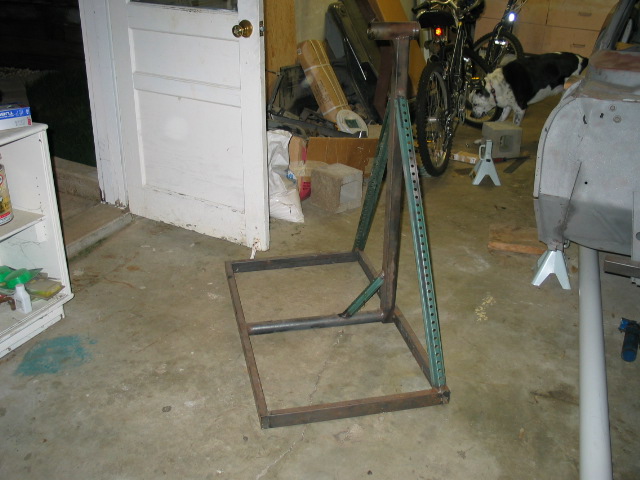

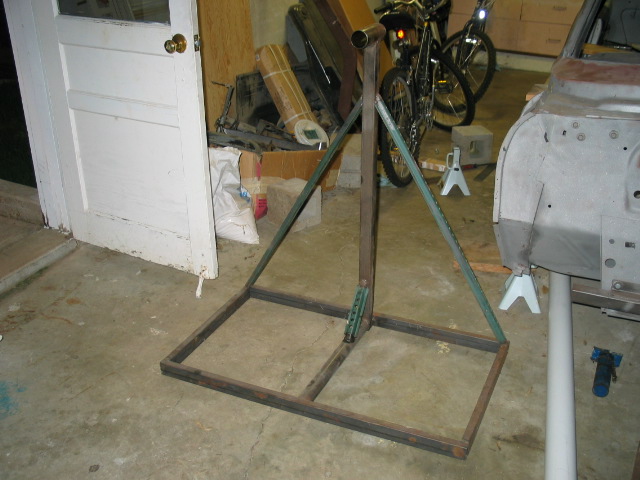

Stand 1	Stand 2	Front Stand Bracket

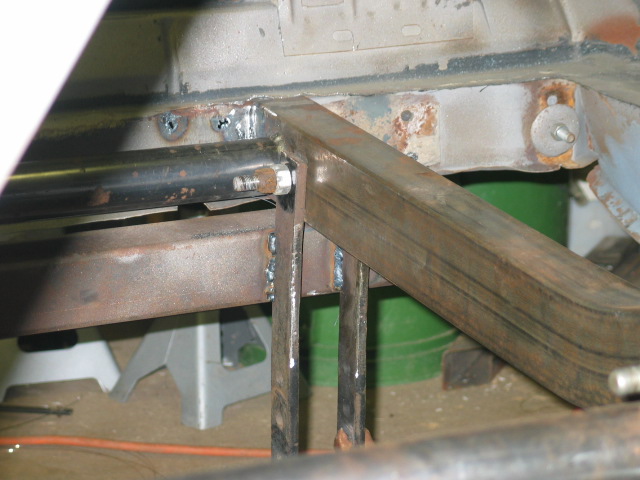

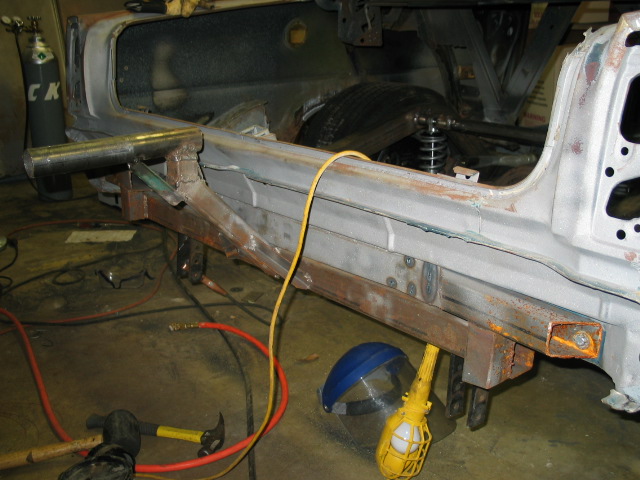

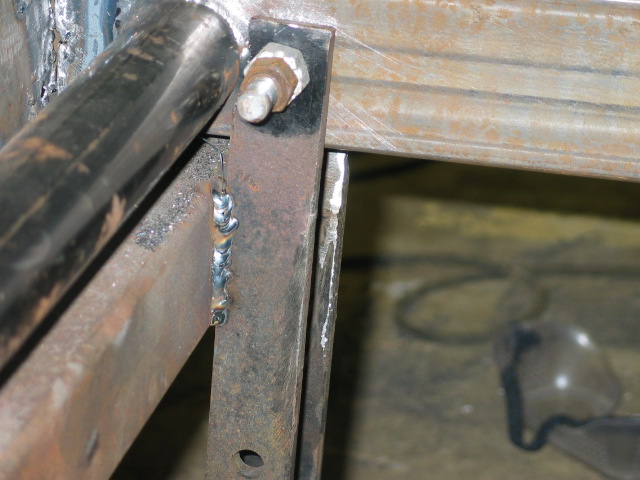

Back Bracket	Back Bracket 2	Back Bracket 3

Main Stands are built the same. Footing is 42" x 24". From floor to very top is 44".

Front bracket is 12" from the top of crossbar to Center of top tube.

Rear bracket is 10" from the top of crossbar to Center of top tube.

Finding the center of gravity took some experimenting. If you are working on another model of car, these measurement may need to be adjusted.
