| CUSTOM SWORDS! |
| CLICK PICS TO ENLARGE! |

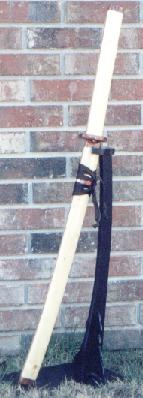

| Sword in its scabbard |

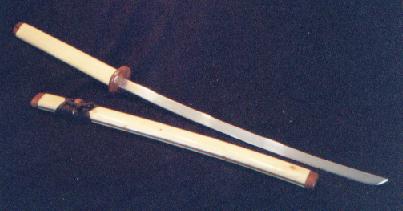

| sword shown out of scabbard |
| Sheathed sword on katana stand (stand not availible) |

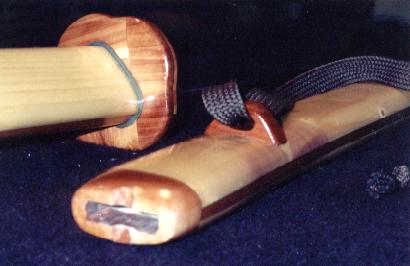

| Close-up of scabbard mouth and tsuba |

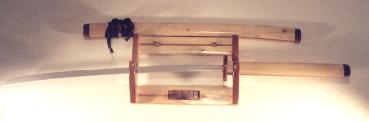

| Sword on custom designed matching stand (stand not availible) |
| The sword pictured below is a custom sword designed for use in forms and katas. I required a lightweight sword and the mass marketed aluminum-zinc alloy swords where just too heavy and prone to braakage. The resulting sword that I created became a very attractive piece as well as functional. The blade is UNSHARPENED 6061 T6 aluminum. The handle, scabbard ard tsuba are all constructed of wood that is well varnished to protect the wood from the elements. The sword pictured below is the first, the prototype, therefore some changes will be made in later models. These changes will be longer blades, and thinner handles so that the user may wrap it with grip tape or tradtional wrap if desired. These swords are completely handmade. The blades are tediously cut, and many hours are put into polishing them to a near mirror finish. Remember, these are made for kata, not cutting. In the future I hope to offer these same swords with high carbon steel blades, that feature real temper lines for those martial artists wishing to use the sword for wara, but because of supply delays, this will take some time to arrange. |
| Tech Specs Blade material: 6061 T6 aluminum Blade length: approx. 24 inches (on the prototype) Handle material: Poplar and cedar wood Handle length: 13 inches (prototype) Tsuba material: cedar Point of Balance: Approx 1 inch from tsuba Scabbard material: matching poplar and cedar Sageo: cotton, died brown weight: less than 1 lb. without scabbard No tang pins, nails or screws where used to constuct this sword, it is completly held togther with high strength epoxy. |
