Hot Wheels ZX Hot Wheels ZX

STAGE 1

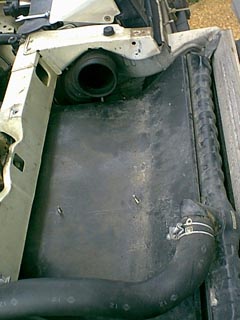

Close-up of the intake, notice bolts where the air filter is to be located.

A lot of ZX owners remove the airbox and resonator and replace it with a K&N filter and pipe.  I removed the resonator and simply repositioned the filter box closer.  The new setup will ensure fresh, colder air directly into the filter.

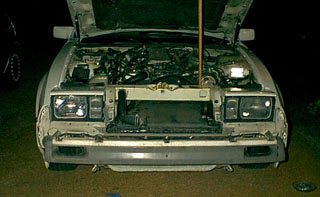

Nose piece removed and air filter box and resonator taken out.

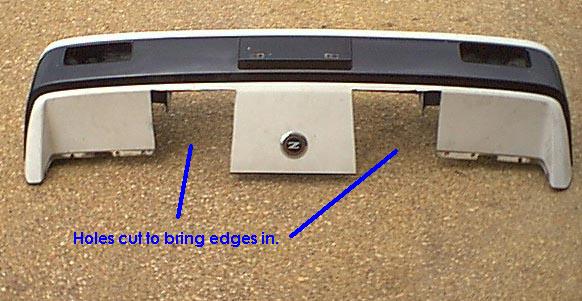

Sections removed to prepare for adjustments....

I cut the nose to remove the 2 sections as seen opposite.  Those sections were cut into two and then basically I just switched their position.

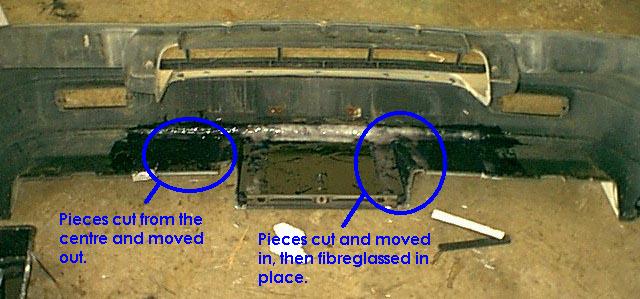

Inside showing 4 pieces of nose in their new positions.

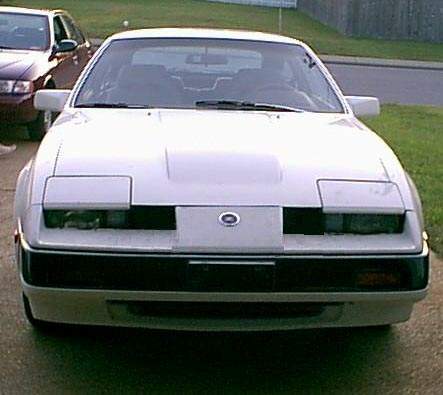

Cold air intake finished .........for now.......

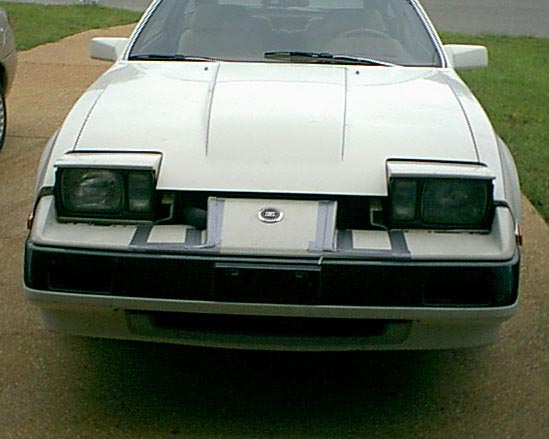

Checking for fit, still duct taped together....
Now to wrap her in foam - Stage 2
