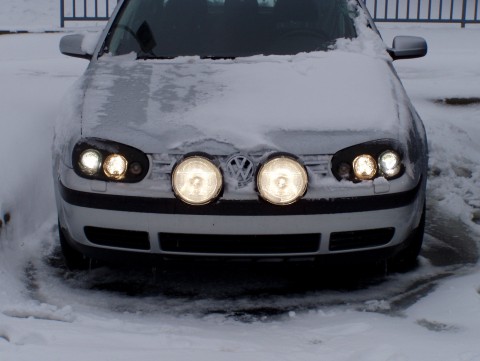

The two large lamps in the center are 200mm Cibie BiOscar Plus auxilary lamps. The BiOscars are wonderful as they are both a fog and a driving lamp using a H-4 bulb. I do not have the fog lamps hooked up as they are mounted high on my car and would have more glare than a low mounted fog. If I aimed them downward to help throw light under the weather, I would loose driving lamp distance. The twin nature of this lamp makes the Driving Lamp very wide and provides plenty of light into the turns which is what I wanted. With a strong center spot found with some driving lamps, I tend to look straight ahead instead of left or right when going through a turn. I find this not to be the case with the Cibies. Wiring for the Cibie lamps is all 10 gauge with a twin '87' relay and a correct size fuse which I change when running different wattage bulbs. The relay is wired to the high beams with an additional switch. This way I can run just the Hella high beams and then hit the new switch for the Cibies. When I kill the Hella highs with the stock high/low beam switch the Cibies also turn off. This makes it very easy to turn off all the glaring lamps very easy and quick. I have Austrailian Spotlight Protection clear covers to keep debris from cracking the glass Cibie lamps.
