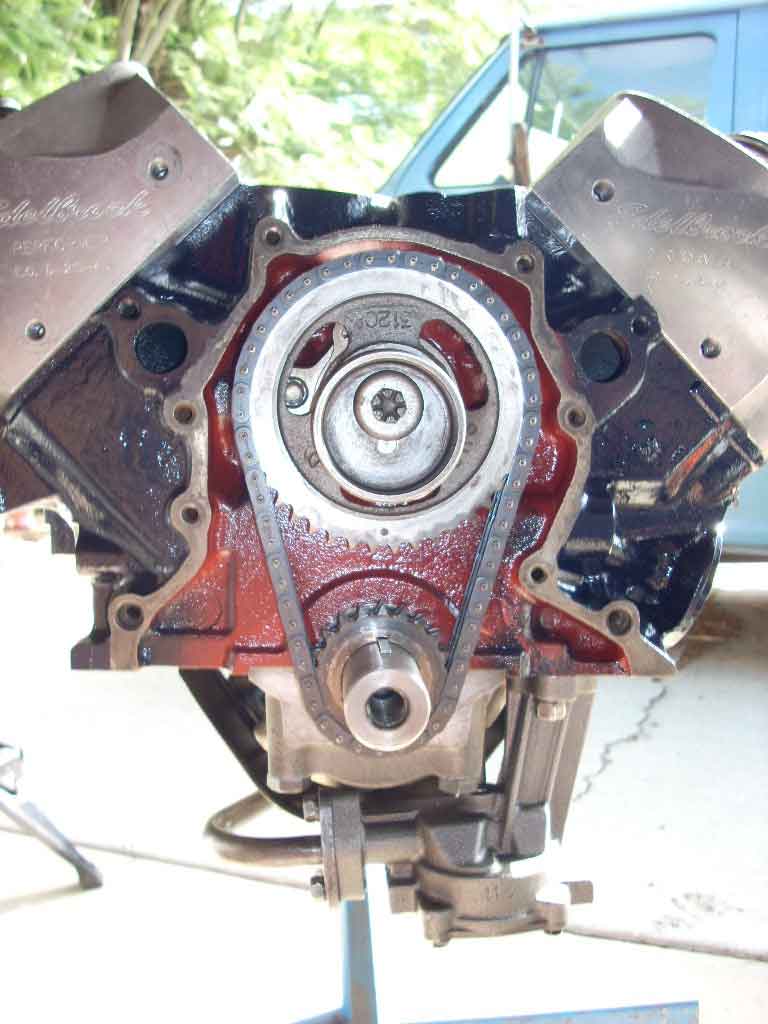

The timing chain cover did not fit correctly when first installed. The front seal was too low, so the when the harmonic ballancer was installed, the seal would leak. This is how I aligned the front timing chain cover so the seal would not leak.

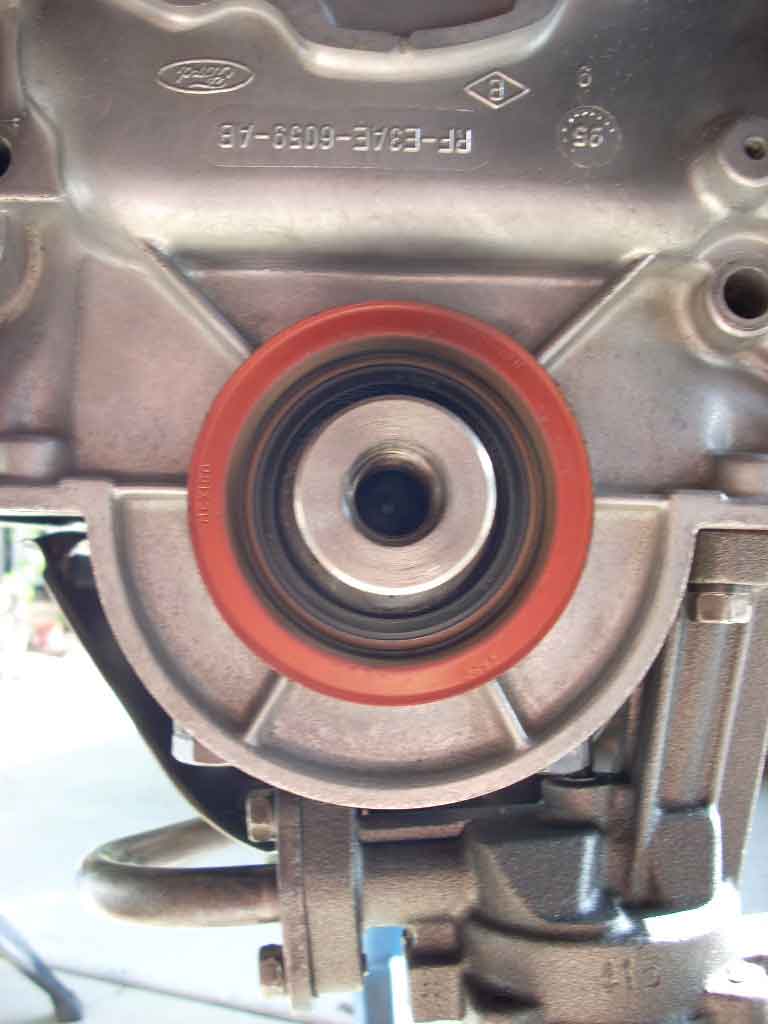

This timing covers front seal was too low, so the gap on the bottom of the seal was too big.

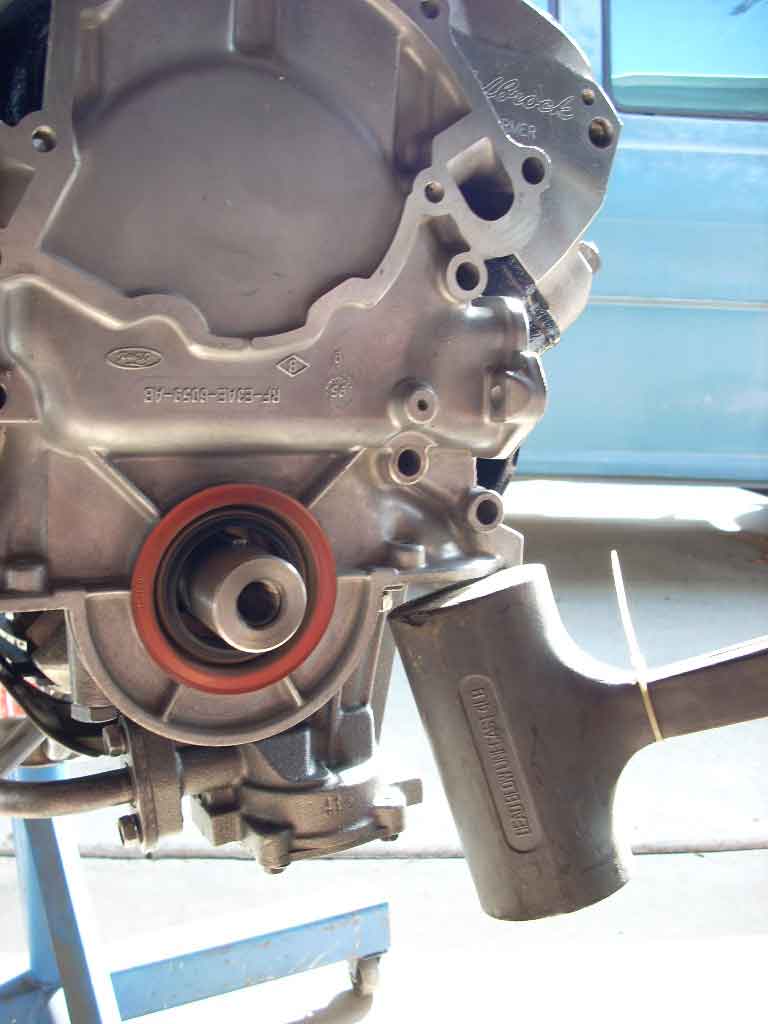

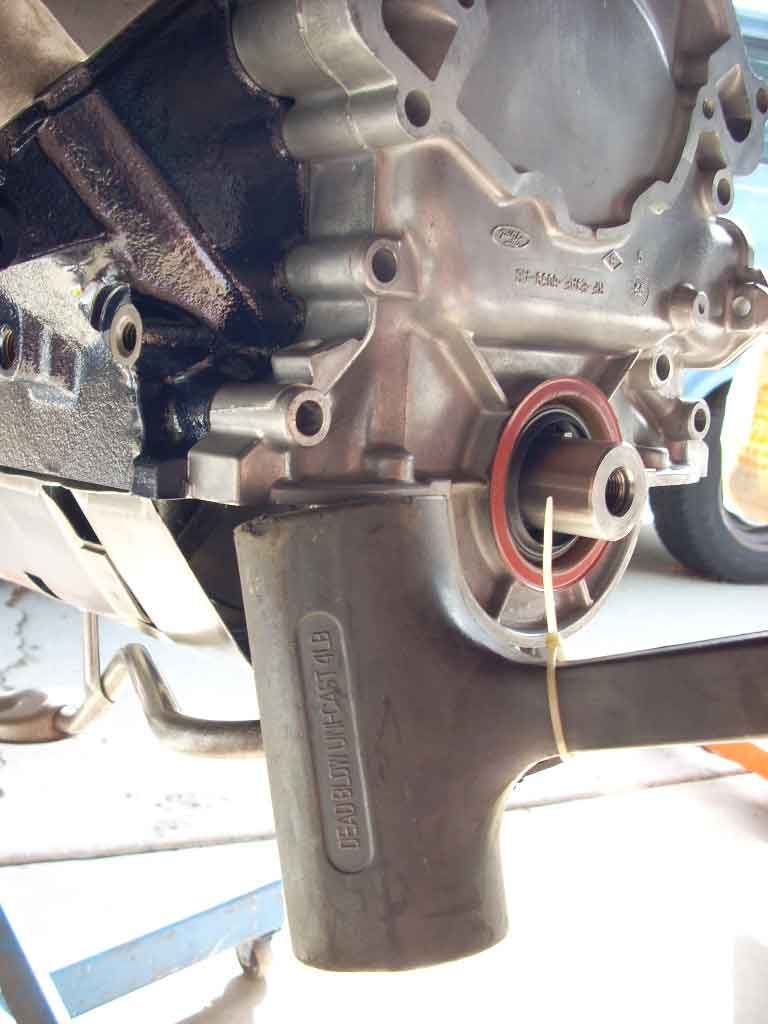

With a rubber dead blow hammer, hit the cover a few times and the front seal was aligned.
Install the front cover with sealent, a gasket, and the bolts making sure the seal is still aligned.
