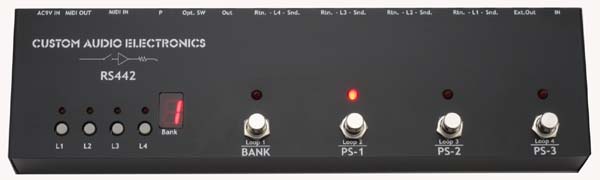

| RS-422 MIDI/Audio Controller $730 - FOB Tokyo |
|||||||||||||
| Download RS-422 MIDI/Audio Controller Japanese Manual PDF |
|||||||||||||
| • Smallest professional quality MIDI/Audio switching system available • 4 loops with sonically transparent MOS-FET audio switching • Ultra low noise, wide bandwidth and dynamic range • Silent, click-free switching - even in high gain applications • Super low noise buffer circuit for high to low empedance matching (bypassable) • 18 preset areas (6 banks x 3 presets) • Option switch allows direct access to loops (each of 4 foot switches BANK, PS1, PS2, PS3 control L1, L2, L3, L4) • Send MIDI Prog number when PS1, PS2, PS3 are selected • Send MIDI CC when L1, L2, L3, L4 are selected, allowing control of 4x4 and some MIDI sound processors • Receive MIDI Prog number and recall preset • Receive MIDI CC, allowing control by RS-10 and RS-616 as expander loops • MIDI port allows control of GVCA-2 |
|||||||||||||
 |
|||||||||||||
 |
|||||||||||||
 |
|||||||||||||
| |
|||||||||||||
|
