| PROJECT "ROJA" Rock Krawler 4.5" lift |
 |

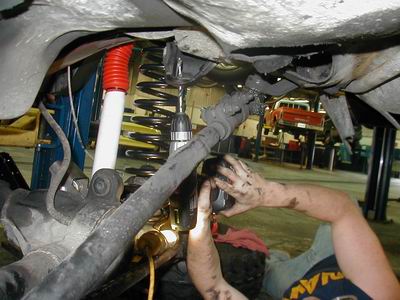

| The 4.5" lift has you drill out the original Track Bar hole to 9/16ths. Once the hole is drilled, lower the truck to the ground. Shove the truck around untill the axel is centerd. Then adjust the track bar head so the mounting bolt can slide through the head of the track bar and the hole you drilled out. I didn't center the axle before mounting the track bar and I ended up with the axel sticking out 6" on the right side. After this, it would be a good time to adjust the arm connected to the pitman arm. |
 |

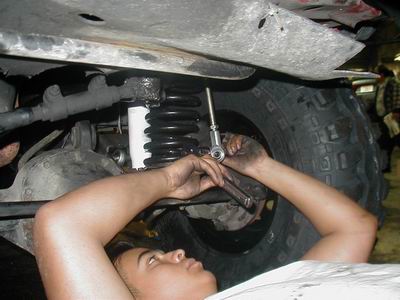

| Once the Track Arm and the steering arm were adjusted, we installed the drag link disconnects. Easy to mount, and I can't wait to test them. |
 |

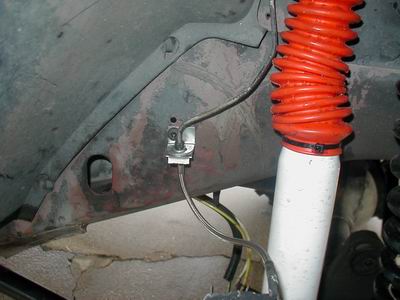

| Last we installed the extended brake lines that came with the kit. Installation was self explanatory, and compared to everything else, went pretty easy. Afterwards we made a quick trip to an alignment shop and got a front end alignment. THIS IS A MANDATORY STEP!! |
 |
| Well now we mounted some 33x12.50 Super Swampers TSL Radials on 15x8 Eaton steel rims. She's ready to hit the trails. |
