BUILD PROCESS |
|
|
|
 |
|
|
|
 |
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
SUPERMAN? |
|
|

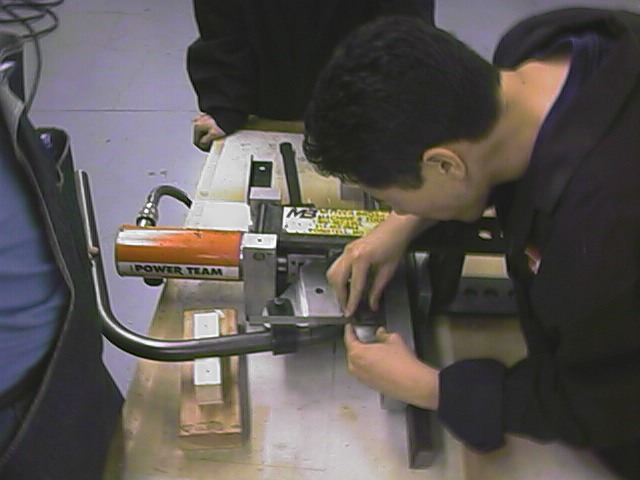

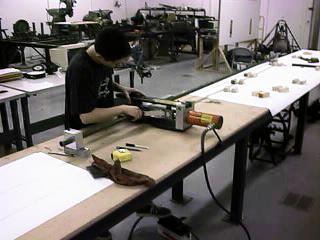

Starting to bend the frame. |
|
|
|
|
|
All bends are done in 2-D, holding 1 degree accuracy. |
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|

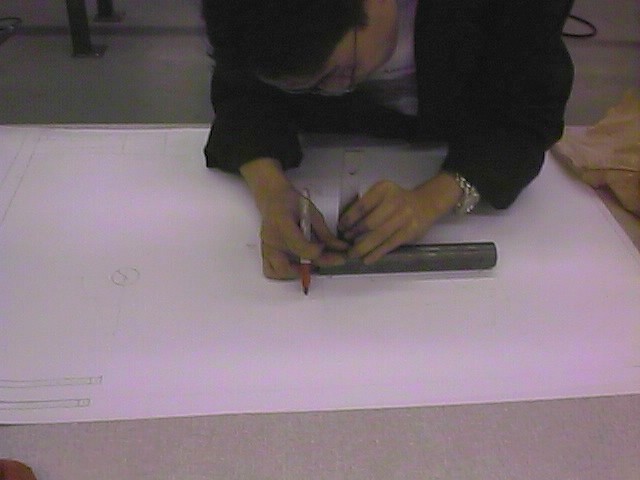

Now that the tubing is cut, it is time to mark out where to cut the fish-mouths. |
|
|
|
|
|
|
|
|

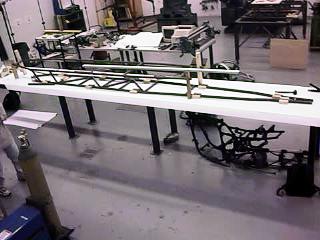

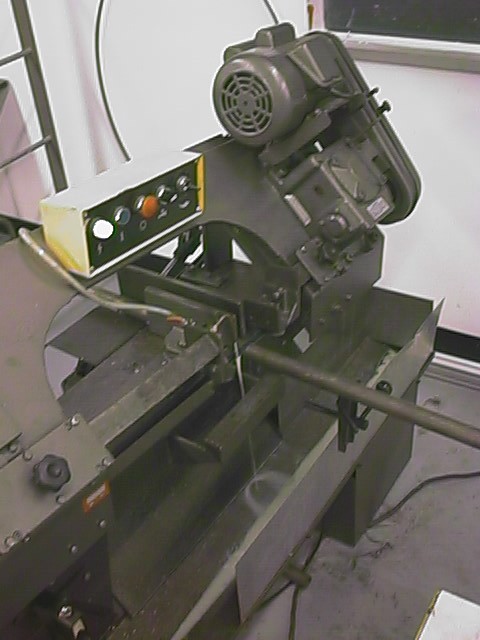

Rough lenghts are cut for each frame member. |
|
|
|
|
|

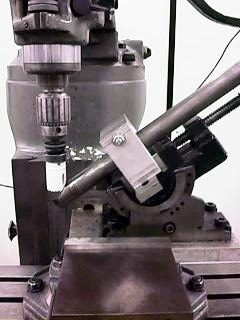

Fish-mouthing of the tubing on the mill, a simple 1 1/4" hole is used. |
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|

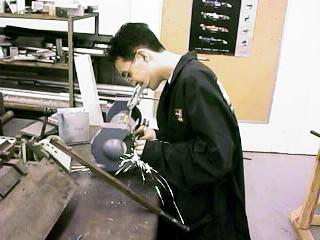

Toru puts the final touches on some of his parts. |
|
|
|

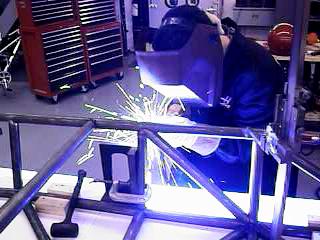

Brian tack welds the newly placed tube.
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|

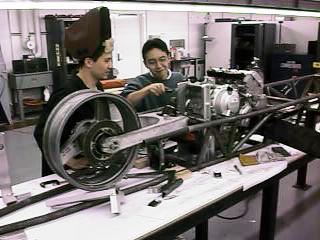

Brian and Toru working on engine placement. |
|
|
Middle section now being joined to bottom section. |
|
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|
|

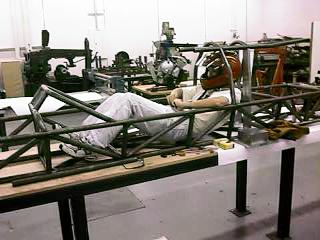

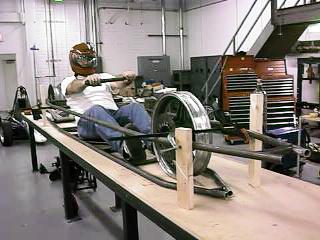

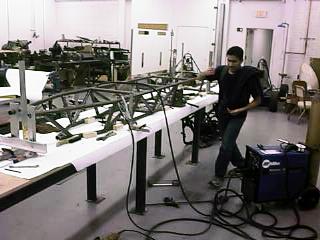

Basic frame setup with mock up of wheels and driver. (Actual driver will be quite a bit smaller)
|
|
|
A little tight. |
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|

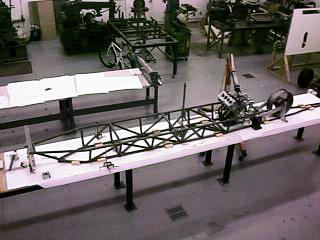

April 21st and both the engine and swing-arm are placed, 10 days into the build process. |
|
|
|
Time to head home after another good day of construction. |
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|
|
Roll cage starting to take shape. |
|
|
|

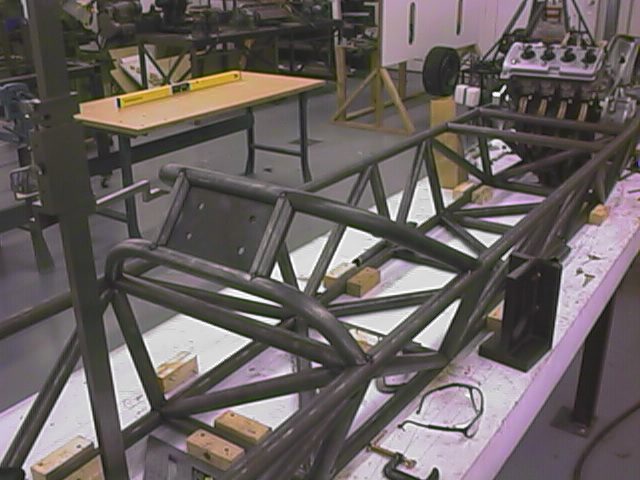

Front-end coming together. |
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|
|
From this... (April 11th) |
|

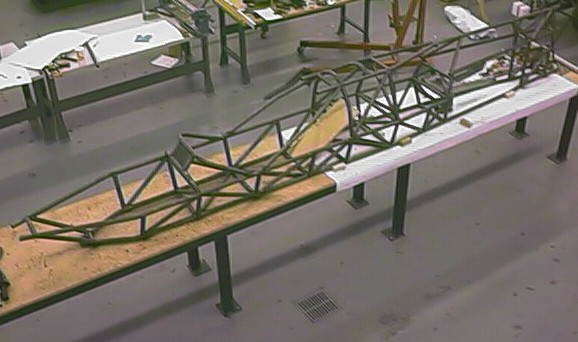

...to this (May 13) in only 33 days. |
|
|
|
|
|
 |
|
|
 |
|
|
|
|

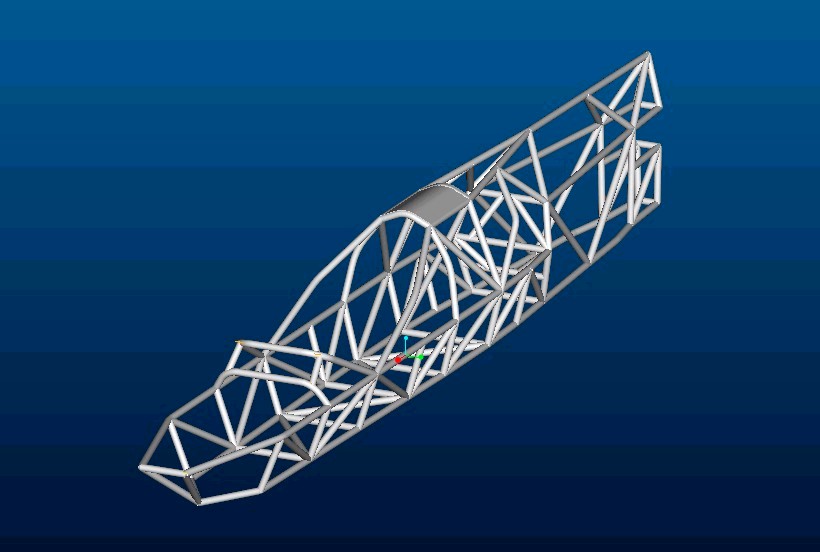

End product should look exactly like this frame modeled and analized by Brian H. |
|
|

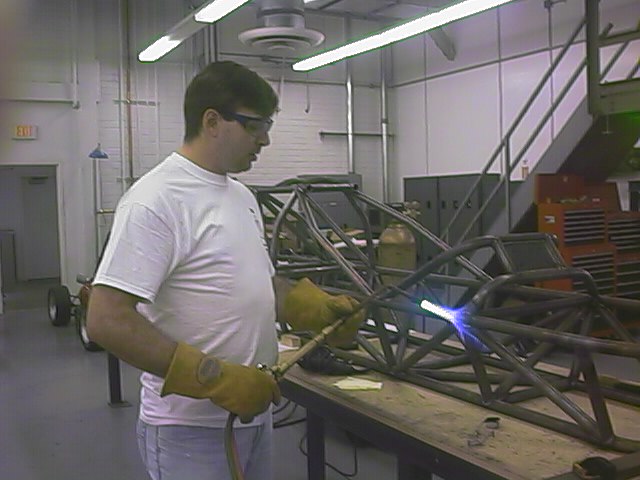

After Mig welding the frame, it needed to be stress relieved. |
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
The engine is now completley mounted with Toru's CNC engine mounts. |
|
|
|

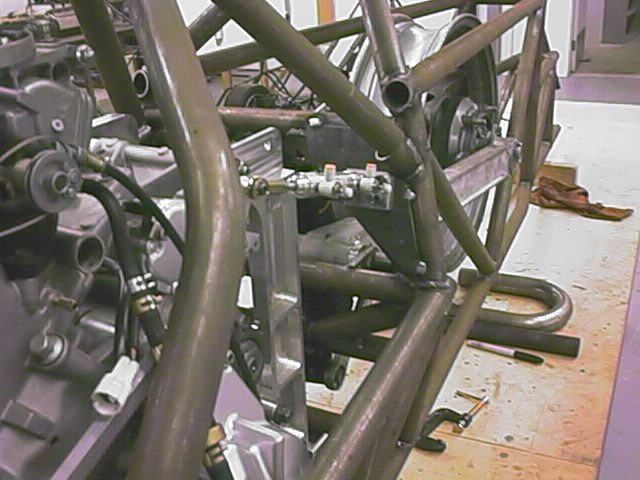

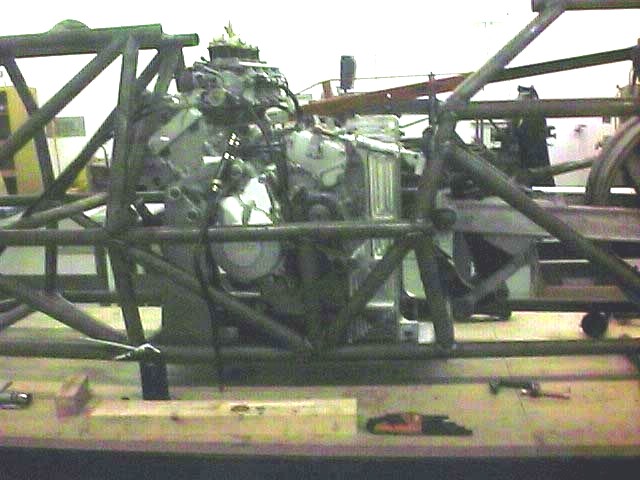

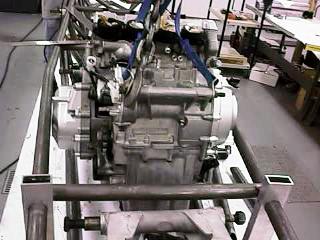

Another view of the engine with Toru's engine mounts and Dave's shifter assembly installed. |
|
|
|
|
|
 |
|
 |
|
|
